Description:
Discover the split-core current transformer, expertly engineered with a primary current capacity of 1000 A and a maximum secondary output of 1 A Boasting a load capacity of 25 VA, this transformer is classified under tolerance class 05, ensuring reliable performance for your indoor applications It adheres to RoHS standards, making it a compliant choice for environmentally-conscious consumers, with no SVHC presence exceeding 0.
1 wt% Ideal for various electrical projects, this current transformer offers both efficiency and compliance.
Features and Benefits:
•Designed for indoor installation.
•Compliant with RoHS regulations.
•No SVHC materials above 0.1 wt%.
Specifications:
| Primary current | 1000 A |
| Secondary current | 0...1 A |
| Load | 2.5 VA |
| Tolerance class | 0.5 |

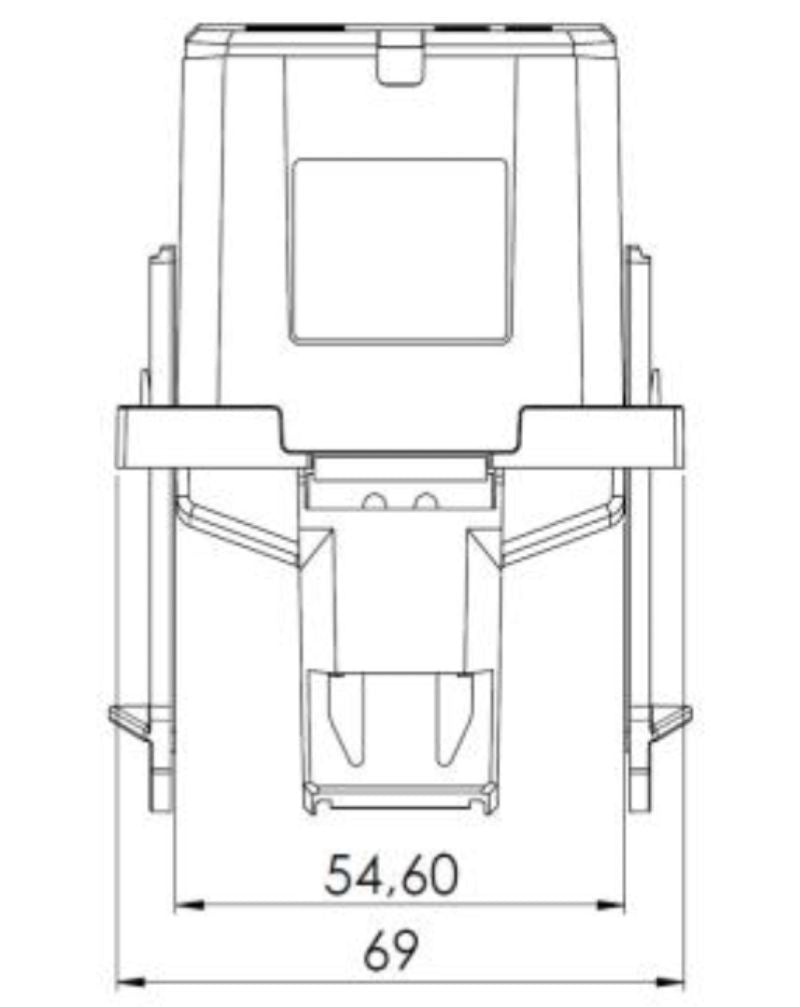

| Depth | 69 mm |

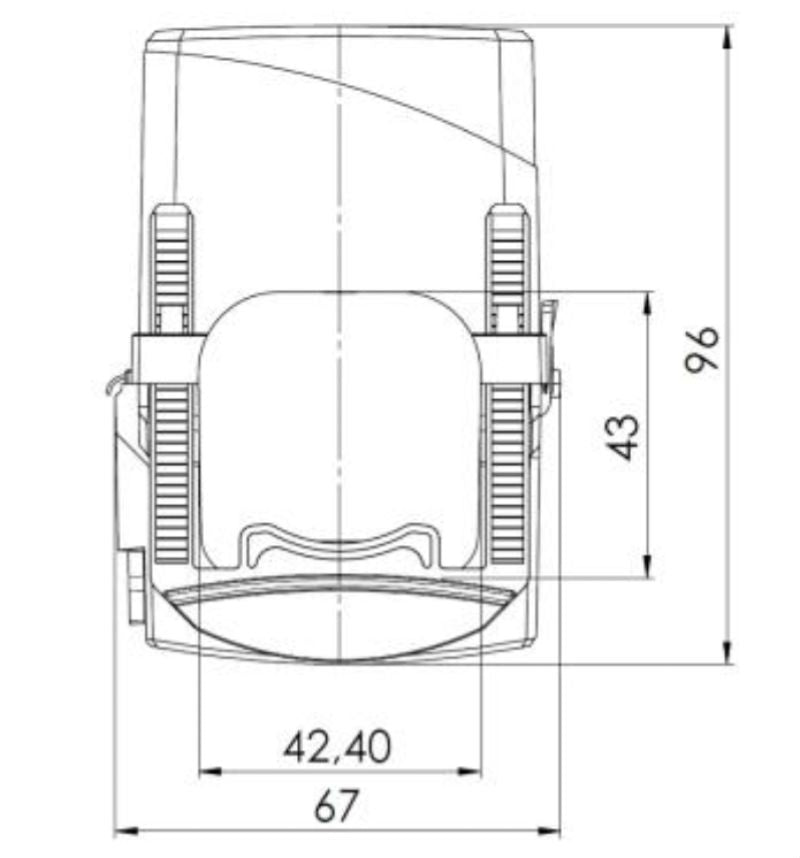

| Height | 96 mm |
| Width | 67 mm |
| Cable length | 0.5 m |
| Protection degree | IP20 |
| Operating temperature | -5 °C...50 °C |
| Type of conductor | Insulated conductor only |
| Round conductor | 42 mm |
