Description:
Introducing the CMA-31-250-5A-5VA-1, a reliable closed current transformer with an impressive primary current capacity of 250 A and a secondary current output of 5 A This model is engineered with a load rating of 5 VA and boasts a tolerance class of 1, ensuring accuracy and performance Compliant with RoHS standards, this transformer is specifically designed for indoor applications, providing durability and safety for your electrical systems.
Features and Benefits:
•Compliant with RoHS standards.
•Designed for indoor use.
Specifications:
| Primary current | 250 A |
| Secondary current | 0...5 A |
| Load | 5 VA |
| Tolerance class | 1 |

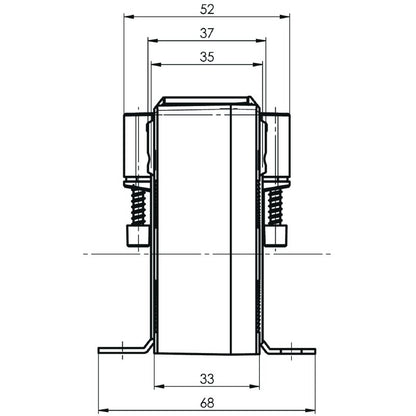

| Depth | 52 mm |

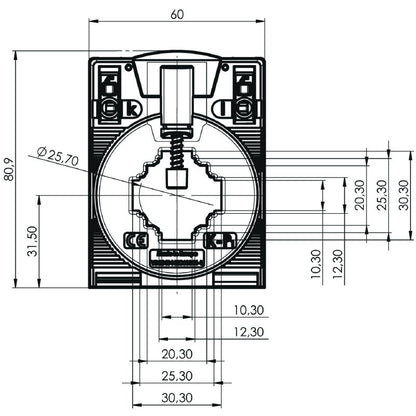

| Height | 80.9 mm |
| Width | 60 mm |
| Storage temperature | -25 °C...70 °C |
| Operating temperature | -5 °C...50 °C |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Insulation coordination | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| ETIM 6.0 | EC002048 |
| ETIM 7.0 | EC002048 |
| ETIM 8.0 | EC002048 |
| ETIM 9.0 | EC002048 |
| ETIM 10.0 | EC002048 |
| ECLASS 9.0 | 27-21-09-02 |
| ECLASS 9.1 | 27-21-09-02 |
| ECLASS 10.0 | 27-21-09-02 |
| ECLASS 11.0 | 27-21-09-02 |
| ECLASS 12.0 | 27-21-09-02 |
| ECLASS 13.0 | 27-21-09-02 |
| ECLASS 14.0 | 27-21-09-02 |
| ECLASS 15.0 | 27-21-09-02 |
