Description:

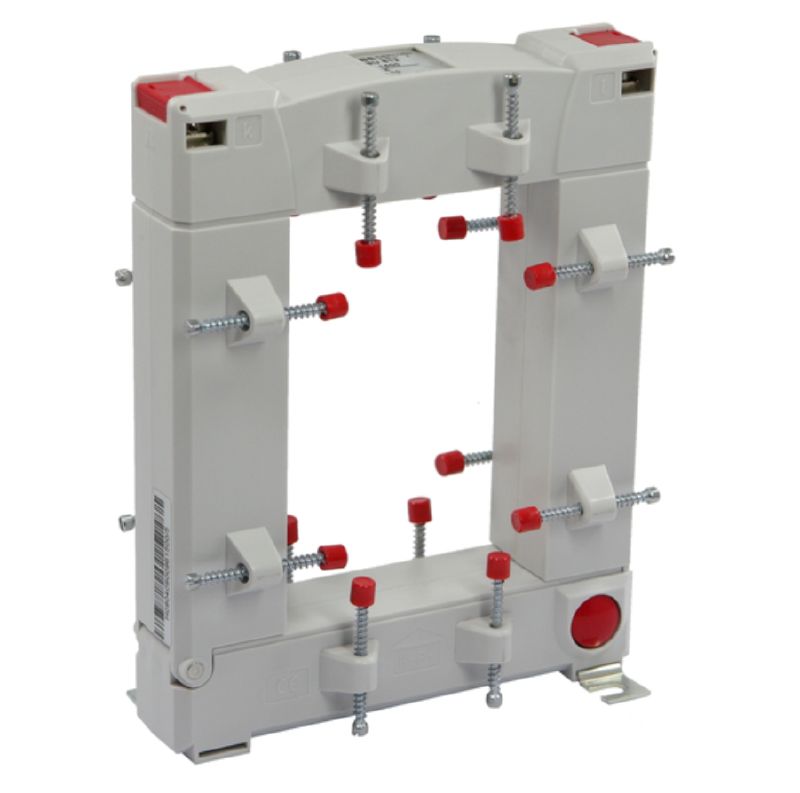

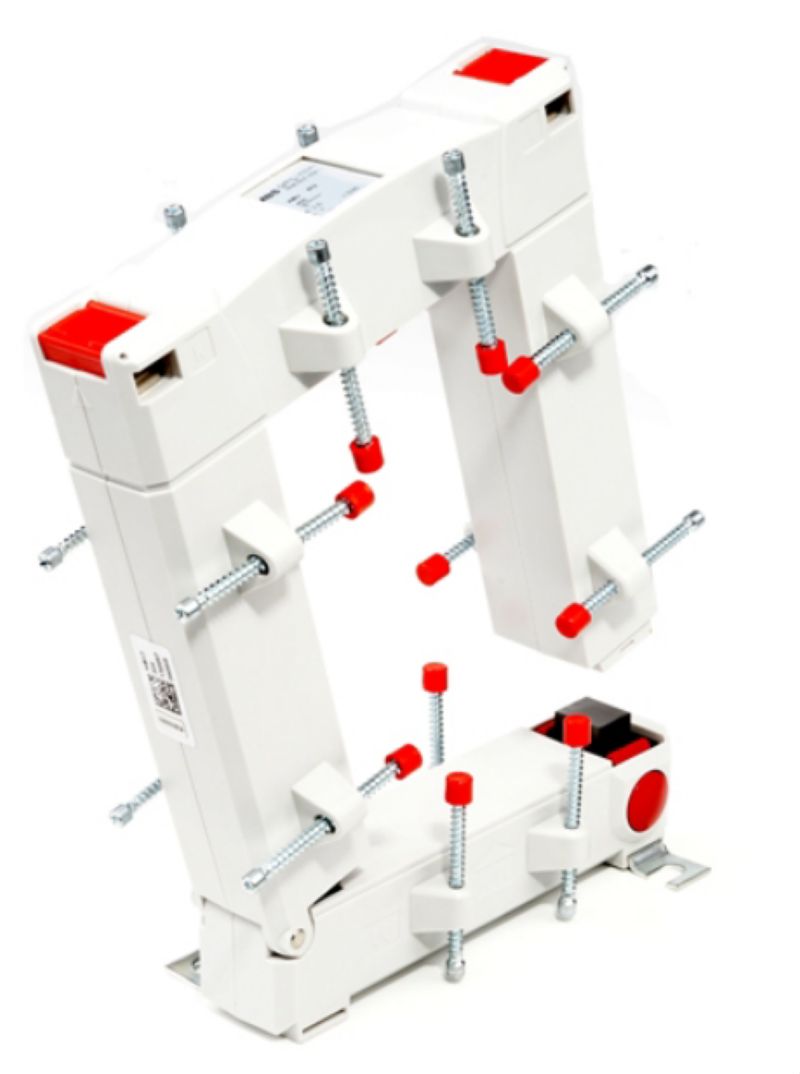

Introducing the KCMA-8-500-5A-5VA1 split-core current transformer, a versatile solution for a range of applications With the capability to manage a primary current of 500 A and a secondary current reaching up to 5 A, this transformer is also equipped to handle a load of 5 VA Meeting Tolerance class 1 standards, it assures accuracy in performance and is compliant with RoHS regulations, making it an eco-friendly choice for your electrical needs.
Features and Benefits:
•Compliant with RoHS without exemption.
•Indoor use installation location.
•Insulated conductor type only.
Specifications:
| Primary current | 500 A |
| Secondary current max. | 5 A |
| Load | 5 VA |
| Tolerance class | 1 |

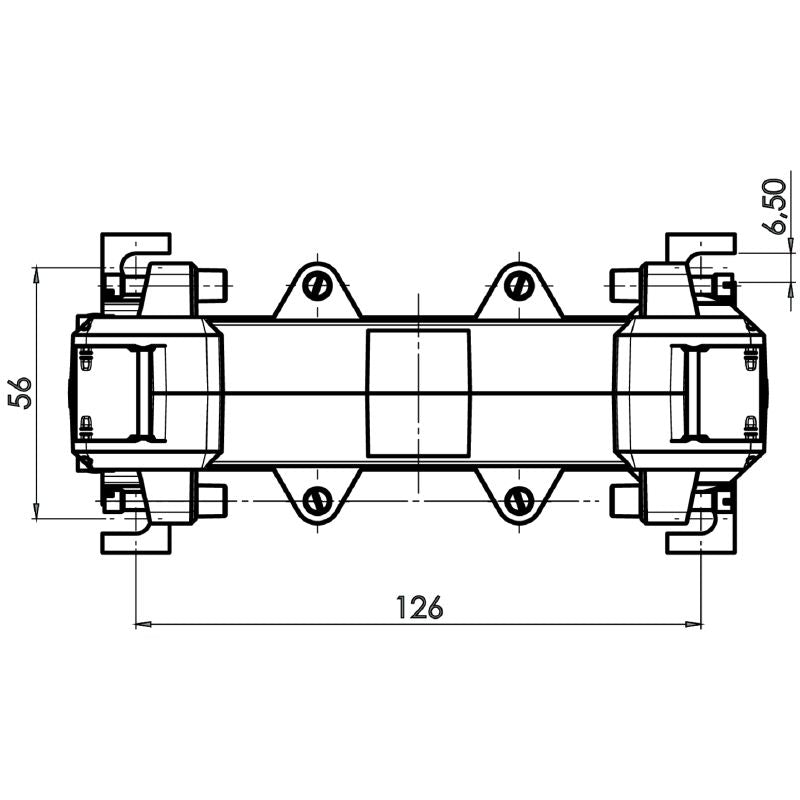

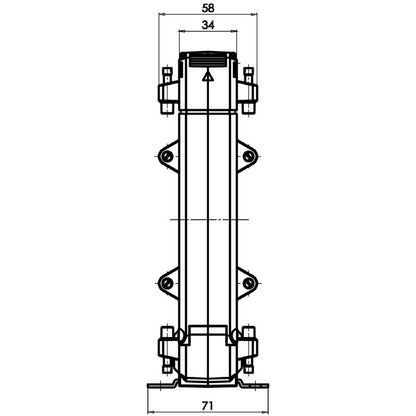

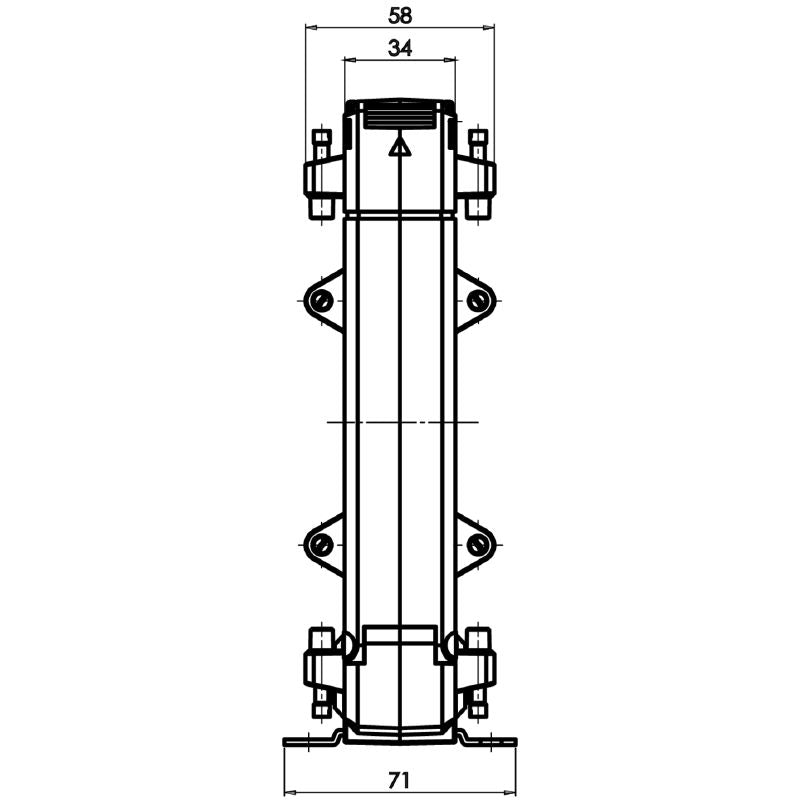

| Depth | 58 mm |

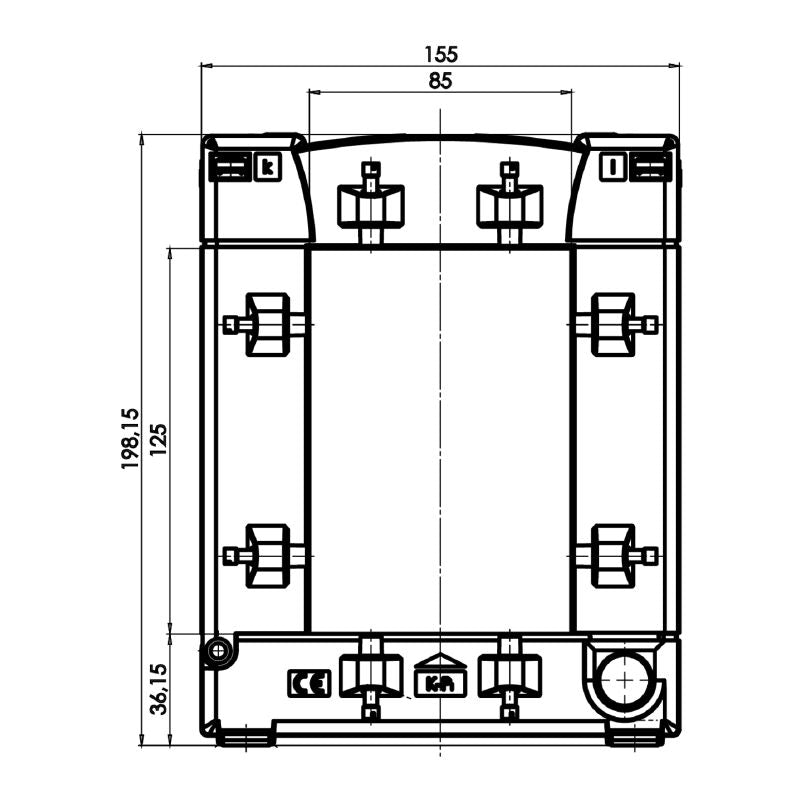

| Height | 198 mm |
| Width | 155 mm |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Thermal rated continuous current | 1.2 x I rated |
| Insulation coordination | Standard EN 60044/1 |
| GTIN (EAN) | 4050118810714 |
