2680160000 - Indoor Closed Current Transformer, 1250A Primary, 5VA Load Capacity
2680160000 - Indoor Closed Current Transformer, 1250A Primary, 5VA Load Capacity
SKU: SKU: 2680160000 Download PDF
- 2680160000 - Indoor Closed Current Transformer, 1250A Primary, 5VA Load Capacity
- 2680160000 - Indoor Closed Current Transformer, 1250A Primary, 5VA Load Capacity
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

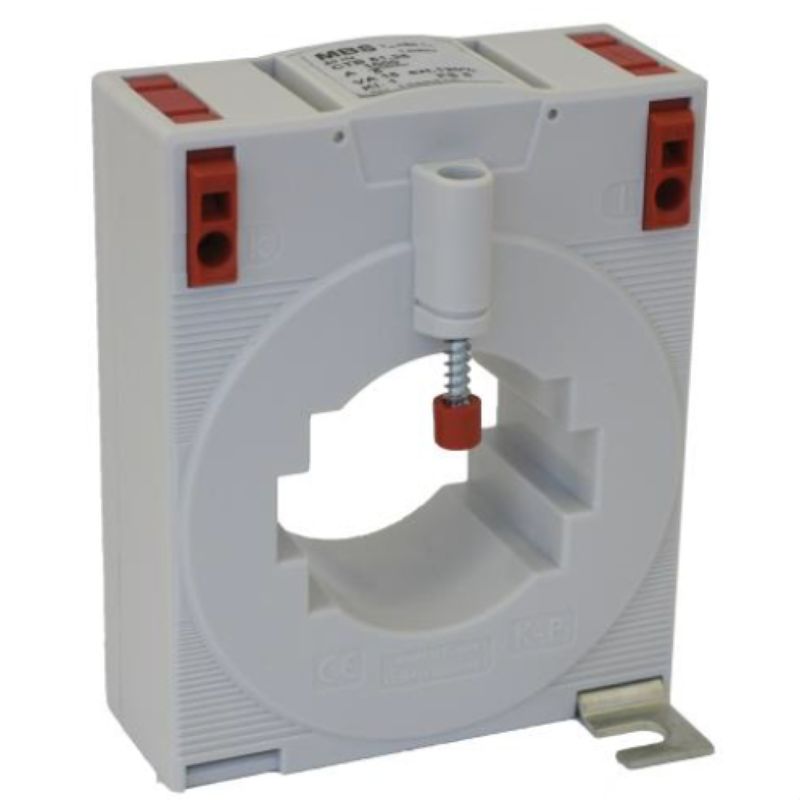

Introducing the CMA-51-1250-5A-5VA-1 closed current transformer, designed for efficient performance with a primary current rating of 1250 A and a maximum secondary current of 5 A This device offers a load capacity of 5 VA and is classified within tolerance class 1, ensuring reliable operation Crafted for indoor environments, it meets RoHS compliance standards, making it a safe and environmentally-friendly choice for your electrical needs.
Features and Benefits:
•Closed current transformer.
•RoHS Compliant.
•Designed for indoor use.
Specifications:
| Order No. | 2680160000 |
| GTIN (EAN) | 4050118696509 |
| Primary current | 1250 A |
| Secondary current max. | 5 A |
| Load | 5 VA |
| Tolerance class | 1 |
| Nominal frequency | 50 Hz |
| Thermal rated continuous current I thermal | 1.2 x I rated |
| Insulation coordination Standard | IEC 61869-1: 2007, IEC 61869-2: 2012 |

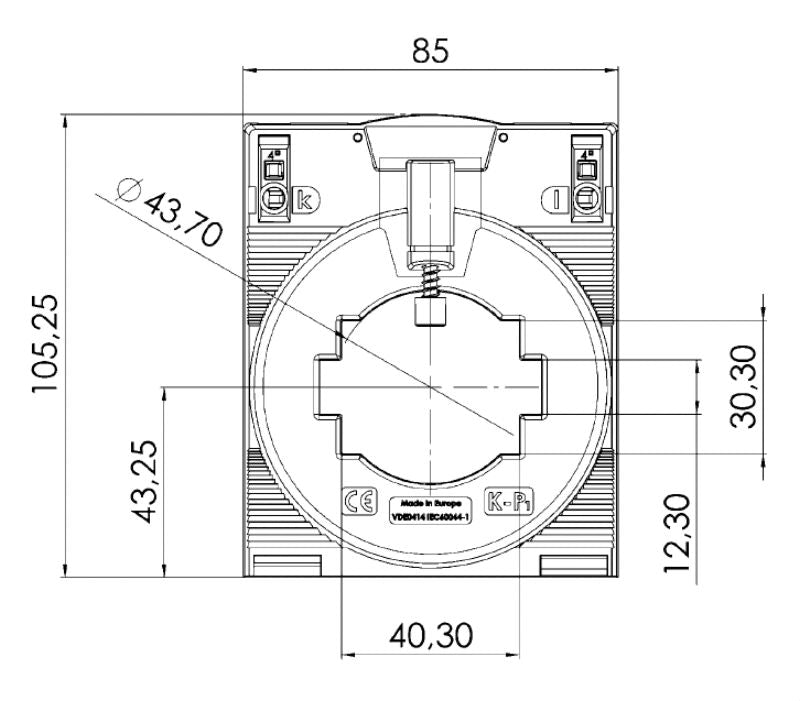

| Dimensions of live conductors | Round conductor 43 mm, Rail 40 x 30 mm, 50 x 12 mm |
