2753050000 - 250A Split-Core Current Transformer, 5A, 0.5 Class
2753050000 - 250A Split-Core Current Transformer, 5A, 0.5 Class
SKU: SKU: 2753050000 Download PDF
- 2753050000 - 250A Split-Core Current Transformer, 5A, 0.5 Class
- 2753050000 - 250A Split-Core Current Transformer, 5A, 0.5 Class
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

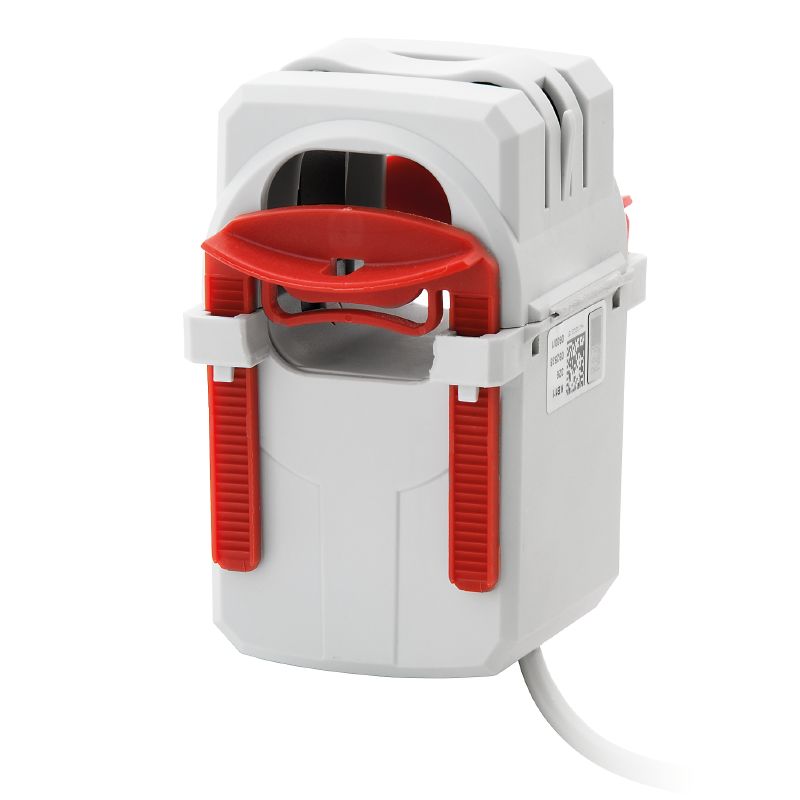

Experience reliable precision with our split-core current transformer, expertly crafted for accurate measurements It handles a primary current of 250 A, delivering a secondary current of up to 5 A with a power load of 1 VA This model adheres to a tolerance class of 05, ensuring optimal performance Designed specifically for indoor applications, it also meets RoHS compliance standards without any exceptions, making it a safe and efficient choice for your measurement needs.
Features and Benefits:
•Complies with RoHS and does not contain any SVHC above 0.1 wt%.
•Designed for indoor installation.
•Suitable for insulated conductors only.
Specifications:
| Order No. | 2753050000 |
| Primary current | 250 A |
| Secondary current | 0...5 A |
| Load | 1 VA |
| Tolerance class | 0,5 |

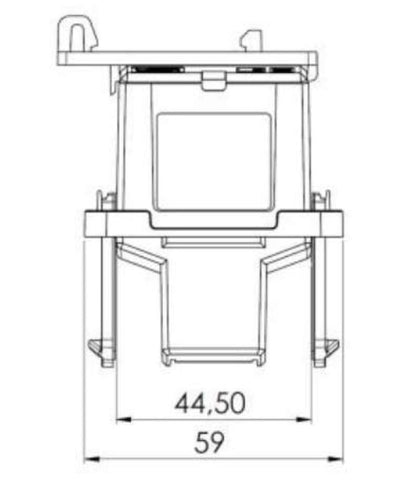

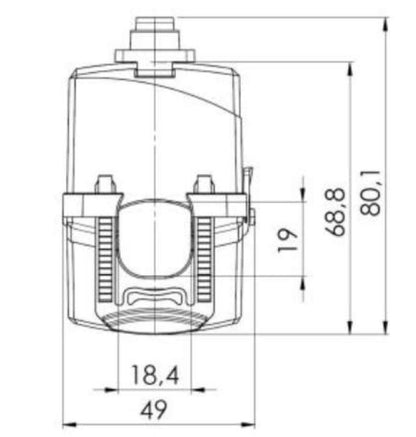

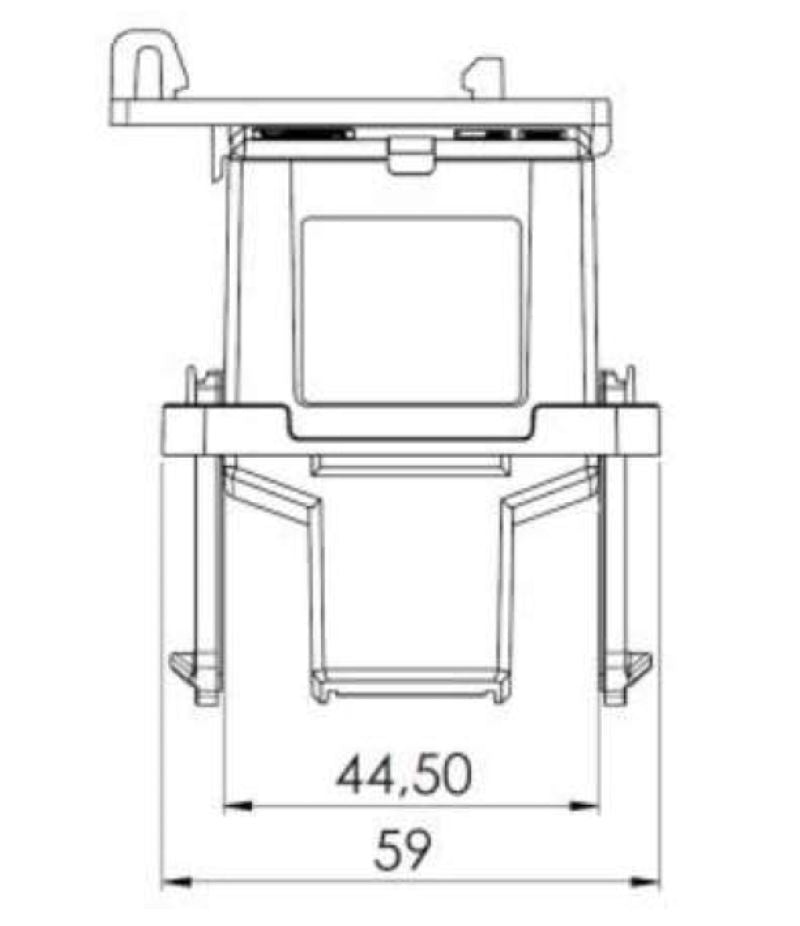

| Dimensions | {'Depth': '59 mm', 'Height': '80.1 mm', 'Width': '49 mm', 'Cable length': '0.5 m'} |
| Operating temperature | -5 °C...50 °C |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Environmental Compliance | RoHS Compliant without exemption |
| General data | {'Manufacturer': 'MBS AG'} |
