Description:

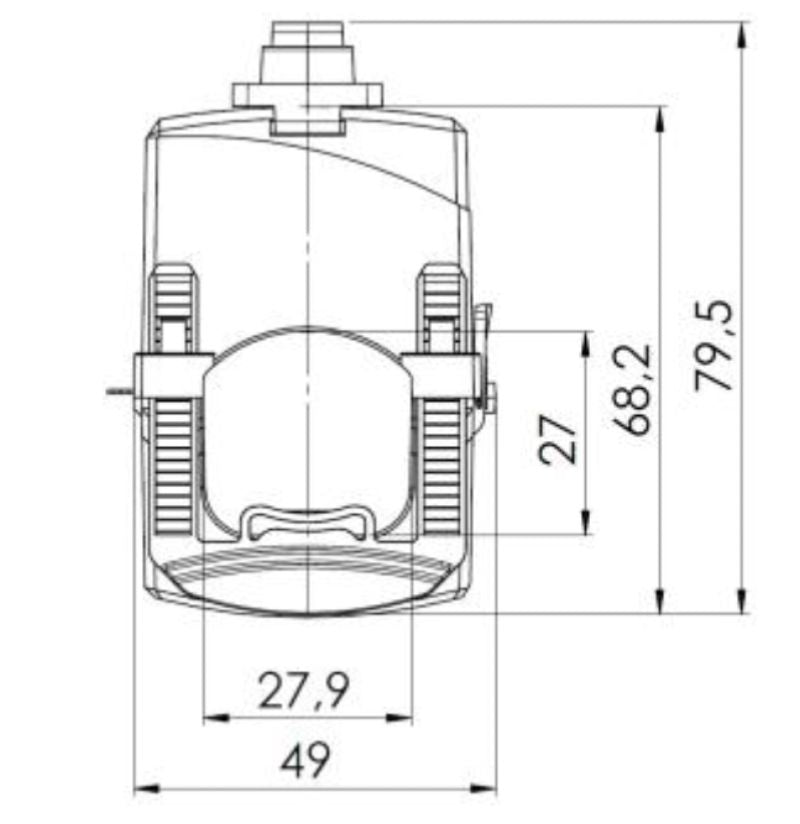

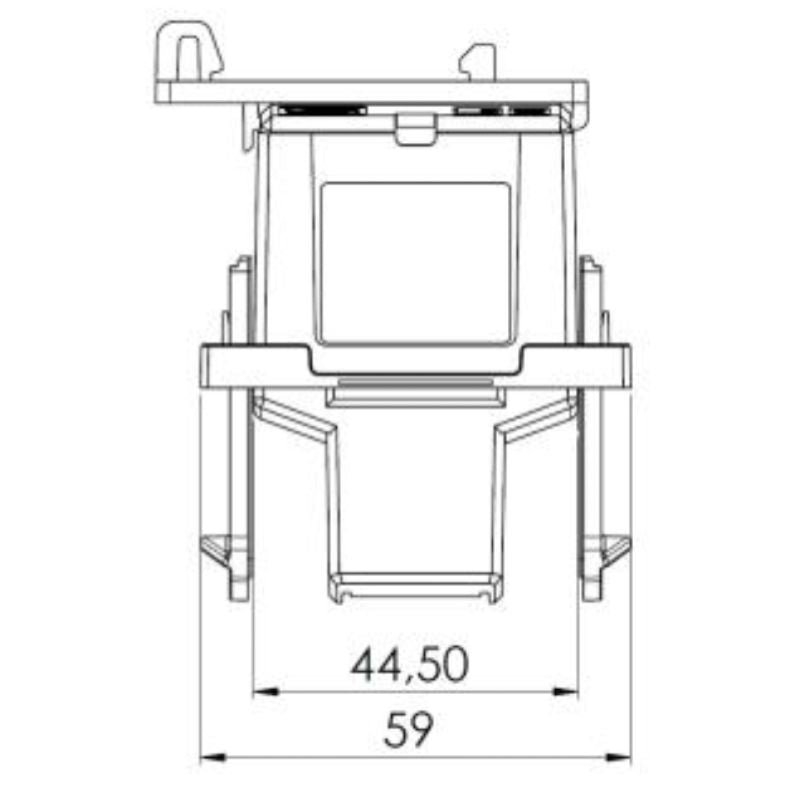

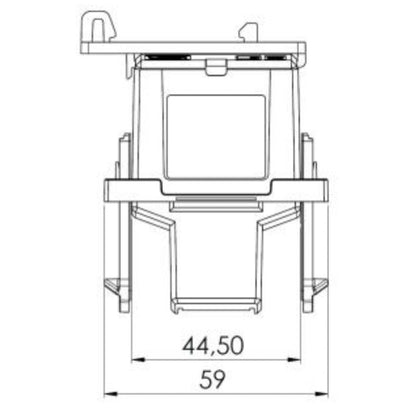

Presenting the KCMA-28-250-1A-1VA-1 split-core current transformer, specifically engineered for indoor use This robust device supports a primary current of 250 A and delivers a secondary current of 1 A with a load capacity of 1 VA It falls under Tolerance Class 1 and fully adheres to RoHS regulations with no exemptions The transformer has compact dimensions measuring 59 mm deep, 795 mm high, and 49 mm wide (equivalent to 2.
323 inches, 313 inches, and 1929 inches) Weighing 266 g, it functions effectively within a temperature range of -5 °C to 50 °C, making it a reliable choice for various applications.
Features and Benefits:
•RoHS compliant without exemption.
•Designed for indoor use.
•Insulation coordination falls under tolerance class 1.
Specifications:
| Order No. | 2753070000 |
| GTIN (EAN) | 4050118896848 |
| Depth | 59 mm (2.323 inch) |
| Height | 79.5 mm (3.13 inch) |
| Width | 49 mm (1.929 inch) |
| Operating temperature | -5 °C to 50 °C |
| Load | 1 VA |
| Primary current | 250 A |
| Secondary current | 0...1 A |
| Tolerance class | 1 |
| Cable length | 2.5 m |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
