2680210000 - 1000A Closed Current Transformer for Indoor Use
2680210000 - 1000A Closed Current Transformer for Indoor Use
SKU: SKU: 2680210000 Download PDF
- 2680210000 - 1000A Closed Current Transformer for Indoor Use
- 2680210000 - 1000A Closed Current Transformer for Indoor Use
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the CMA-41-1000-5A-5VA-05, a versatile closed current transformer engineered for high performance With a primary current capacity of 1000 A and capable of delivering a maximum secondary current output of 5 A, this transformer meets the stringent RoHS compliance standards It is intended for indoor use and should only be utilized with insulated conductors that have a round diameter of 31 mm.
This model accommodates fitting rails of dimensions 30 x 15 mm and 40 x 10 mm Operating at a nominal frequency of 50 Hz, it offers a protection degree of IP20, ensuring safety and reliability in your electrical applications.
Features and Benefits:
•RoHS compliant.
•Indoor use.
•Designed for insulated conductors only.
•Nominal frequency of 50 Hz.
•Protection degree of IP20.
Specifications:
| Primary current | 1,000 A |
| Secondary current | 0...5 A |
| Order No. | 2680210000 |
| GTIN (EAN) | 4050118696547 |
| Thermal rated continuous current I thermal | 1.2 x I rated |

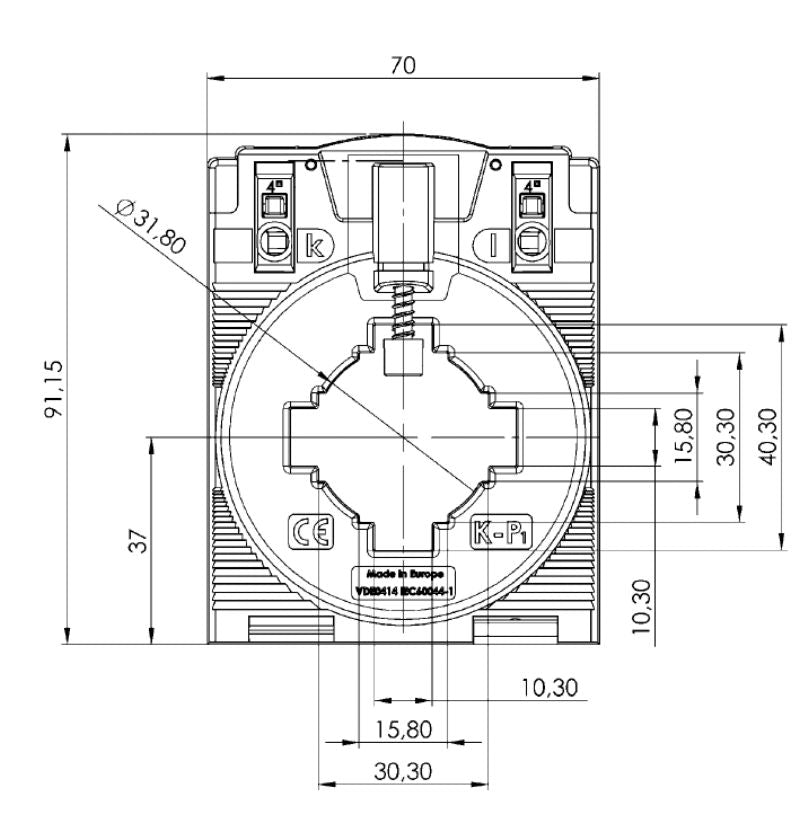

| Dimensions of live conductors | Round conductor 31 mm |
| Rail dimensions | 30 x 15 mm, 40 x 10 mm |
| Environmental Product Compliance | RoHS Compliance Status: Compliant, REACH SVHC: No SVHC above 0.1 wt% |
