2753120000 - Split-Core Current Transformer, 300A, 5A Output, 59mm Depth
2753120000 - Split-Core Current Transformer, 300A, 5A Output, 59mm Depth
SKU: SKU: 2753120000 Download PDF
- 2753120000 - Split-Core Current Transformer, 300A, 5A Output, 59mm Depth
- 2753120000 - Split-Core Current Transformer, 300A, 5A Output, 59mm Depth
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a high-performance split-core current transformer crafted for precise current measurement With a primary rating of 300 A and a secondary output capacity of up to 5 A, this device is ideal for various applications It supports a maximum load of 15 VA and is classified within a tolerance class of 1 for reliable accuracy Compliance with RoHS standards makes it a safe choice for indoor environments.

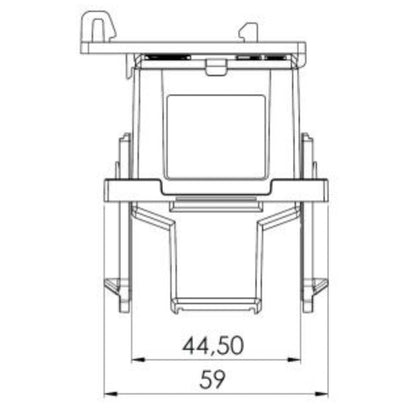

Its compact design features approximate dimensions of 59 mm in depth, 795 mm in height, and 49 mm in width, ensuring easy installation and use.
Features and Benefits:
•RoHS compliant.
•Designed for indoor application.
•IP20 protection degree.
•Insulation coordination tolerance class 1.
Specifications:
| Primary current | 300 A |
| Secondary current | 0...5 A |
| Load | 1.5 VA |
| Tolerance class | 1 |
| Cable length | 0.5 m |
| Nominal frequency | 50 Hz |

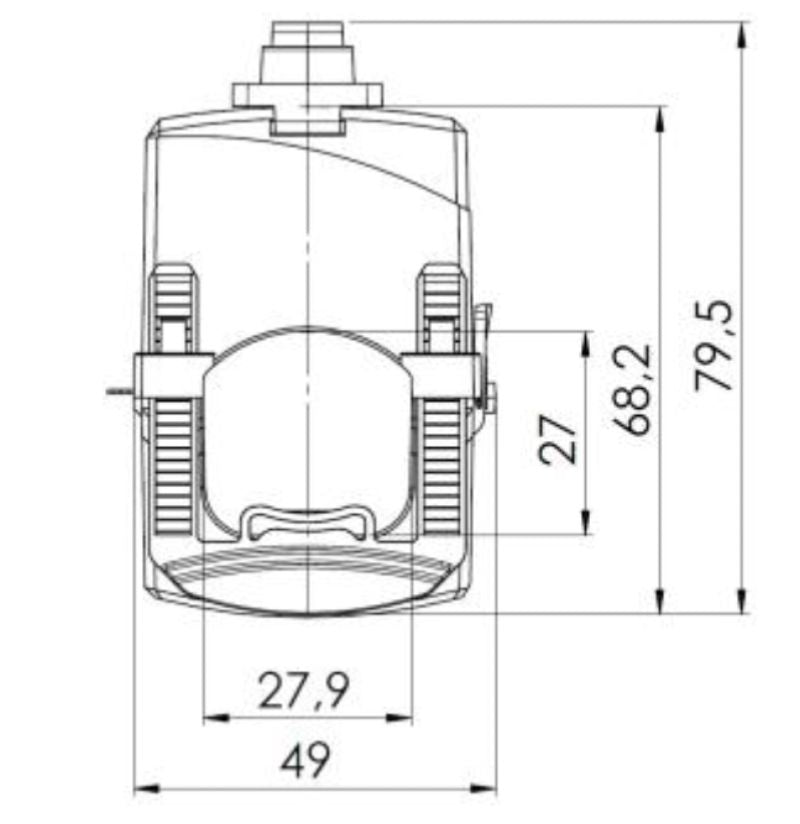

| Depth | 59 mm |
| Height | 79.5 mm |
| Width | 49 mm |
| Operating temperature | -5 °C...50 °C |
| Installation location | Indoor use |
| Environmental Product Compliance | RoHS Compliant without exemption |
| Reaching SVHC | No SVHC above 0.1 wt% |
