Description:

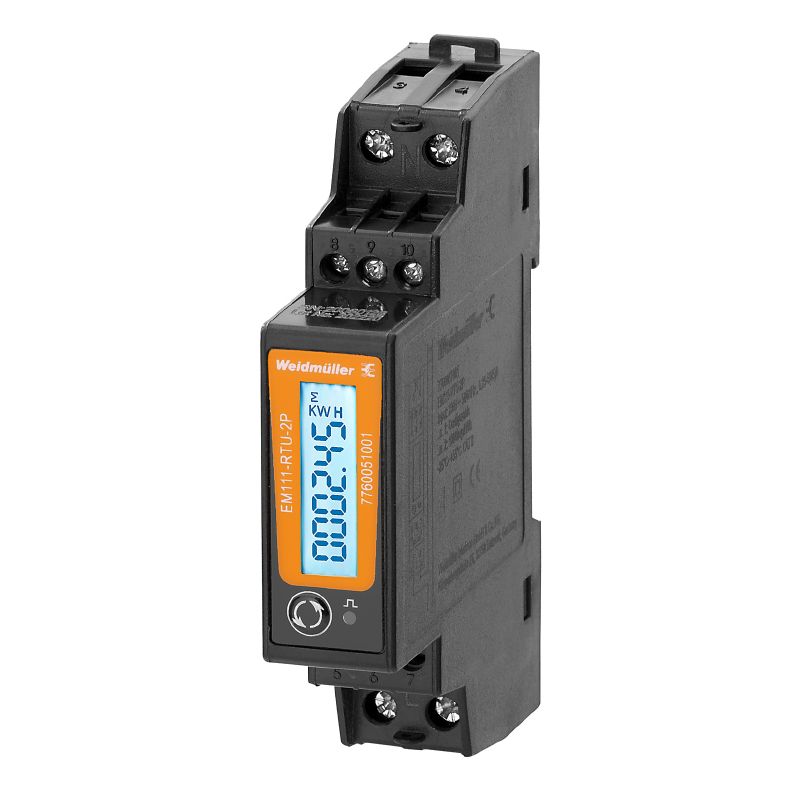

Introducing the EM110-RTU-2P, a reliable solution for power measurement and display tailored for single-phase mains This device utilizes a current transformer (CT) and features pulse output in addition to Modbus RTU communication for seamless integration It is engineered to deliver precise voltage and current readings under various operating conditions, making it an essential tool for accurate monitoring.
Features and Benefits:
•Measures AC input with a maximum current of 5000 A.

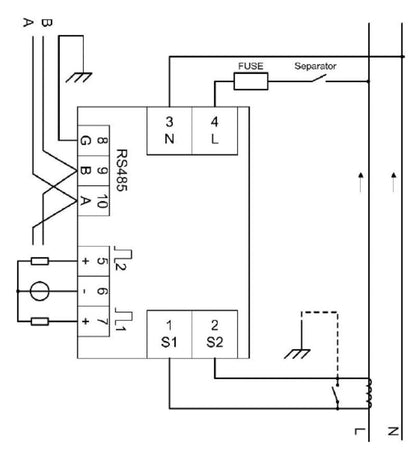

•Bi-directional communication via RS485 interface.
•LCD display for real-time monitoring of voltage, current, and power metrics.
•Compatible with current transformers for flexible current ratings.
•Update interval for measurement data is 100 ms.
•Operates across a temperature range of -25 °C to 55 °C.
Specifications:

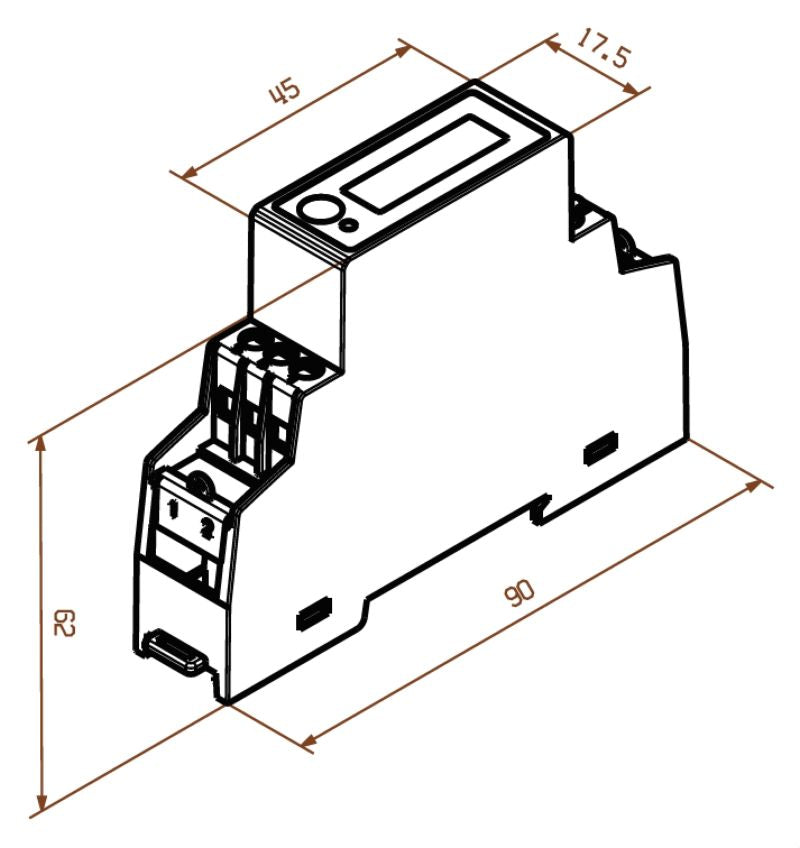

| Depth | 62 mm |
| Height | 90 mm |
| Width | 17.5 mm |
| Operating Temperature | -25 °C to 55 °C |
| Storage Temperature | -40 °C to 70 °C |
| Measuring Accuracy for Current | 0.5 % |
| Measuring Accuracy for Voltage | 0.5 % |
| Surge Voltage Category | II |
| IP Protection Rating | IP51 (front panel), IP20 |
| Wire Cross-Section (solid) | 0.5 mm² to 1.5 mm² |
| Wire Cross-Section (finely stranded) | 0.5 mm² to 2.5 mm² |
| Frequency Range | 50 Hz to 60 Hz |
| Max. Current | 5000 A |
| Rated Current | via current transformer 1 A/5 A |
| Number of Pulse Outputs | 2 |
| Communication Protocol | Modbus RTU |
| Pollution Severity | 2 |
