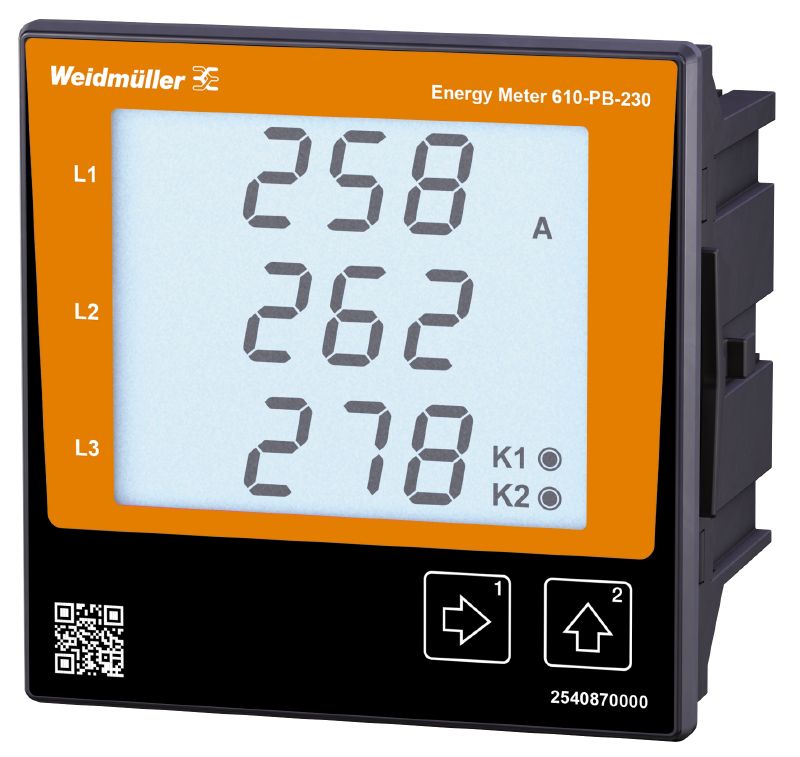

2540870000 - Power Measurement Device for 1-Phase & 3-Phase Systems
2540870000 - Power Measurement Device for 1-Phase & 3-Phase Systems
SKU: SKU: 2540870000 Download PDF
- 2540870000 - Power Measurement Device for 1-Phase & 3-Phase Systems
- 2540870000 - Power Measurement Device for 1-Phase & 3-Phase Systems
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Monitor your power consumption effortlessly with this advanced device, tailored for both 1-phase and 3-phase power systems It provides precise measurement and display of energy usage, making it suitable for various electrical setups Experience accurate tracking and enhanced visibility of your energy consumption with this essential tool.
Features and Benefits:
•CE certified.
•ROHS compliant without exemption.
•Modbus RTU and Profibus DP protocol support.
•LCD display for monitoring.
•Integrated logic for enhanced functionality.
Specifications:

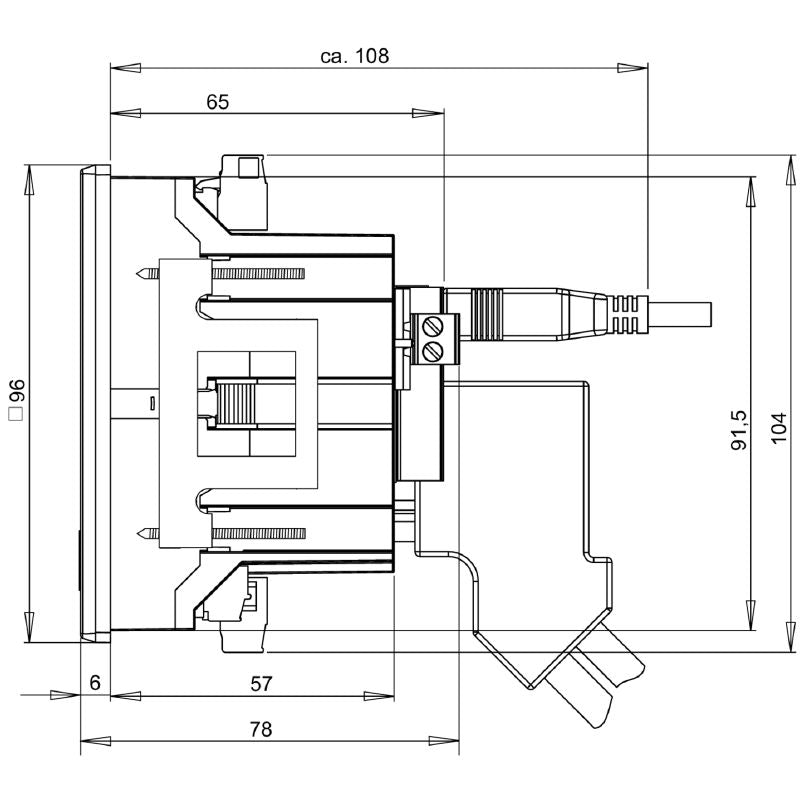

| Depth | 65 mm |
| Height | 96 mm |
| Width | 96 mm |
| Net weight | 250 g |
| Operating temperature | -10 °C to 55 °C |
| Storage temperature | -25 °C to 70 °C |
| Max current | 5000 A |
| Measurement range, voltage L-L, AC | 480 V |
| Measurement range, voltage L-N, AC | 277 V |
| Measuring accuracy for voltage | 0.2 % |
| Measuring accuracy for current | 0.2 % |
| Input communication interface | RS485, Profibus DP, USB |
| Memory size | 256 MB |
| Number of memory values | 10,000 k |
| Protection degree | IP40, IP20 |
| Power supply voltage | 90 - 277 V AC, 90 - 250 V DC |
| Display type | LCD |
| Sampling frequency | 25.6 kHz |
| Measurement accuracy for active energy | Class 0.5S |
| Number of digital inputs | 4 |
| Number of digital outputs | 6 |
| Number of pulse outputs | 6 |
