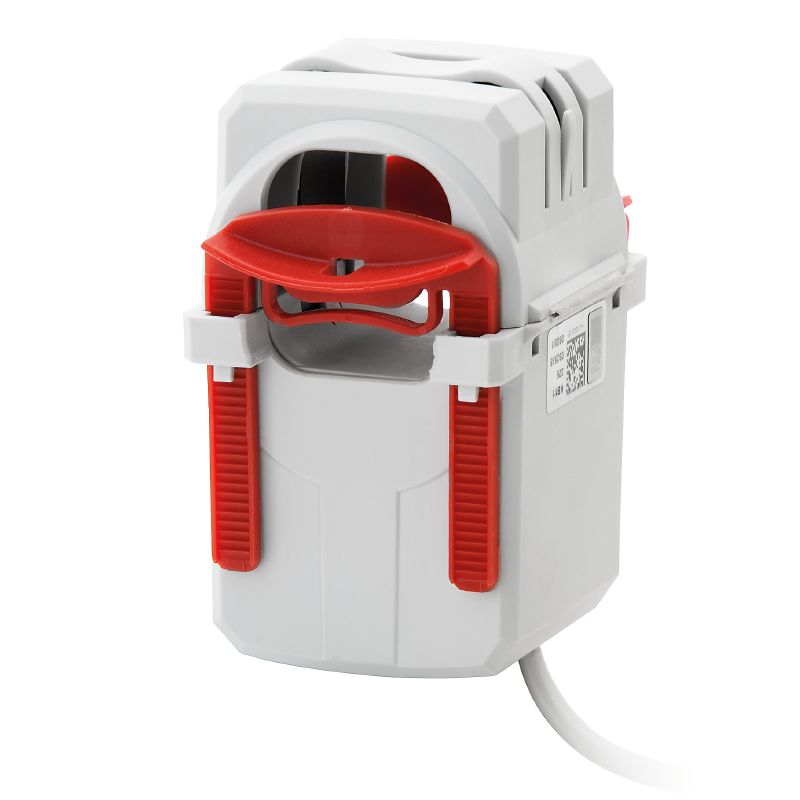

2753110000 - 250A Split-Core Current Transformer, RoHS Compliant, 1 VA
2753110000 - 250A Split-Core Current Transformer, RoHS Compliant, 1 VA
SKU: SKU: 2753110000 Download PDF
- 2753110000 - 250A Split-Core Current Transformer, RoHS Compliant, 1 VA
- 2753110000 - 250A Split-Core Current Transformer, RoHS Compliant, 1 VA
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Maximize your power management with this split-core current transformer, capable of handling a primary current of up to 250 A and a secondary output of 5 A It boasts a load capacity of 1 VA and features a precision tolerance class of 1 Complying with RoHS standards, this transformer guarantees environmental safety without any exceptions, making it a reliable choice for various applications.
Features and Benefits:
•Compliant with RoHS without exemptions.
•Designed for indoor use.
•Insulated conductor type only.
•Central round conductor diameter of 27 mm.
•Operating temperature range of -5 °C to 50 °C.
•Protection degree rated at IP20.
•Nominal frequency set at 50 Hz.
Specifications:
| Primary current | 250 A |
| Secondary current | 0...5 A |
| Load | 1 VA |
| Tolerance class | 1 |
| Cable length | 2.5 m |

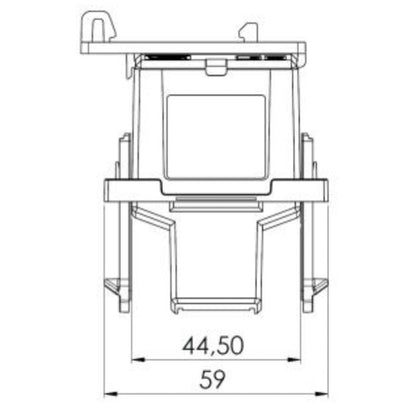

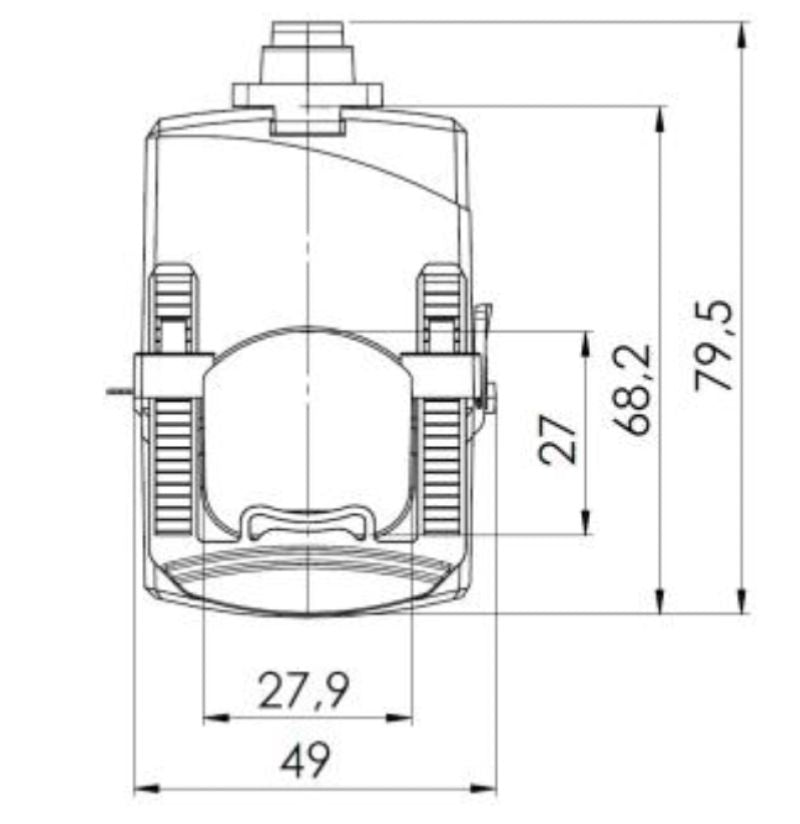

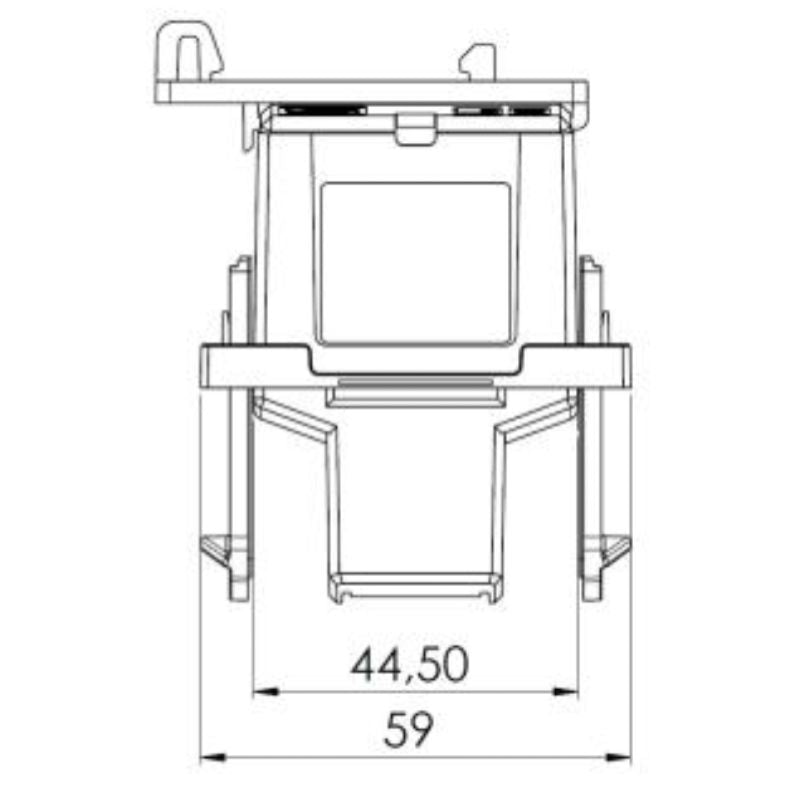

| Dimensions | {'Depth': '59 mm', 'Height': '79.5 mm', 'Width': '49 mm'} |
| General data | {'Manufacturer': 'MBS AG', 'Order No.': '2753110000', 'GTIN (EAN)': '4050118896756'} |
