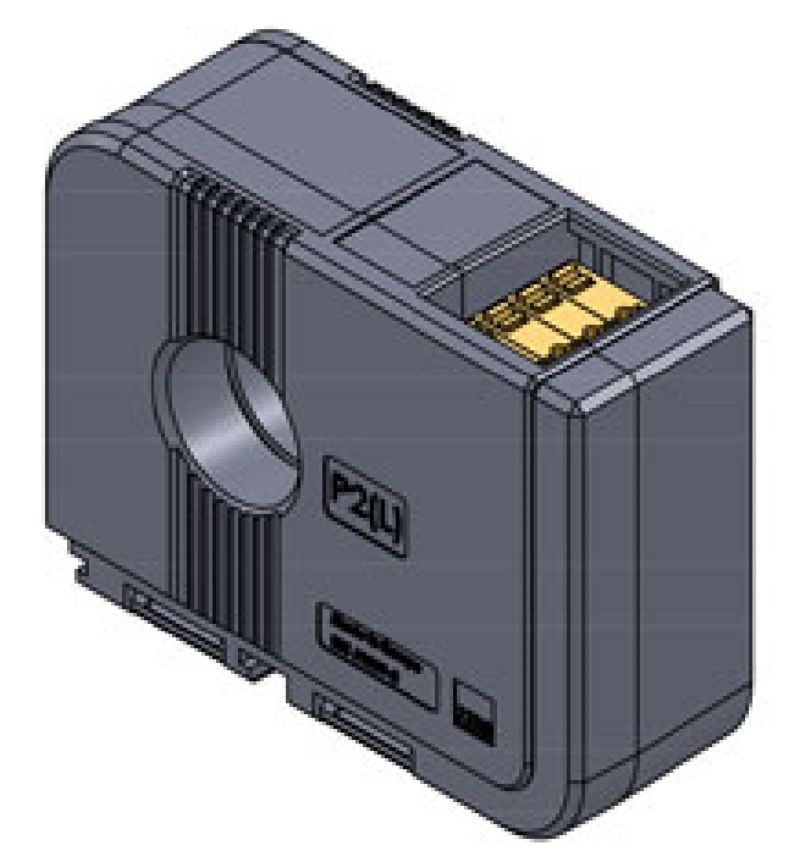

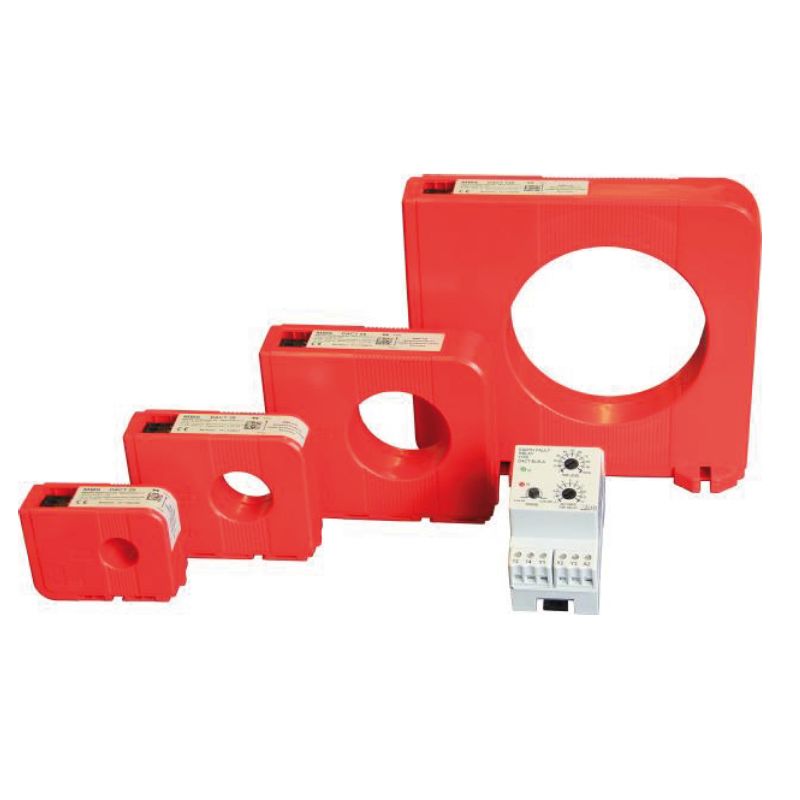

2603420000 - 25A Closed Current Transformer for 20mm Insulated Conductors
2603420000 - 25A Closed Current Transformer for 20mm Insulated Conductors
SKU: SKU: 2603420000 Download PDF
- 2603420000 - 25A Closed Current Transformer for 20mm Insulated Conductors
- 2603420000 - 25A Closed Current Transformer for 20mm Insulated Conductors
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

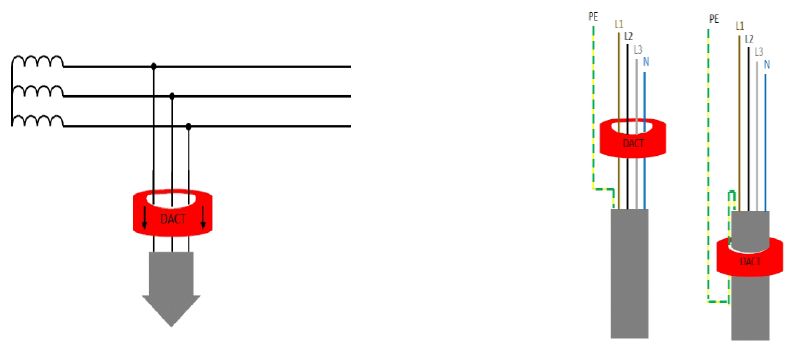

Introducing the CMA-RCM-DACT-20, a robust closed current transformer that accurately gauges residual current with a primary rating of 25 A Designed specifically for insulated round conductors with a diameter of 2000 mm, this device adheres to RoHS standards, ensuring it's safe for indoor applications With compact dimensions of 82 mm wide, 63 mm high, and 30 mm deep, it weighs a mere 16456 grams This transformer operates efficiently in a temperature range of -10 °C to 70 °C and can be stored safely from -25 °C to 70 °C, making it a versatile choice for various environments.
Features and Benefits:
•Operates at a frequency band of 30 Hz to 3 kHz.
•Resistance of the coil is 8 Ω.
•Measurement accuracy is classified as Class 1 according to IEC 6206-21.
•Protection rating of IP40, suitable for indoor use.
•Galvanic isolation ensures electrical safety.
Specifications:
| Primary current: | 25 A |
| Secondary current: | 0...0.04 A |
| Tolerance class: | 1 |
| Transmission ratio: | 1:600 |
| Insulation coordination: | Galvanic isolation yes |
| Impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Rated voltage: | 800 V |

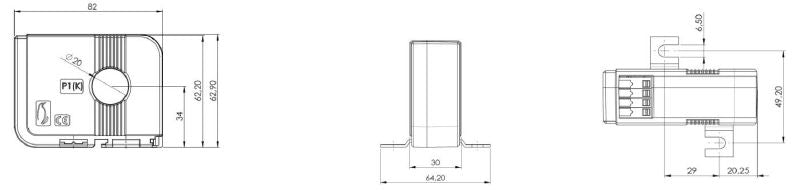

| Dimensions - Depth: | 30 mm (1.181 inch) |
| Dimensions - Height: | 63 mm (2.48 inch) |
| Dimensions - Width: | 82 mm (3.228 inch) |
| Storage temperature: | -25 °C...70 °C |
| Operating temperature: | -10 °C...70 °C |
| Load: | 0 VA |
| Input measurement range: | 0.02…2 A / 0.25…25 A depending on terminal assignment |
| Standard: | EN 60044/1 |
| Manufacturer: | MBS AG |
| RoHS Compliance Status: | Compliant |
| REACH SVHC: | No SVHC above 0.1 wt% |
