2753180000 - 500A Split-Core Current Transformer, RoHS Compliant, 2.5 VA
2753180000 - 500A Split-Core Current Transformer, RoHS Compliant, 2.5 VA
SKU: SKU: 2753180000 Download PDF
- 2753180000 - 500A Split-Core Current Transformer, RoHS Compliant, 2.5 VA
- 2753180000 - 500A Split-Core Current Transformer, RoHS Compliant, 2.5 VA
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the KCMA-42-500-1A-25VA-05 split-core current transformer, engineered for accurate performance It boasts a primary current capacity of 500 A, with a maximum secondary output of 1 A, making it ideal for various applications This model offers a power rating of 25 VA and is classified under tolerance class 05, ensuring reliable measurement The device adheres to RoHS standards, confirming its compliance with environmental regulations.
Designed for indoor use, it features specific dimensions tailored for easy installation.
Features and Benefits:
•Compliant with RoHS and REACH environmental standards.
•Suitable for indoor use only.
•Protected to IP20 standard.
Specifications:
| Primary current | 500 A |
| Secondary current max | 1 A |
| Load | 2.5 VA |
| Tolerance class | 0.5 |

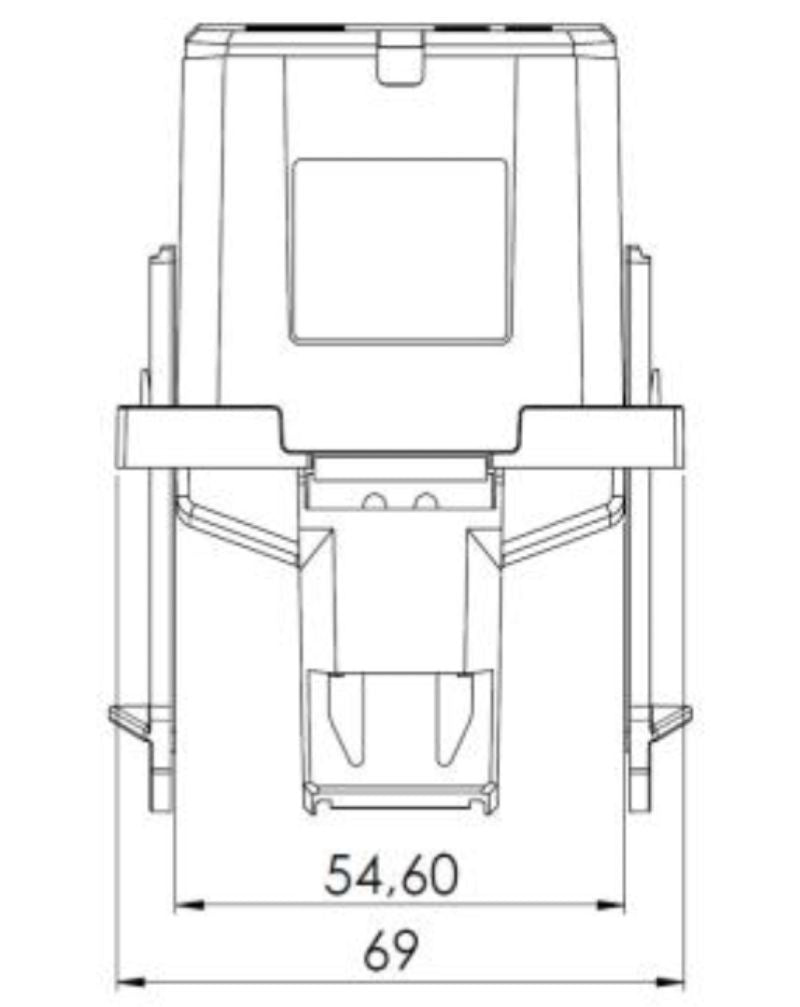

| Depth | 69 mm |

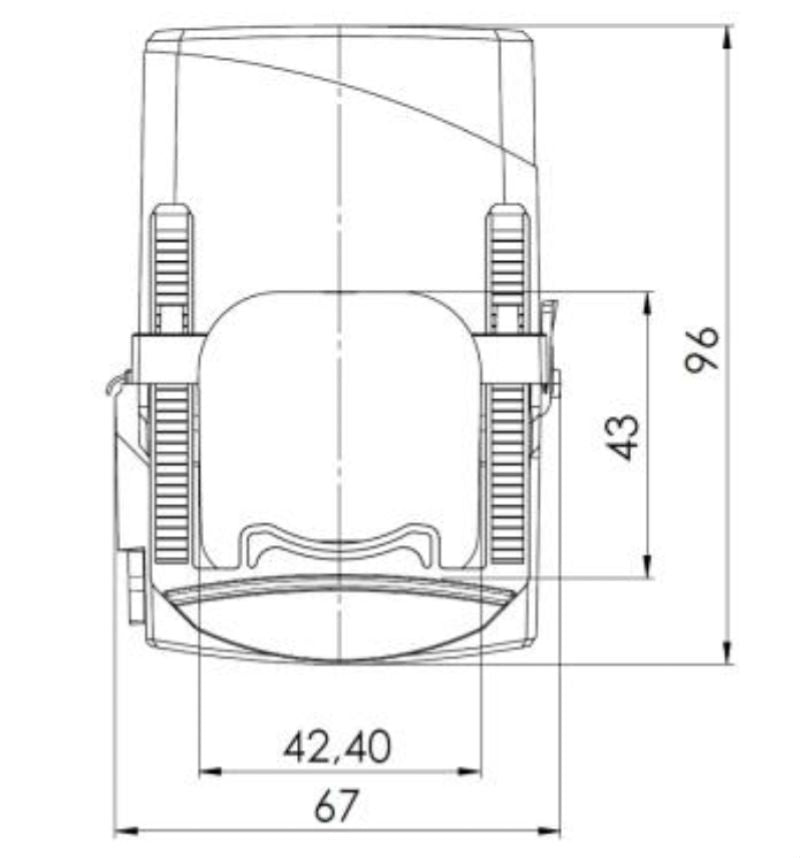

| Height | 96 mm |
| Width | 67 mm |
| Cable length | 0.5 m |
| Operating temperature | -5 °C...50 °C |
| Protection degree | IP20 |
