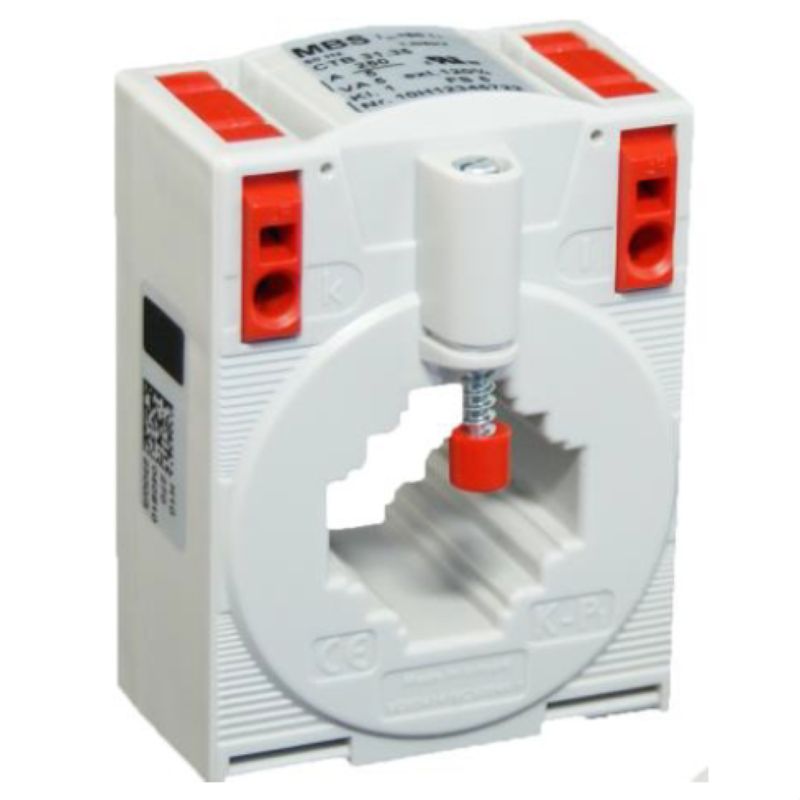

CMA-31-125-5A-2,5VA-0,5 - 125A Closed Current Transformer, RoHS Compliant, 2.5 VA
CMA-31-125-5A-2,5VA-0,5 - 125A Closed Current Transformer, RoHS Compliant, 2.5 VA
SKU: SKU: 2680200000 Download PDF
- CMA-31-125-5A-2,5VA-0,5 - 125A Closed Current Transformer, RoHS Compliant, 2.5 VA
- CMA-31-125-5A-2,5VA-0,5 - 125A Closed Current Transformer, RoHS Compliant, 2.5 VA
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the CMA-31-125-5A-2,5VA-0,5, a reliable closed current transformer designed for precision and efficiency This model supports a primary current of 125 A and features a secondary current limit of 5 A, accompanied by a load capacity of 25 VA With a tolerance class of 05, it meets rigorous RoHS compliance standards, ensuring safety and environmental consideration Engineered for indoor applications, it is tailored to accommodate insulated round conductors with a diameter of 25.
7 mm, making it a perfect choice for a variety of electrical setups.
Features and Benefits:
•Closed current transformer.
•RoHS compliant.
•Suitable for indoor installation.
•Compatible with insulated conductors.
Specifications:
| Primary current: | 125 A |
| Secondary current max.: | 5 A |
| Load: | 2.5 VA |
| Tolerance class: | 0.5 |
| Insulation class: | E |
| Nominal frequency: | 50 Hz |
| Thermal rated continuous current I thermal: | 1.2 x I rated |
| Insulation coordination: | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| Type of conductor: | Insulated conductor only |

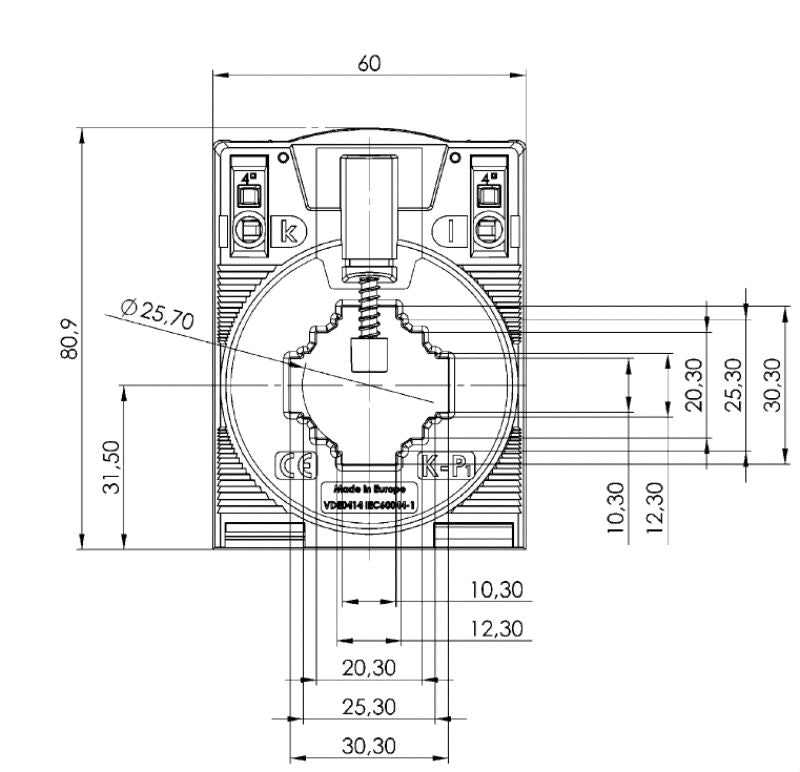

| Round conductor: | 25.7 mm |
| Rail: | 30 x 10 mm, 25 x 12 mm, 20 x 20 mm |
