Description:

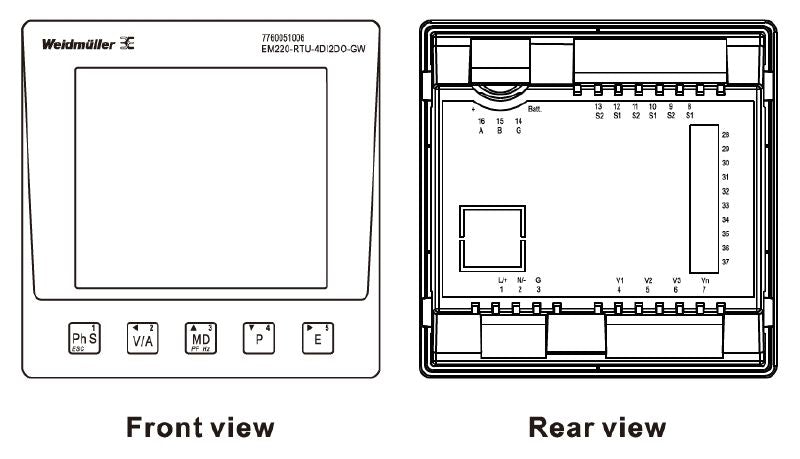

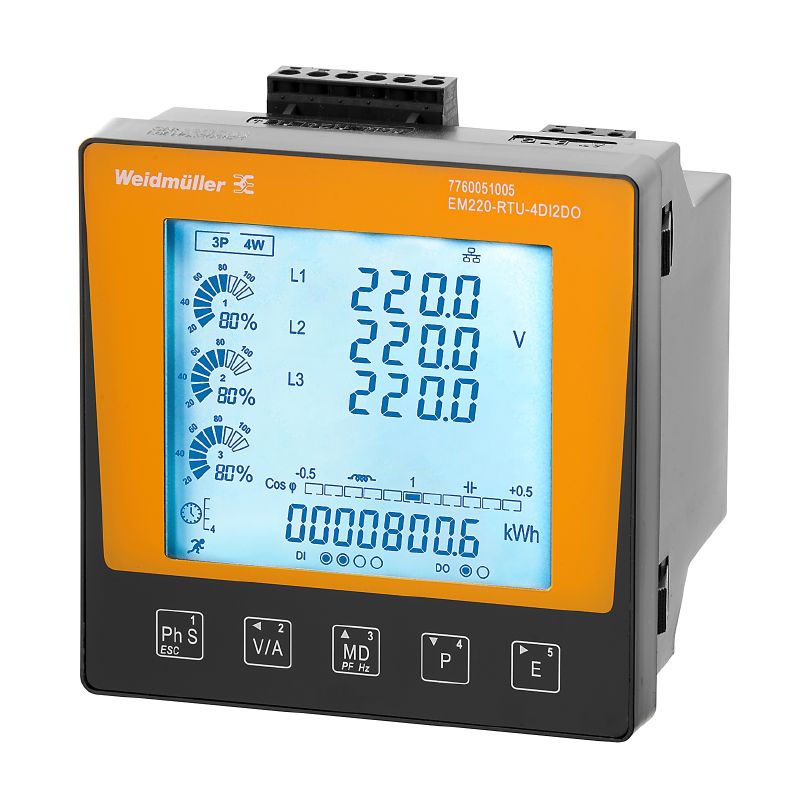

Introducing a versatile device for measuring and displaying power values across single-phase and three-phase mains This innovative tool is compatible with current transformers (CT) and is equipped with pulse output, along with options for digital inputs and outputs Enhanced by Modbus RTU communication, it offers great adaptability for various applications.
Features and Benefits:
•RoHS compliant.

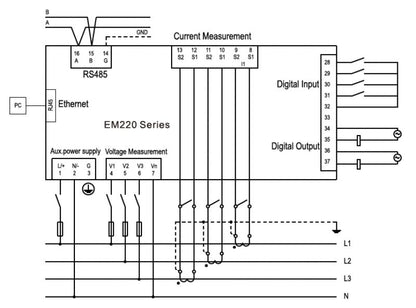

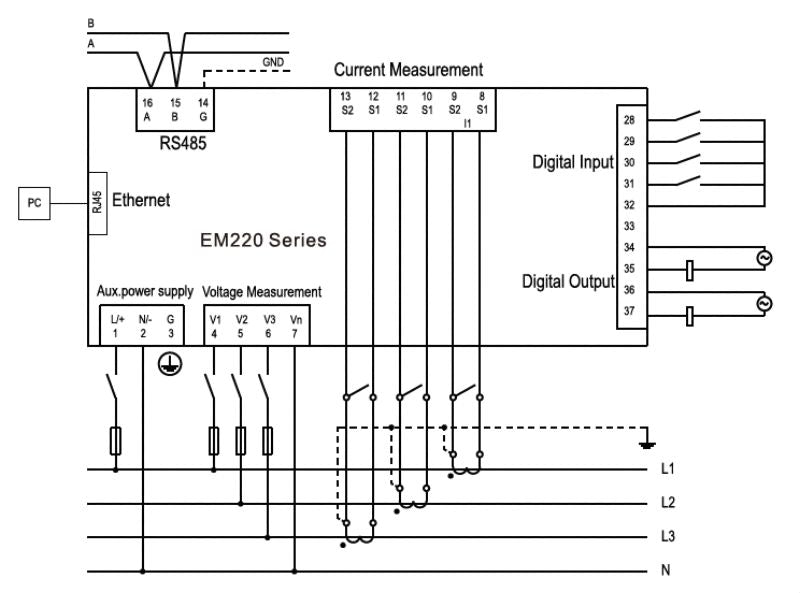

•Four-wire and three-wire system support.
•Digital outputs configurable.
•Continuous measurements with an update interval of 1 second.

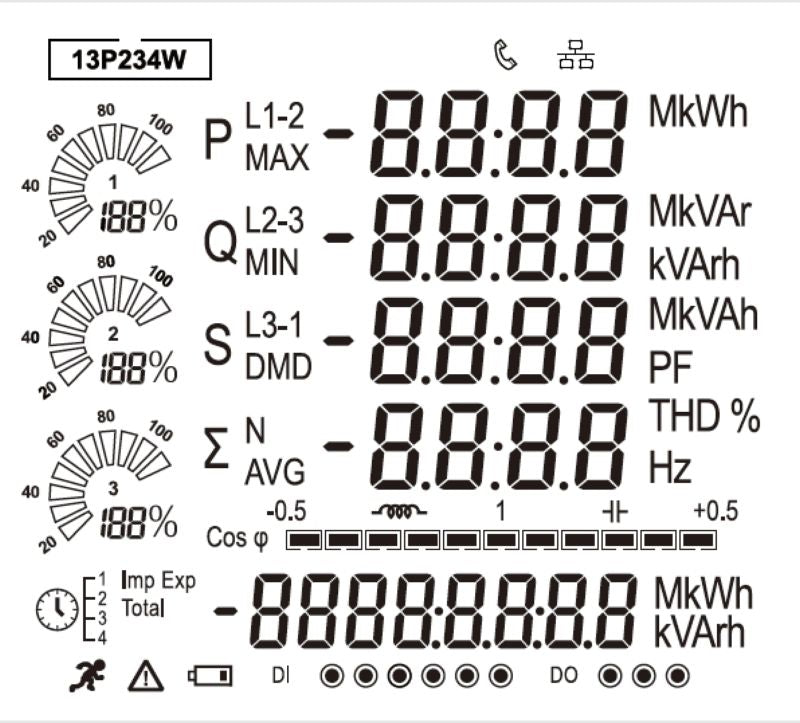

•LCD display for monitoring.
•Pollution severity classification of 2.
•Surge voltage category III.
•Software compatible with EM configuration tools.
Specifications:

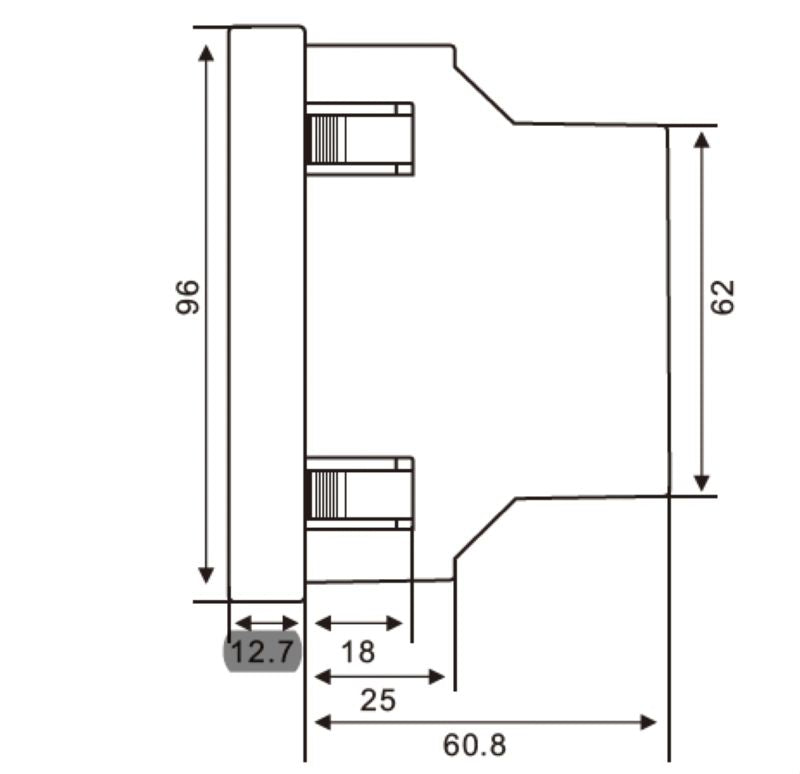

| Depth | 74 mm |
| Height | 96 mm |
| Width | 96 mm |
| Net weight | 360 g |
| Storage temperature | -40 °C...70 °C |
| Operating temperature | -25 °C...55 °C |
| Humidity | 0...90 % (no condensation) |
| Current-measuring channels | 3 |
| Max. current | 5000 A |
| Measuring accuracy for current | 0.5 % |
| Rated current | via current transformer 1 A/5 A |
| Frequency range, min. | 45 Hz |
| Frequency range, max. | 65 Hz |
| Measurement range, voltage L-L, AC | 50…600 V |
| Measurement range, voltage L-N, AC | 50…345 V |
| Measuring accuracy for voltage | 0.5 % |
| Power factor input | ± 0.01 |
| Protection degree | Front panel: IP51, IP20 |
| Type of mounting | Frontpanel mounting |
| Supply voltage | 75…270 V AC, 100…380 V DC |
| Sampling frequency 50/60 Hz | 14.4 kHz |
| Connection data | {'Stripping length': '8 mm', 'Type of connection': 'Screw connection', 'Wire cross-section, solid, min.': '0.5 mm²', 'Wire cross-section, solid, max.': '2.5 mm²', 'Wire connection cross section, finely stranded, min.': '0.5 mm²', 'Wire connection cross section, finely stranded, max.': '2.5 mm²'} |
