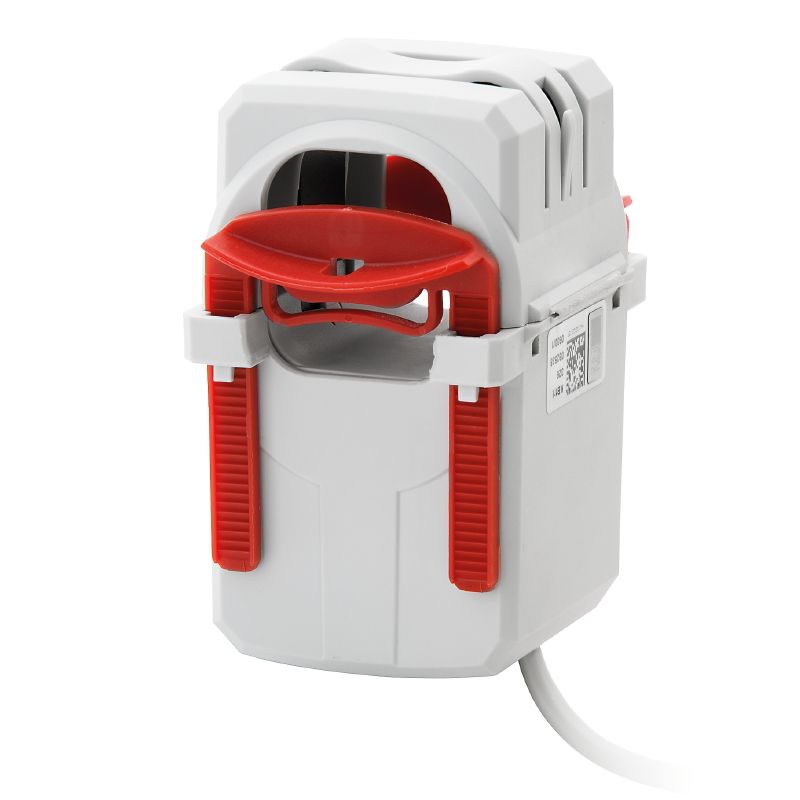

2753130000 - 400A Split-Core Current Transformer, 2.5VA Capacity
2753130000 - 400A Split-Core Current Transformer, 2.5VA Capacity
SKU: SKU: 2753130000 Download PDF
- 2753130000 - 400A Split-Core Current Transformer, 2.5VA Capacity
- 2753130000 - 400A Split-Core Current Transformer, 2.5VA Capacity
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the KCMA-28-400-5A-25VA-1 split-core current transformer, engineered for reliable performance with a primary current capacity of 400 A and a secondary current maximum of 5 A With a load capacity of 25 VA and compliance with tolerance class 1, this transformer is a dependable choice for various applications It also meets RoHS standards, ensuring environmentally-friendly use For convenient ordering, refer to item number 2753130000.
Features and Benefits:
•Compliant with RoHS without any exemptions.
•Suitable for indoor use.
•IP20 protection degree.
Specifications:

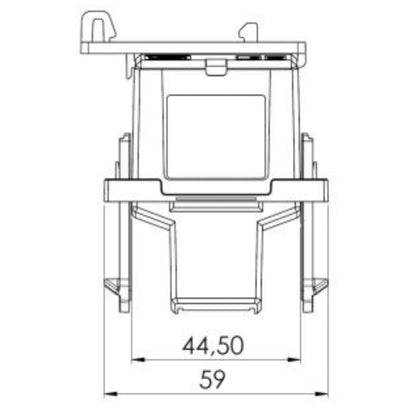

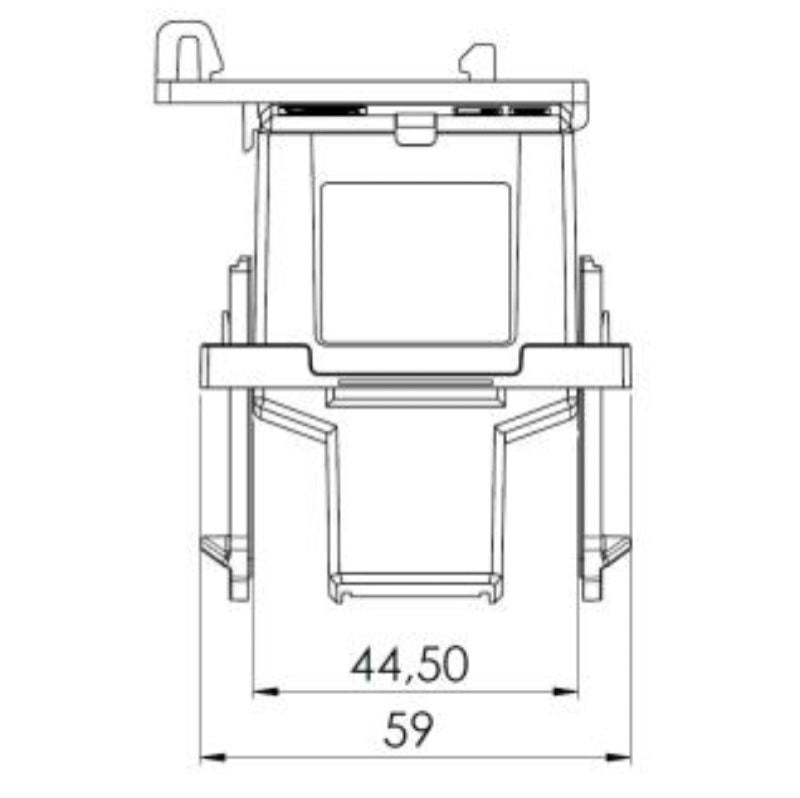

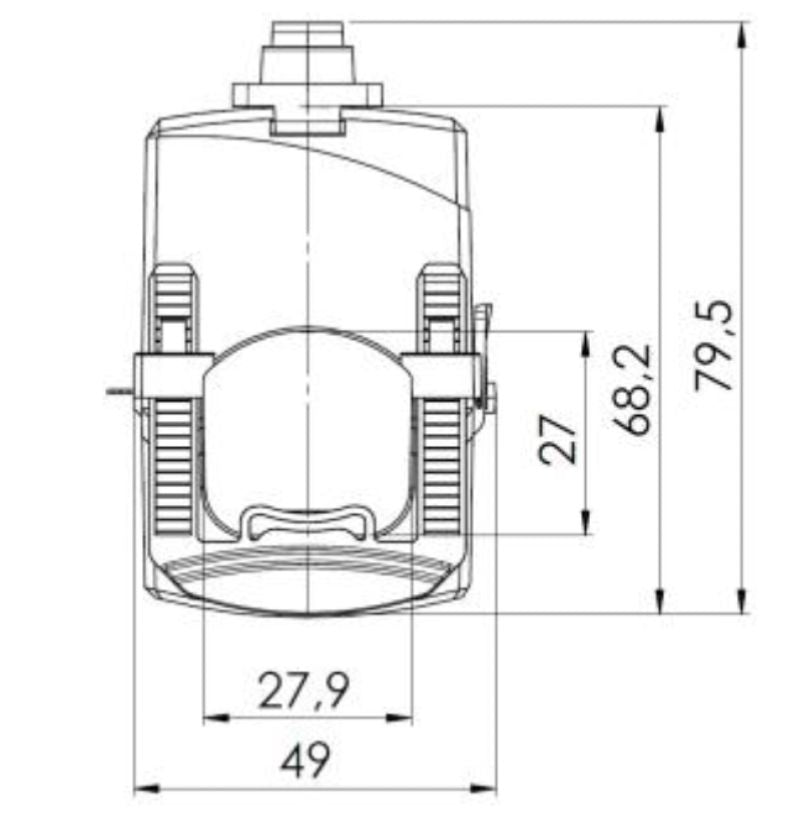

| Depth | 59 mm |
| Height | 79.5 mm |
| Width | 49 mm |
| Cable length | 0.5 m |
| Operating temperature | -5 °C...50 °C |
| Nominal frequency | 50 Hz |
| Tolerance class | 1 |
| Primary current | 400 A |
| Secondary current | 0...5 A |
| Load | 2.5 VA |
