Description:

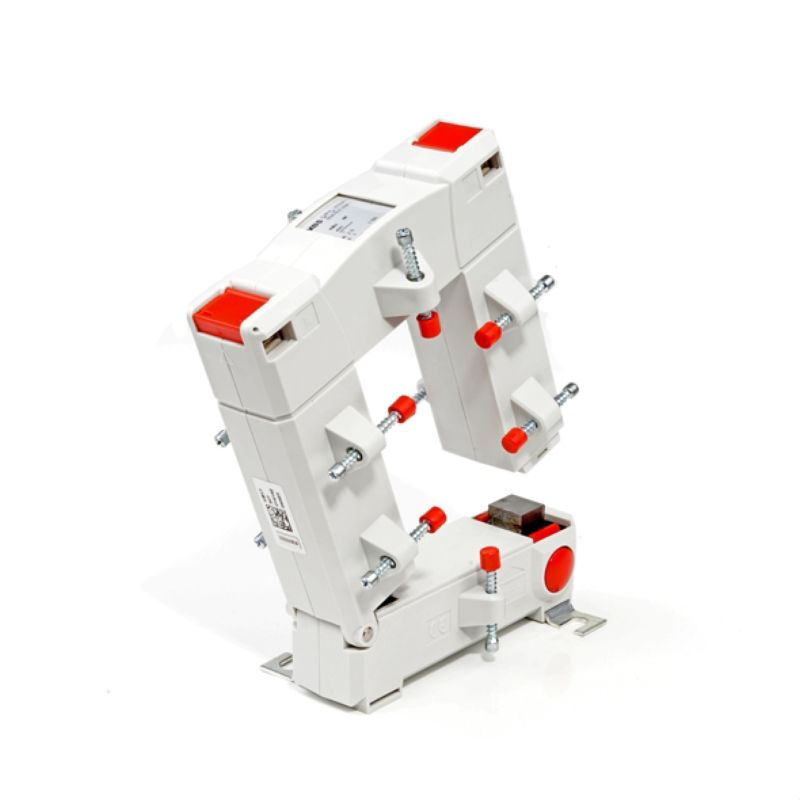

Introducing the KCMA 5-500-5A-25VA-05 split-core current transformer, specially engineered for indoor use Capable of managing a primary current of 500 A and a secondary current up to 5 A, this transformer efficiently handles a load of 25 VA With a precision tolerance class of 05, you can count on its accuracy for all your measurements Additionally, it meets RoHS guidelines and is free from any SVHC substances above the allowable limits, ensuring safety and compliance in your electrical setups.
Features and Benefits:
•Compliance with RoHS regulations.
•Indoor use only.
•Designed for insulated conductors.
•Split-core design for easy installation.
•Robust dimensions suitable for various applications.
Specifications:
| Primary current | 500 A |
| Secondary current max | 5 A |
| Load | 2.5 VA |
| Tolerance class | 0.5 |
| Cable length | 0.5 m |
| Operating temperature | -5 °C to 40 °C |
| Protection degree | IP20 |

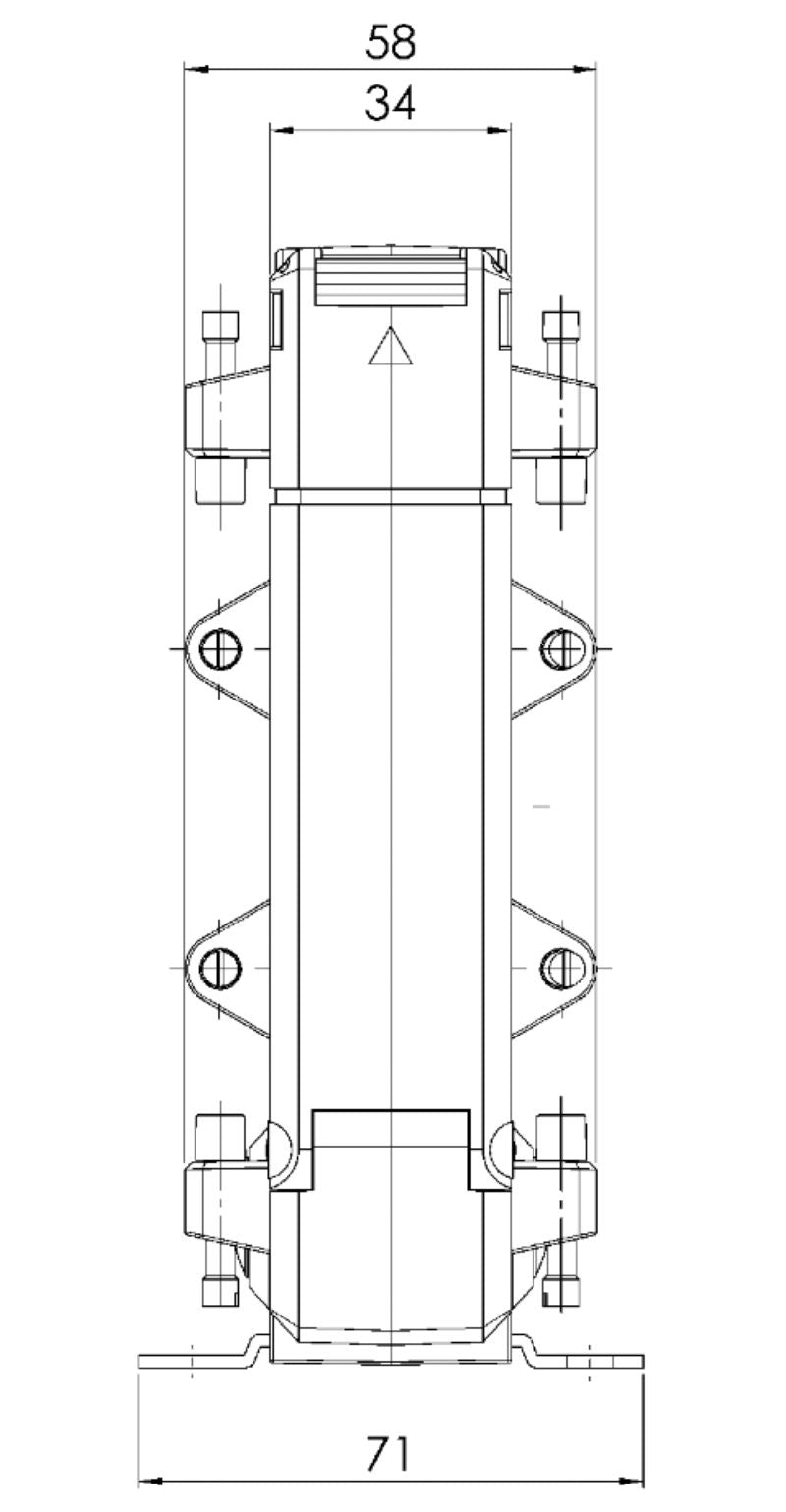

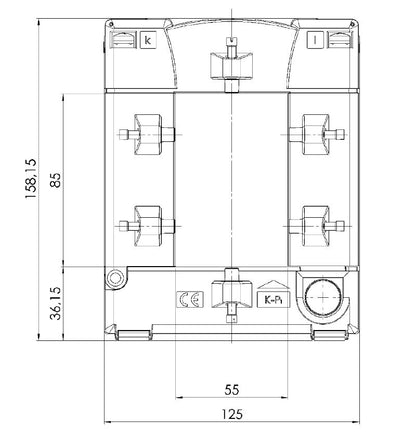

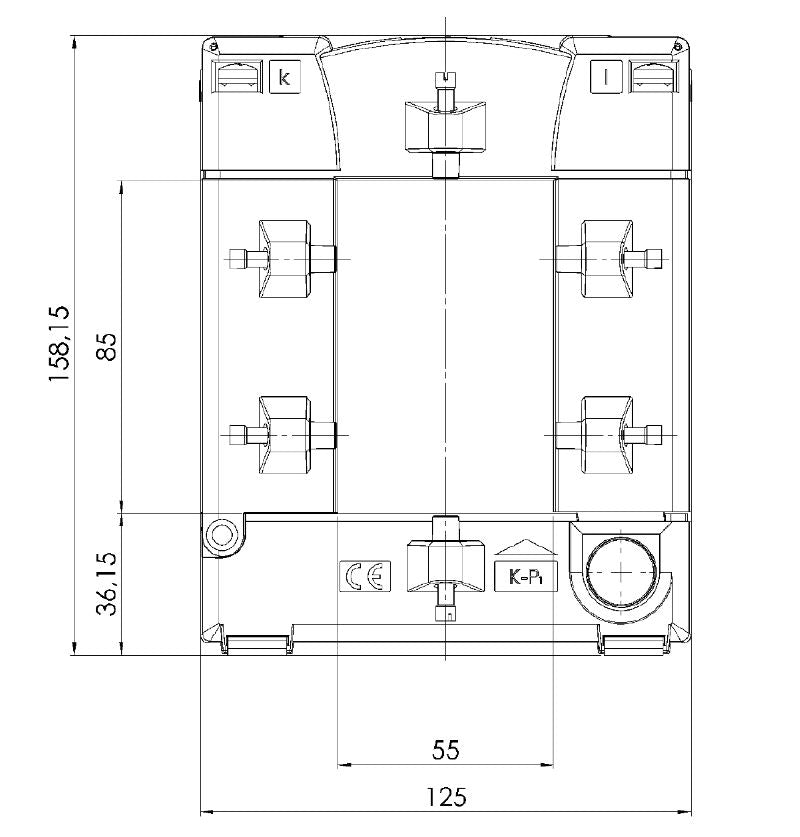

| Height | 158 mm |
| Width | 125 mm |
| Depth | 58 mm |
