Description:

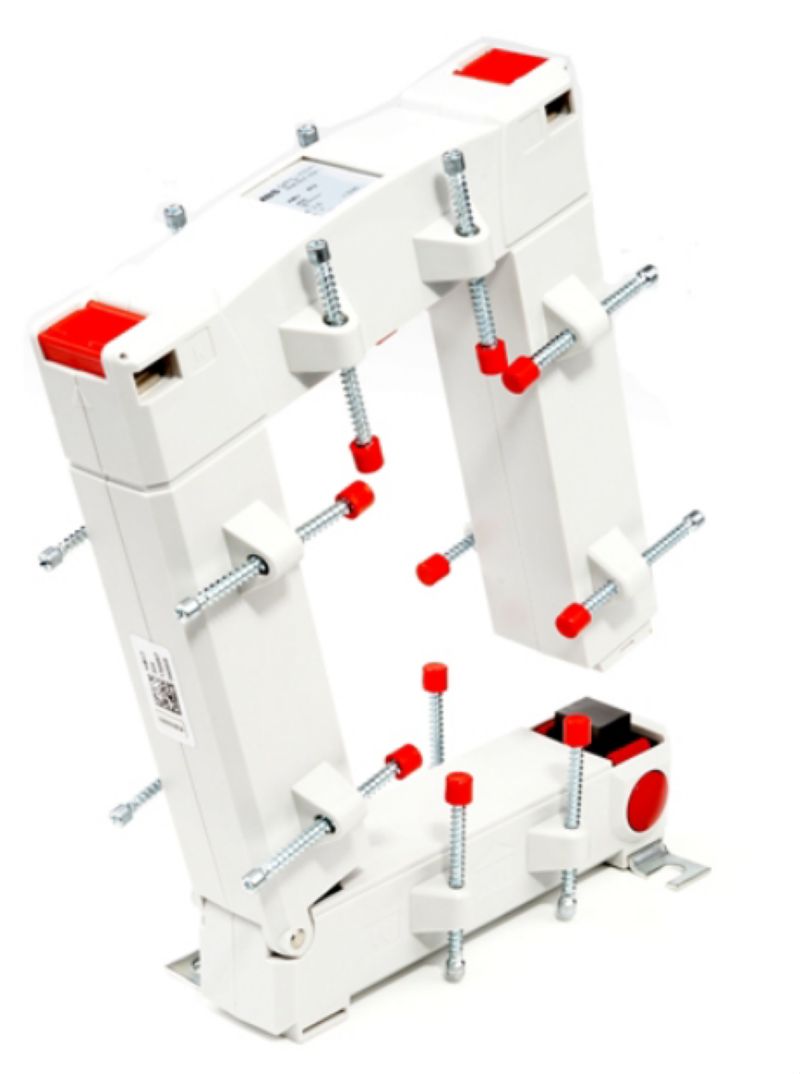

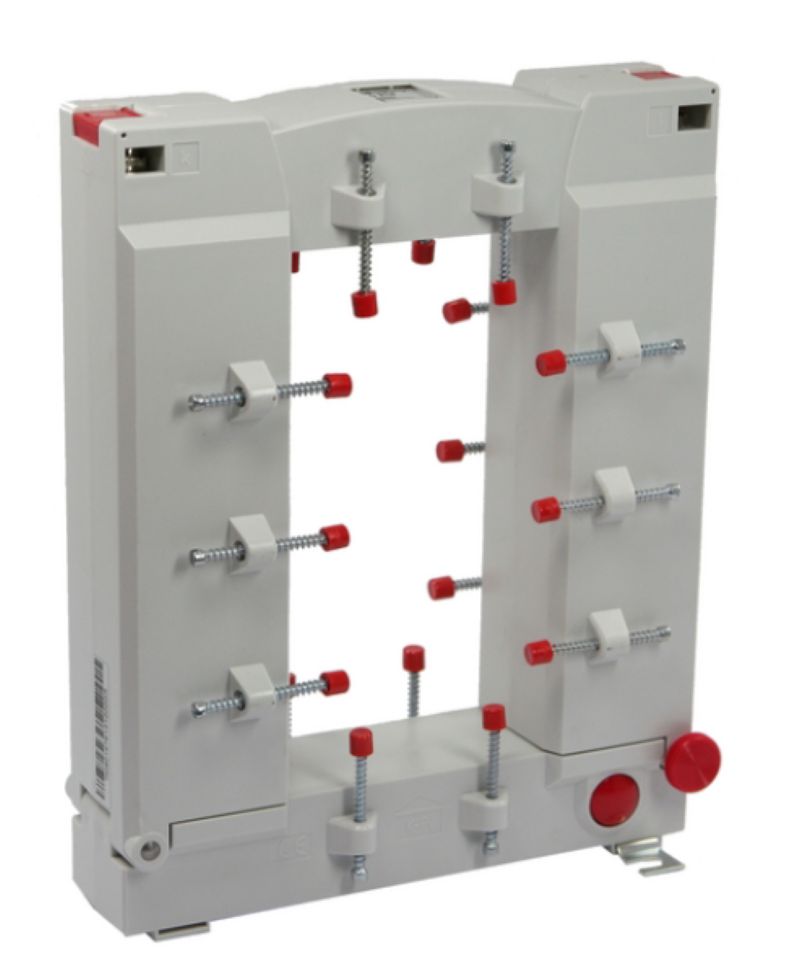

Experience reliable performance with the KCMA-8-3000-5A-15VA1 split-core current transformer, tailored for high-capacity applications This advanced device supports a primary current rating of up to 3000 A and delivers a maximum secondary output of 5 A, along with a robust load capacity of 15 VA With its classification under tolerance class 1, it guarantees precise measurements, making it a dependable choice for your electrical needs.
Features and Benefits:
•RoHS compliant without exemption.
•Insulated conductor only type.
•Designed for indoor use.
•Protection degree of IP20.
Specifications:
| Primary current | 3000 A |
| Secondary current max. | 5 A |
| Load | 15 VA |
| Tolerance class | 1 |
| Depth | 79 mm |
| Height | 243 mm |
| Width | 195 mm |
| Net weight | 3760 g |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Thermal rated continuous current I thermal | 1.2 x I rated |
| Insulation coordination | Standard EN 60044/1 |
| Rail | 80 x 120 mm |
| Round conductor | 80 mm |
