Description:
Experience reliable performance with our split-core current transformer, engineered for a primary current capacity of 400 A and a secondary current limit of 1 A, boasting a load capacity of 5 VA This transformer meets RoHS standards and features a compact design with dimensions of 90 mm in depth, 964 mm in height, and 592 mm in width Designed exclusively for indoor applications, it complies with strict environmental regulations, guaranteeing safe and efficient operation.
Features and Benefits:
•Compliant with RoHS and REACH standards.
•Designed for indoor use.
•Insulated conductor type compatibility.
•Compact dimensions for various installations.
Specifications:
| Primary current | 400 A |
| Secondary current | 0...1 A |
| Load | 5 VA |
| Tolerance class | 1 |

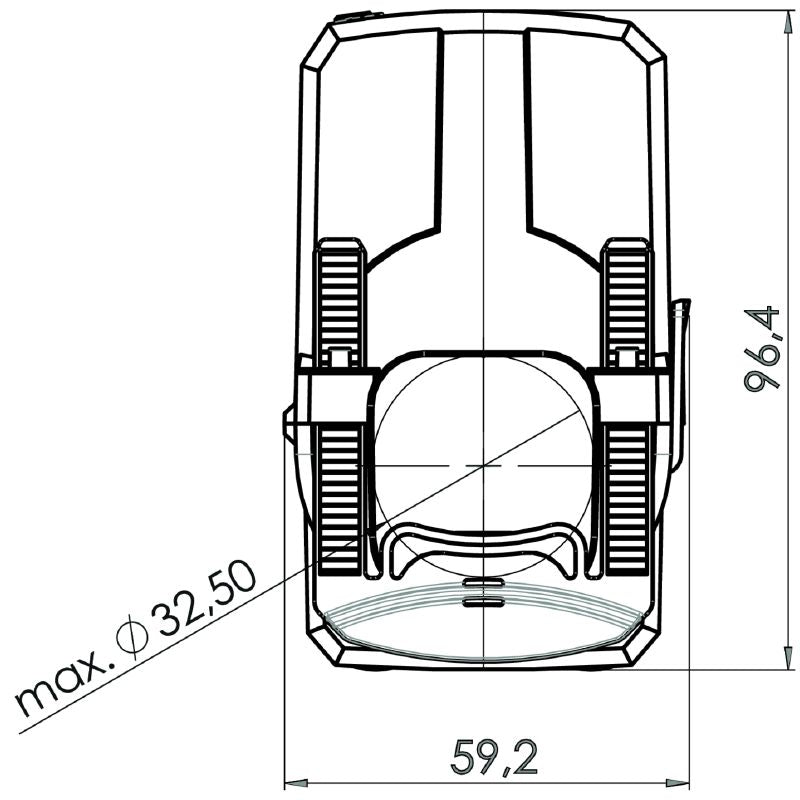

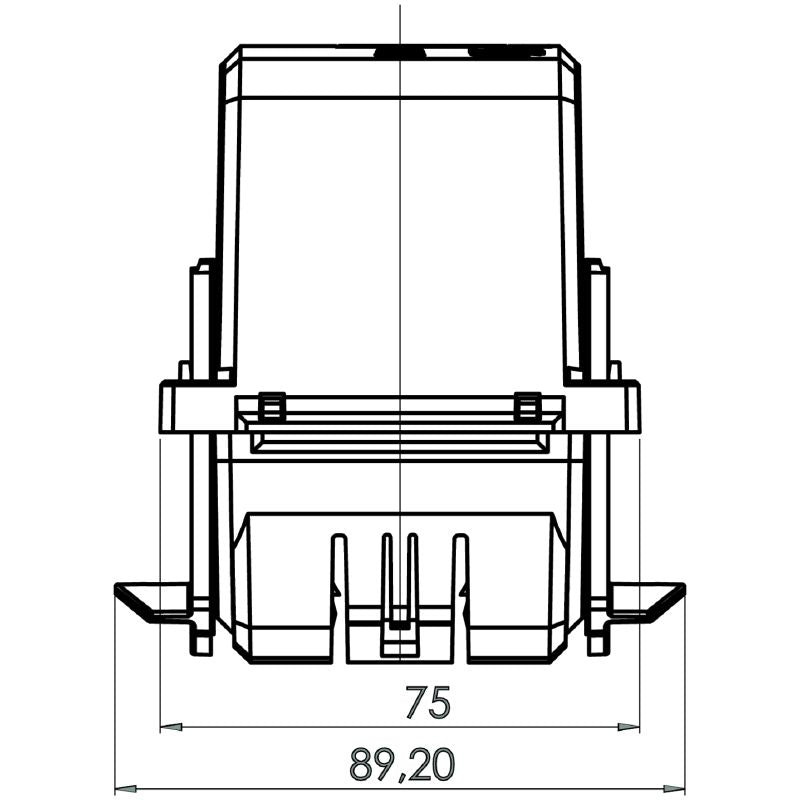

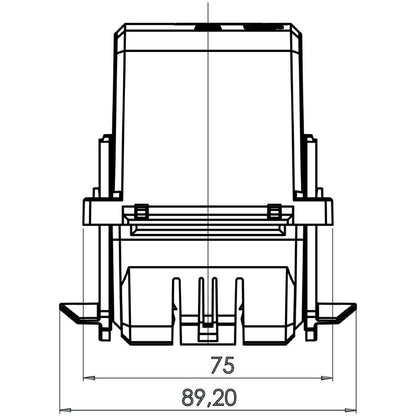

| Dimensions | 90 mm depth, 96.4 mm height, 59.2 mm width |
| Cable length | 2.5 m |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Storage temperature | -25 °C...70 °C |
| Operating temperature | -5 °C...50 °C |
| Insulation coordination | IEC 61869-1: 2007, IEC 61869-2: 2012 |
