2556010000 - 64A Indoor Closed Current Transformer, 0.5VA Capacity
2556010000 - 64A Indoor Closed Current Transformer, 0.5VA Capacity
SKU: SKU: 2556010000 Download PDF
- 2556010000 - 64A Indoor Closed Current Transformer, 0.5VA Capacity
- 2556010000 - 64A Indoor Closed Current Transformer, 0.5VA Capacity
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

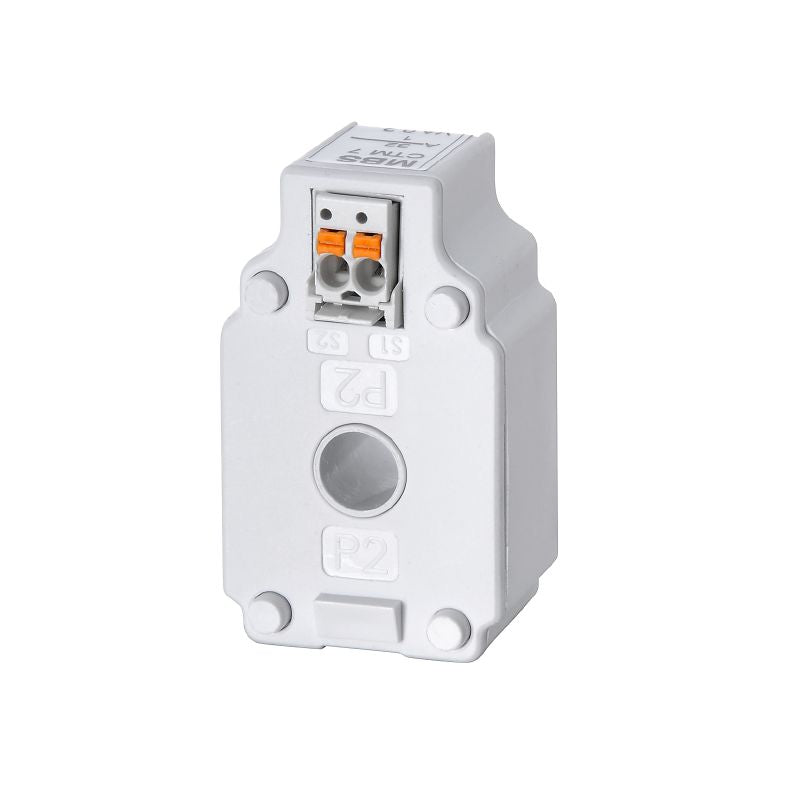

Introducing the CMA-CTM-7-64-1A-05VA-1 current transformer, designed for precise indoor applications With a primary current rating of 64 A and a secondary current of 1 A, this transformer offers a load capacity of 05 VA and complies with tolerance class 1 Additionally, it adheres to RoHS standards, making it a reliable choice for those in need of quality and compliance in their electrical equipment.
Features and Benefits:
•Compliant with RoHS standards.
•Designed for indoor use.

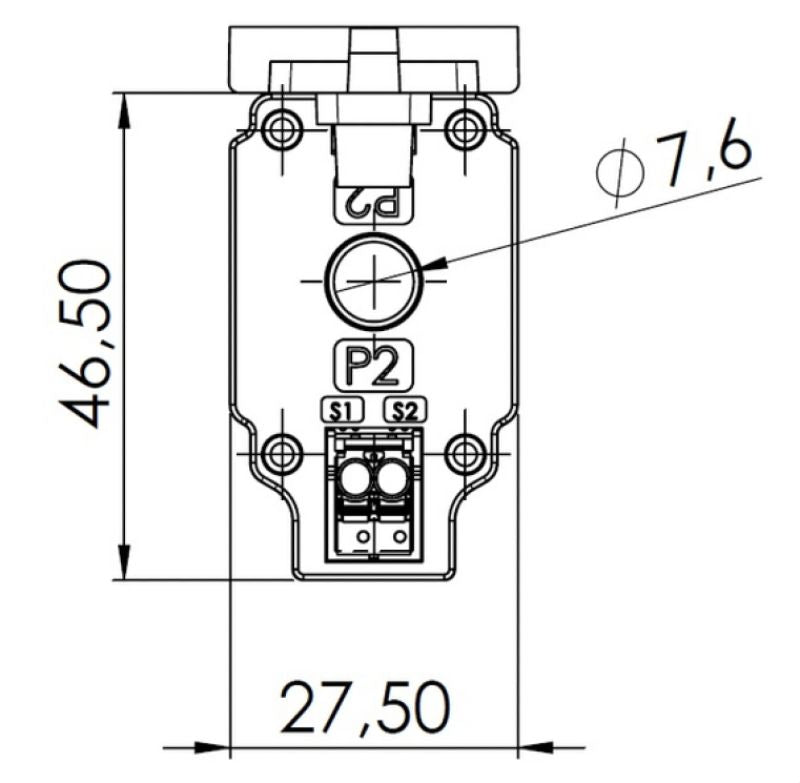

•Insulated conductor type with a round conductor diameter of 7.6 mm.
Specifications:

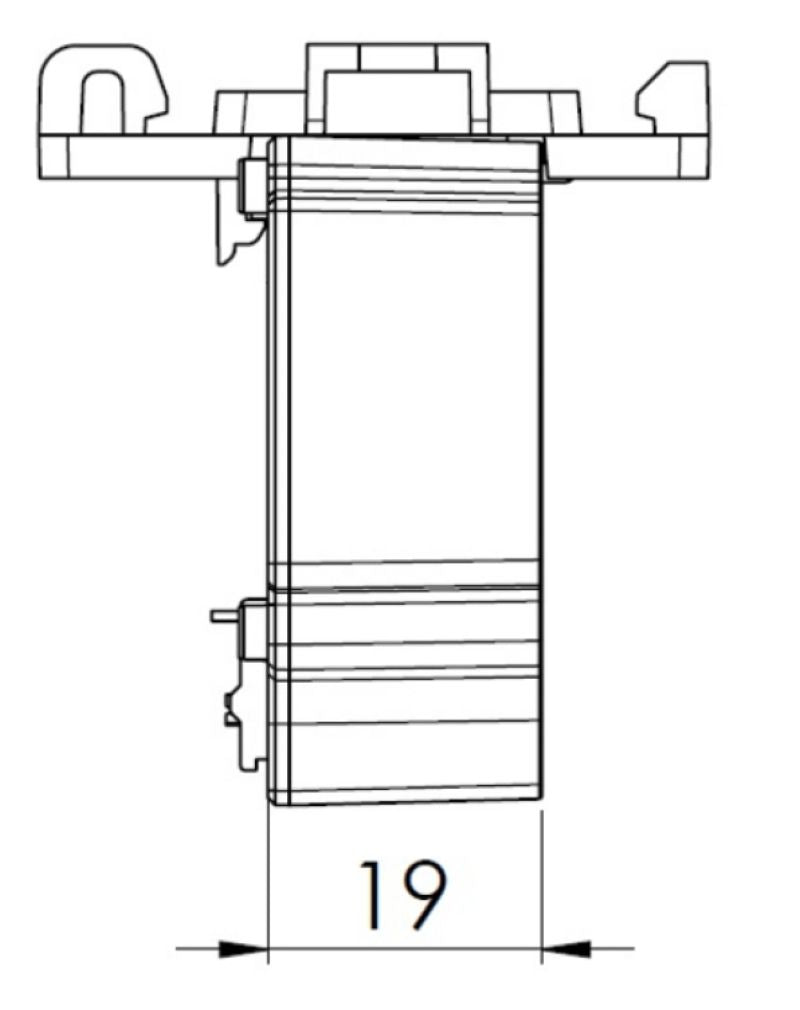

| Depth | 19 mm |
| Height | 46.5 mm |
| Width | 27.5 mm |
| Net weight | 65 g |
| Storage temperature | -25 °C...70 °C |
| Operating temperature | -5 °C...50 °C |
| Load | 0.5 VA |
| Primary current | 64 A |
| Secondary current | 0...1 A |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Thermal rated continuous current I thermal | 1.0 x I rated |
| Insulation coordination | Standard IEC 61869-1: 2007, IEC 61869-2: 2012 |
| Tolerance class | 1 |
