2420710000 - Split-Core Transformer, 750A Primary, 5A Secondary, Indoor Use
2420710000 - Split-Core Transformer, 750A Primary, 5A Secondary, Indoor Use
SKU: SKU: 2420710000 Download PDF
- 2420710000 - Split-Core Transformer, 750A Primary, 5A Secondary, Indoor Use
- 2420710000 - Split-Core Transformer, 750A Primary, 5A Secondary, Indoor Use
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the KCMA-44-750-5A-5VA-1 split-core current transformer, expertly designed for efficient current measurement With a primary current rating of 750 A and a maximum secondary current output of 5 A, this transformer boasts a load capacity of 5 VA and is classified under tolerance class 1 Built for indoor applications, this model adheres to RoHS standards, ensuring it meets environmental regulations.
Features and Benefits:
•Complies with RoHS without exemption.
•Indoor installation.
Specifications:
| Primary current | 750 A |
| Secondary current | 0...5 A |
| Load | 5 VA |
| Tolerance class | 1 |
| Cable length | 0.5 m |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Storage temperature | -25 °C to 70 °C |
| Operating temperature | -5 °C to 50 °C |

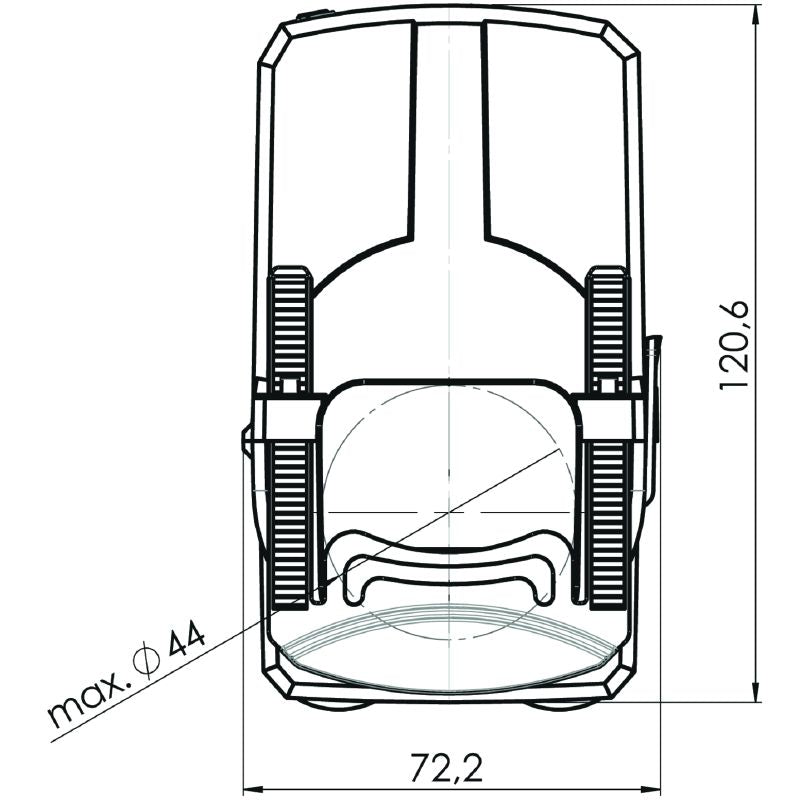

| Round conductor | 44 mm |
| Insulation coordination | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| ETIM classifications | EC002048 |
| ECLASS classifications | 27-21-09-02 |
