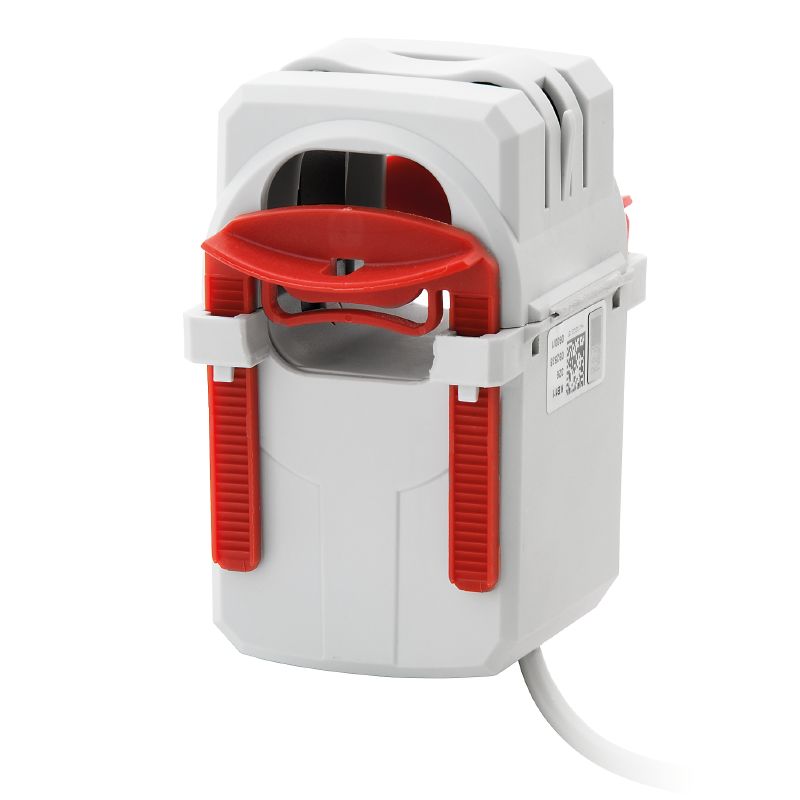

2420760000 - KCMA Split-Core Current Transformer, 200A, Indoor Use, 68mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

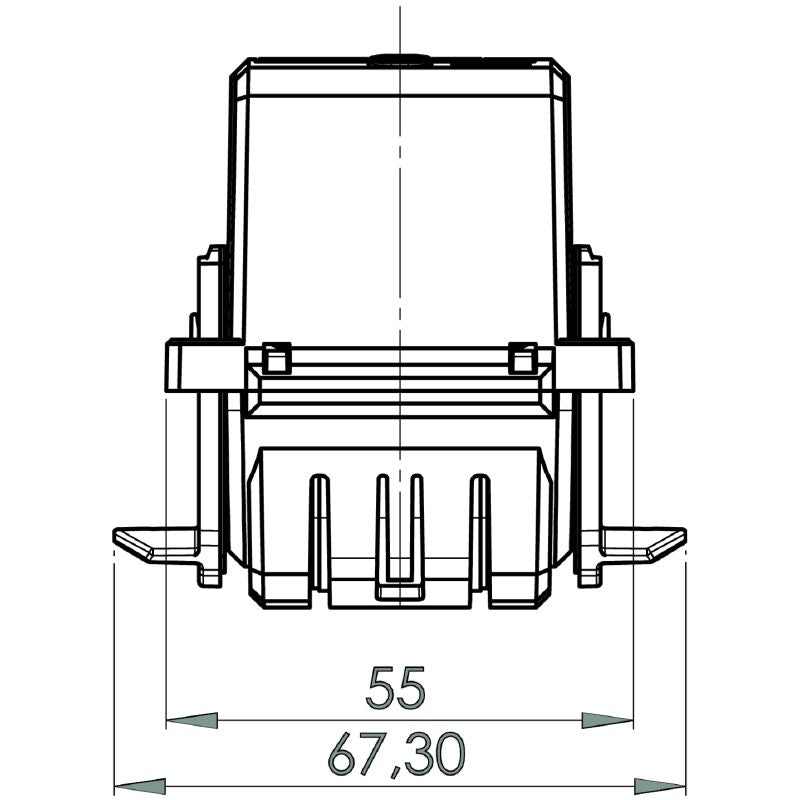

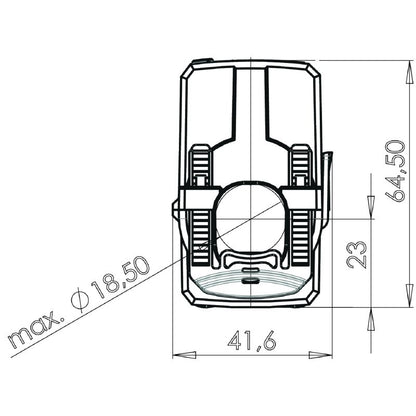

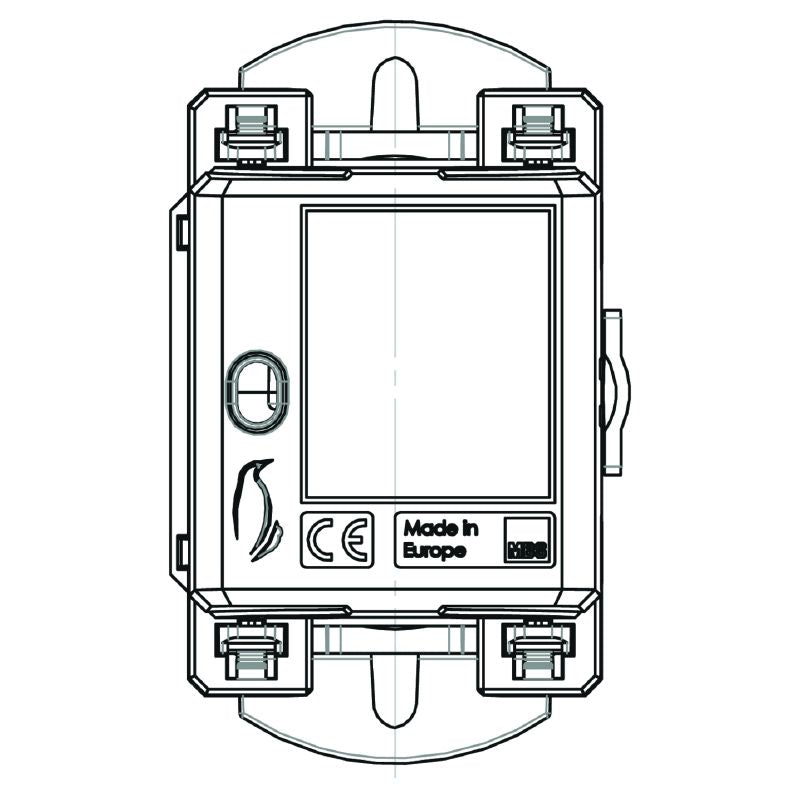

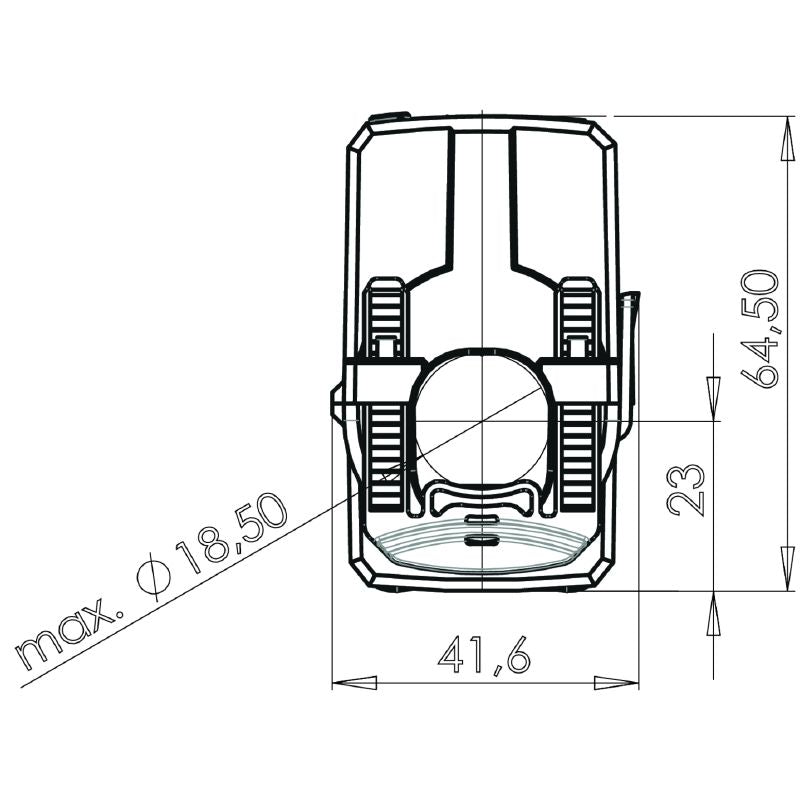

Introducing the KCMA-18-200-1A-3VA-3 split-core current transformer, engineered for efficiency with a primary current capacity of 200 A and a secondary current limit of 1 A, coupled with a load capacity of 3 VA Built to withstand indoor conditions, this transformer meets tolerance class 3 standards and is RoHS compliant, ensuring safe use without any exemptions With compact dimensions of 645 mm in height, 41.

6 mm in width, and a depth of 68 mm, it weighs just 1 g, making it lightweight and easy to handle The KCMA-18-200-1A-3VA-3 operates effectively across a temperature range from -5 °C to +50 °C and can be stored in environments between -25 °C and 70 °C, providing versatility for various applications.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Designed for indoor deployment.

•Applicable for insulated conductors only.

Specifications:
