Description:

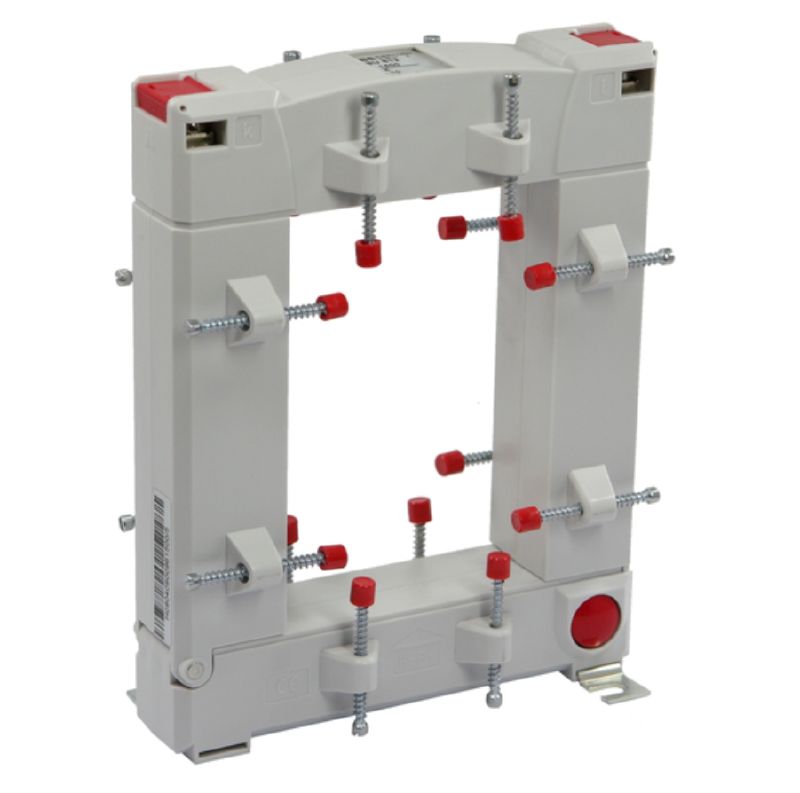

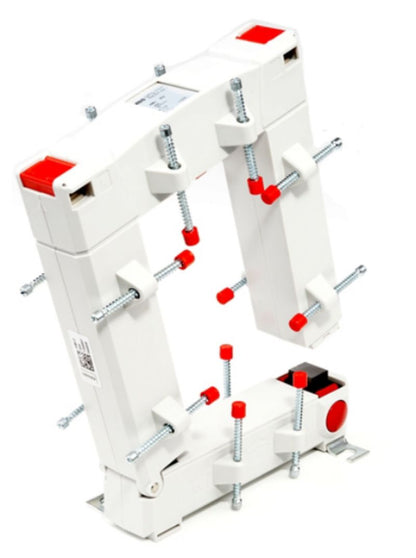

Introducing the KCMA-8-1200-5A-10VA1, a high-performance split-core current transformer suitable for a variety of applications It is engineered to accommodate a primary current of up to 1200 A, with a secondary current output of 5 A The device boasts a load capacity of 10 VA and operates within tolerance class 1, guaranteeing precise measurements Additionally, this transformer is fully compliant with RoHS standards, ensuring it meets rigorous environmental safety regulations.
Features and Benefits:
•Insulated conductor only.
•Indoor use.
•RoHS compliant without exemption.
•No SVHC above 0.1 wt%.
Specifications:
| Primary current | 1200 A |
| Secondary current max | 5 A |
| Load | 10 VA |
| Tolerance class | 1 |

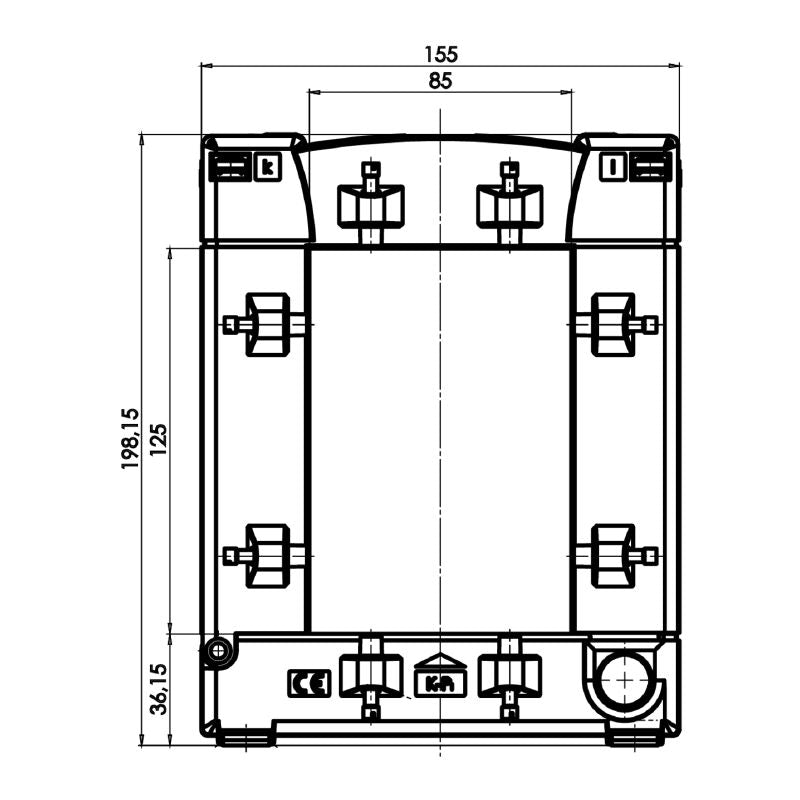

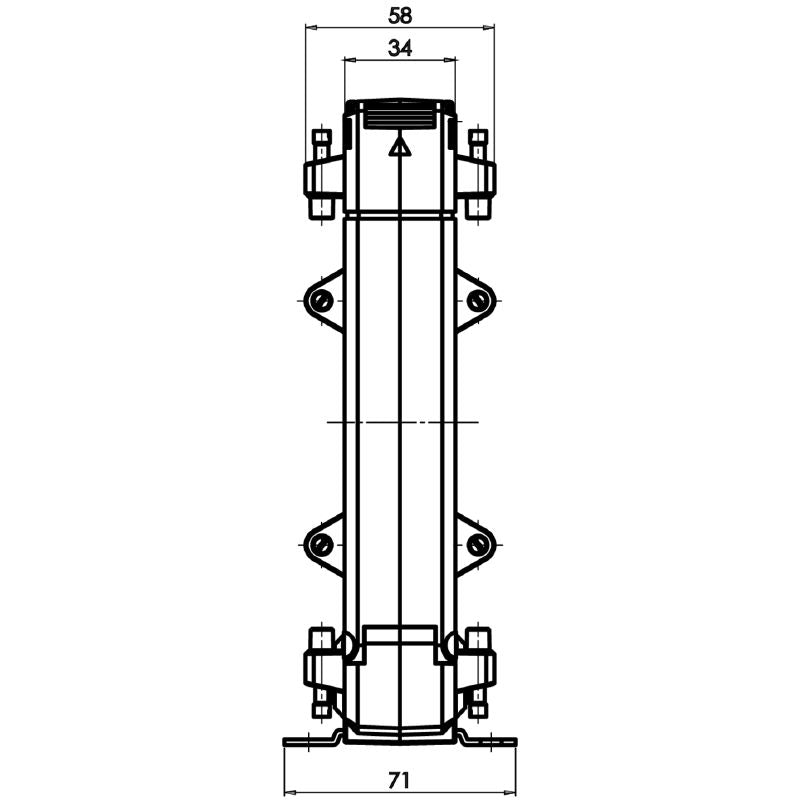

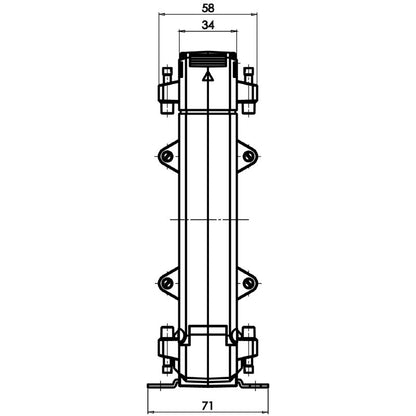

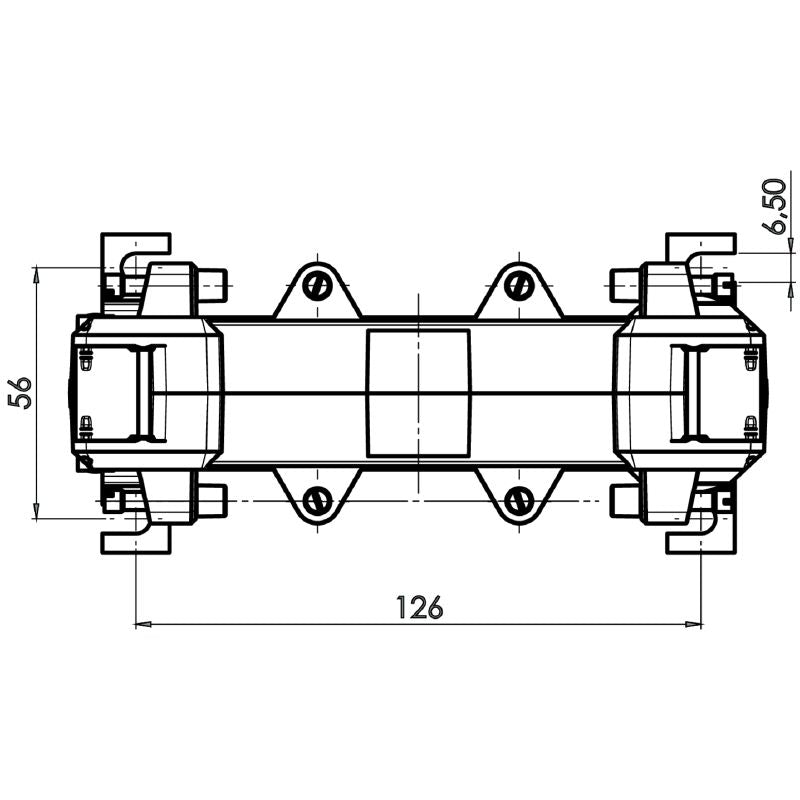

| Depth | 58 mm |
| Height | 198 mm |
| Width | 155 mm |
| Net weight | 1500 g |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Thermal rated continuous current I | 1.2 x I rated |
| Standard | EN 60044/1 |
