2437370000 - 800A Split-Core Current Transformer for Precise Measuring

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

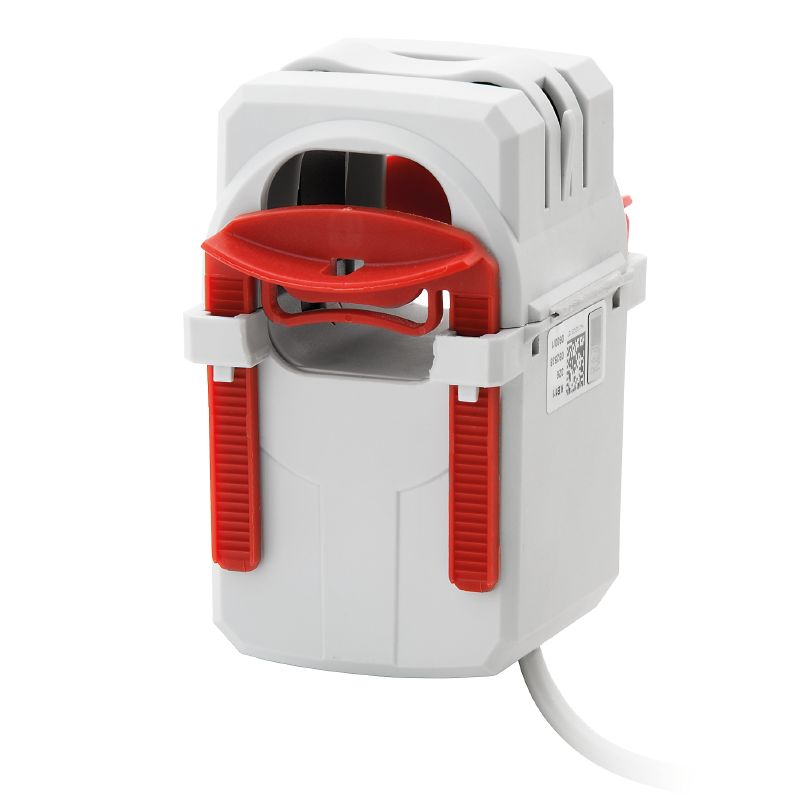

The KCMA-44-800-5A-5VA-1 is a precision-engineered split-core current transformer that excels in current measurement tasks With the capacity to handle a primary current of 800 A and a secondary current of up to 5 A, this device is built for accuracy, featuring a maximum load capacity of 5 VA and a tolerance class of 1 It meets RoHS regulations, making it an environmentally compliant choice for indoor environments.

This transformer can be safely stored at temperatures ranging from -25 °C to +70 °C and is operational within a temperature range of -5 °C to +50 °C, ensuring reliable performance in various conditions.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Indoors usage is recommended.

•Insulated conductor type only.

•Provides significant primary and secondary current handling.

•Strong insulation coordination according to IEC standards.

Specifications:
