2753170000 - Split-Core Current Transformer 400A, 69mm Depth, Class 0.5
2753170000 - Split-Core Current Transformer 400A, 69mm Depth, Class 0.5
SKU: SKU: 2753170000 Download PDF
- 2753170000 - Split-Core Current Transformer 400A, 69mm Depth, Class 0.5
- 2753170000 - Split-Core Current Transformer 400A, 69mm Depth, Class 0.5
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a highly efficient split-core current transformer perfect for monitoring substantial current levels This reliable device accommodates a primary current capacity of 400 A and a secondary current of up to 1 A, making it versatile for various applications With a load capacity of 25 VA, it is rated under the 05 tolerance class, ensuring precision and accuracy

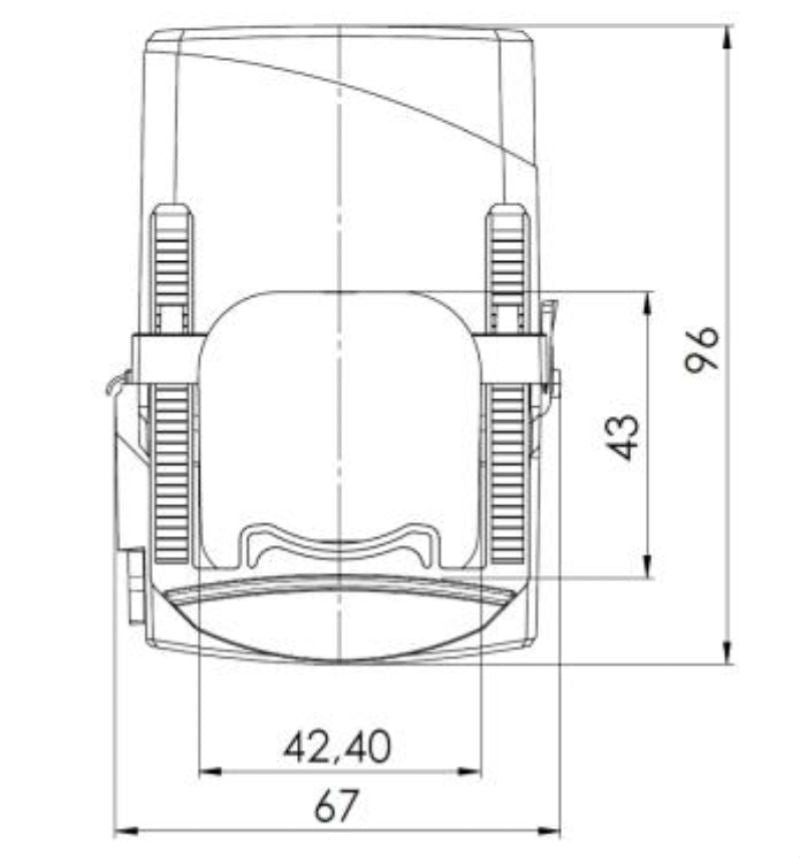

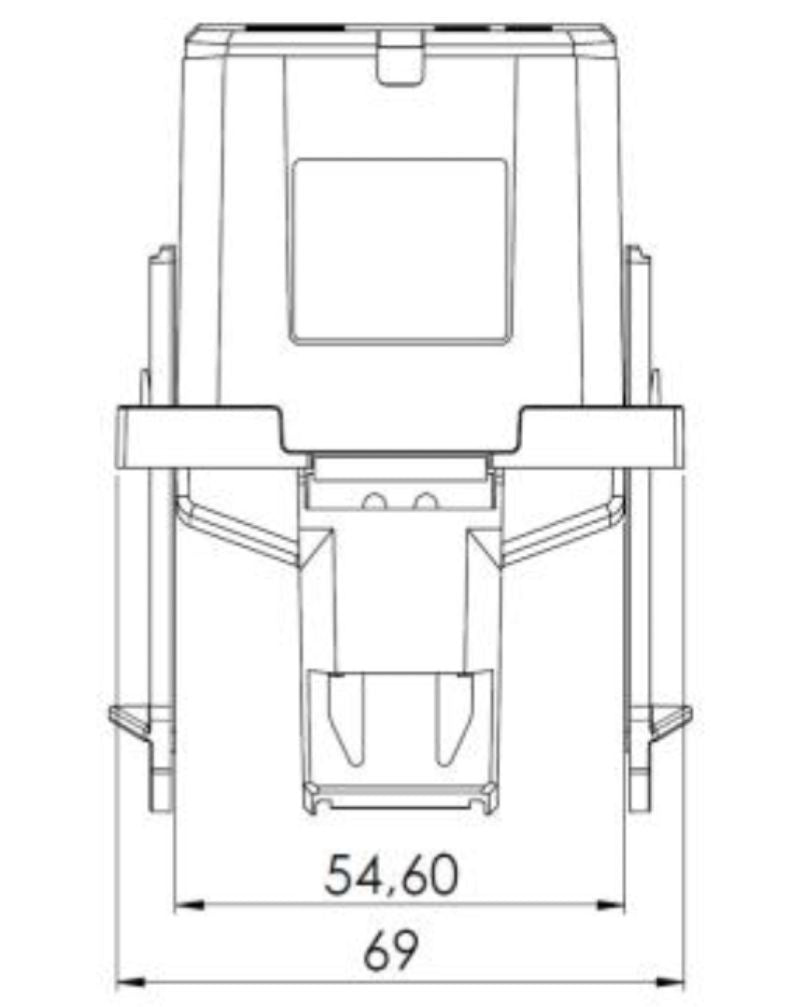

Measuring 69 mm in depth, 96 mm in height, and 67 mm in width, this transformer is compact yet powerful, weighing in at 438 g.
It is designed for indoor applications and adheres to RoHS compliance standards Furthermore, it supports insulated conductors with a round size of up to 42 mm, allowing for easy integration into your existing systems.
Features and Benefits:
•Indoor installation.
•RoHS compliant.
•Suitable for insulated conductors only.
Specifications:
| Primary current | 400 A |
| Secondary current max. | 1 A |
| Load | 2.5 VA |
| Tolerance class | 0.5 |
| Depth | 69 mm |
| Height | 96 mm |
| Width | 67 mm |
| Cable length | 0.5 m |
| Protection degree | IP20 |
| Operating temperature | -5 °C to 50 °C |
