2420910000 - 500 A Closed Current Transformer, RoHS Compliant, Indoor Use
2420910000 - 500 A Closed Current Transformer, RoHS Compliant, Indoor Use
SKU: SKU: 2420910000 Download PDF
- 2420910000 - 500 A Closed Current Transformer, RoHS Compliant, Indoor Use
- 2420910000 - 500 A Closed Current Transformer, RoHS Compliant, Indoor Use
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience accurate current measurement with the CMA-31-500-5A-5VA-1 closed current transformer With a primary current capability of 500 A and a secondary current limit of 5 A, it efficiently handles loads of up to 5 VA Designed for indoor applications, this transformer meets RoHS standards and belongs to tolerance class 1, ensuring reliable performance for your electrical needs.
Features and Benefits:
•Indoor use.
•RoHS compliant.
•Closed current transformer design.
Specifications:
| Primary current | 500 A |
| Secondary current | 0...5 A |
| Load | 5 VA |
| Tolerance class | 1 |
| Storage temperature | -25 °C...70 °C |
| Operating temperature | -5 °C...50 °C |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Thermal rated continuous current I thermal | 1.2 x I rated |
| Insulation coordination Standard | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| Net weight | 264 g |

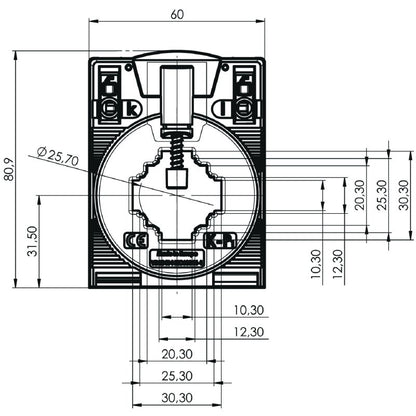

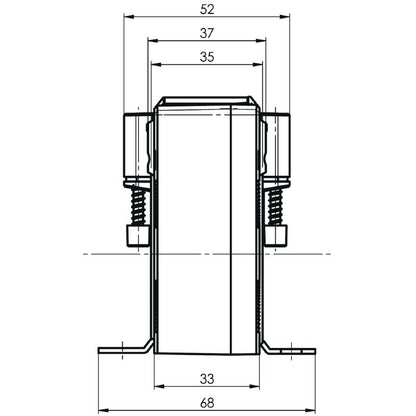

| Dimensions | {'Depth': '52 mm', 'Height': '80.9 mm', 'Width': '60 mm'} |
