Description:

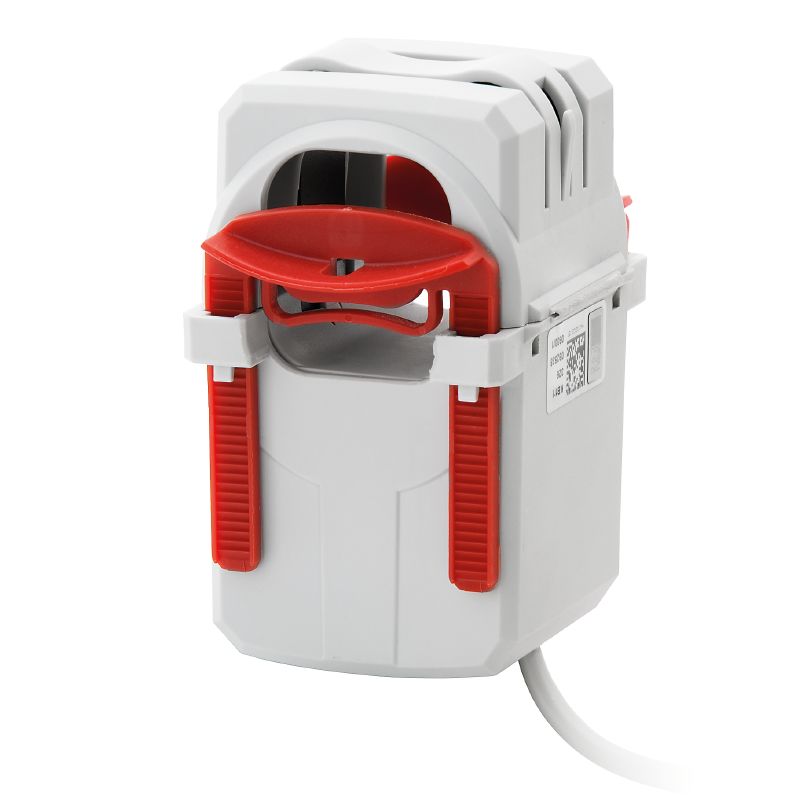

Introducing a reliable split-core current transformer, capable of handling primary currents up to 100 A, with a maximum secondary current of 1 A Designed for efficiency, it supports a load of 03 VA and adheres to tolerance class 1 This RoHS-compliant transformer is perfect for indoor applications, operating effectively within a temperature range of -5 °C to 50 °C It also includes a generous cable length of 2.
5 m to enhance your installation flexibility.
Features and Benefits:
•Compliant with RoHS standards.
•Designed for indoor use.
•Operates within an operating temperature range of -5 °C to 50 °C.
Specifications:
| Primary current | 100 A |
| Secondary current | 0...1 A |
| Load | 0.3 VA |
| Tolerance class | 1 |
| Cable length | 2.5 m |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |

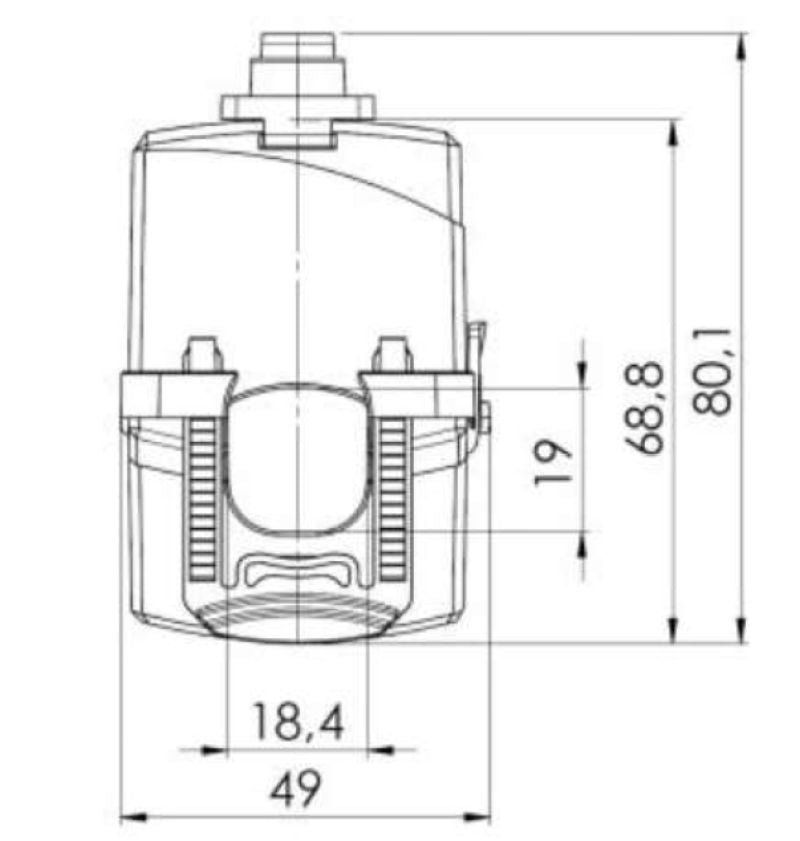

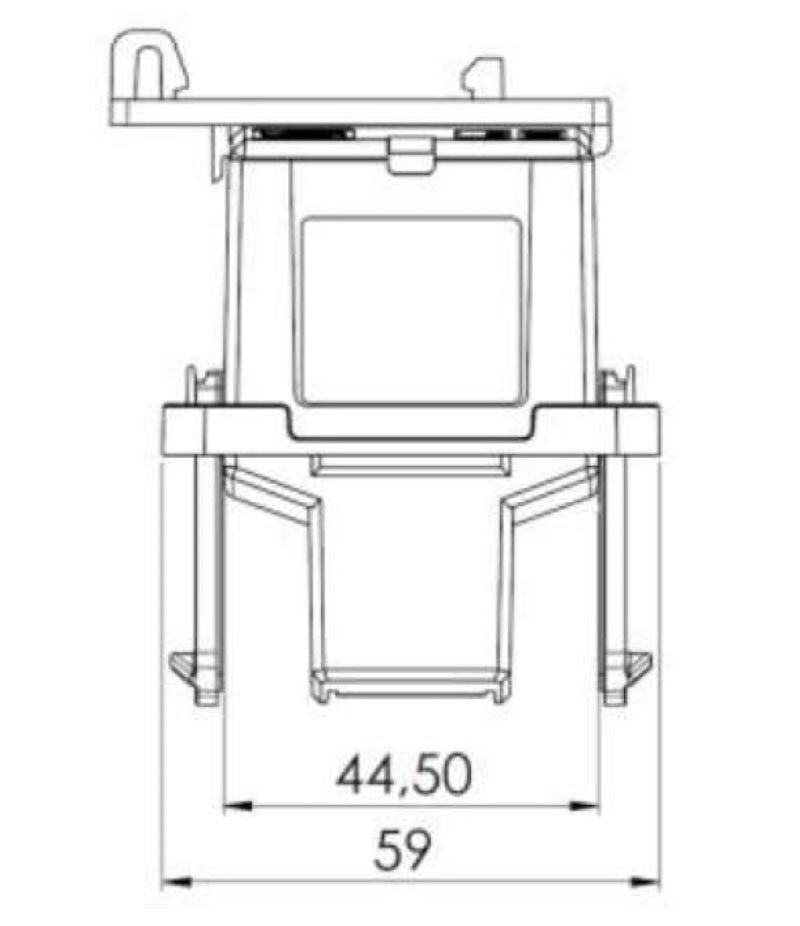

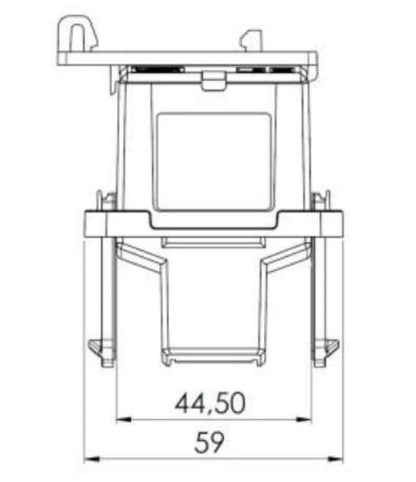

| Depth | 59 mm |
| Height | 80.1 mm |
| Width | 49 mm |
| Net weight | 330 g |
