1482000000 - Split-Core Current Transformer, 250A, RoHS Compliant, 1.5VA
1482000000 - Split-Core Current Transformer, 250A, RoHS Compliant, 1.5VA
SKU: SKU: 1482000000 Download PDF
- 1482000000 - Split-Core Current Transformer, 250A, RoHS Compliant, 1.5VA
- 1482000000 - Split-Core Current Transformer, 250A, RoHS Compliant, 1.5VA
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a powerful split-core current transformer, this device is engineered to manage a primary current of 250 A and provides a secondary current output of up to 1 A It boasts a load capacity of 15 VA and is produced within a tolerance class of 1 Compliant with RoHS standards, it guarantees the absence of harmful substances, making it a safe choice for your electrical measurements Designed for indoor applications, this transformer is an essential tool for precise electrical monitoring.
Features and Benefits:
•Designed for indoor use.
•RoHS compliant under conditions.
•Suitable for insulated conductors only.
•Optimal for measuring high electrical currents.
Specifications:

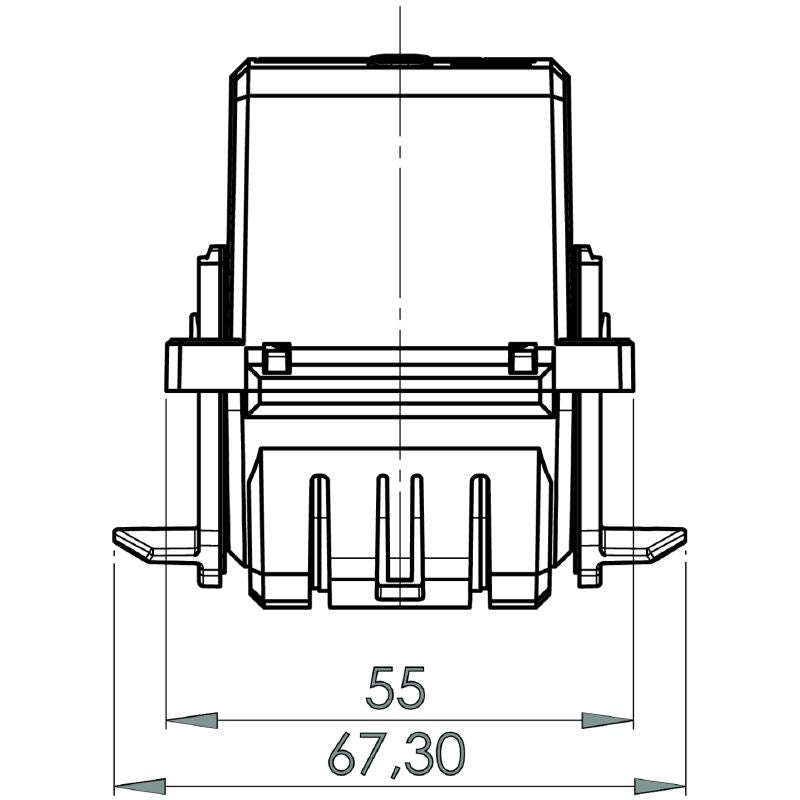

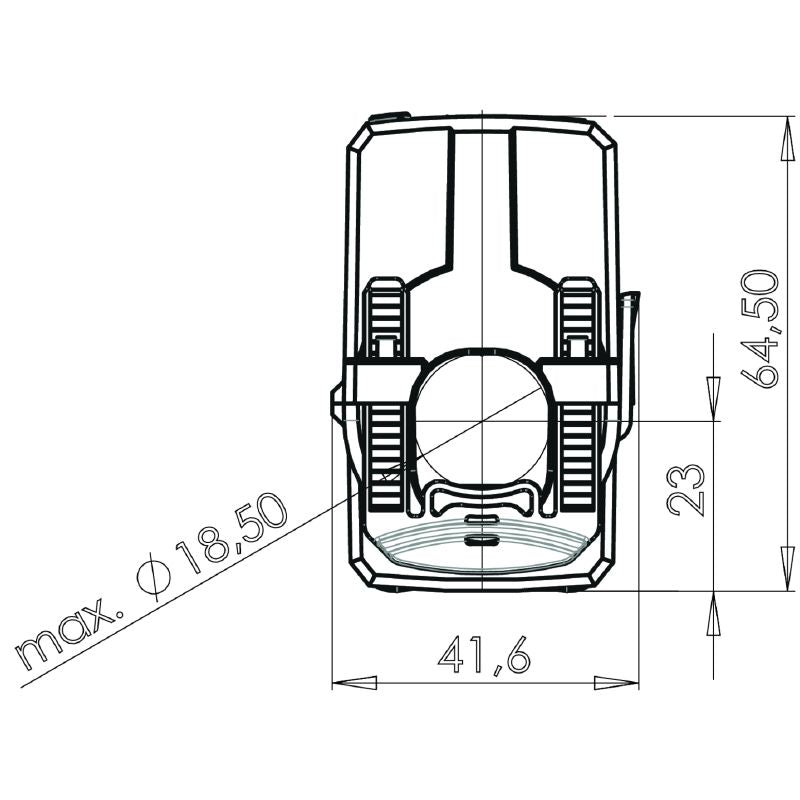

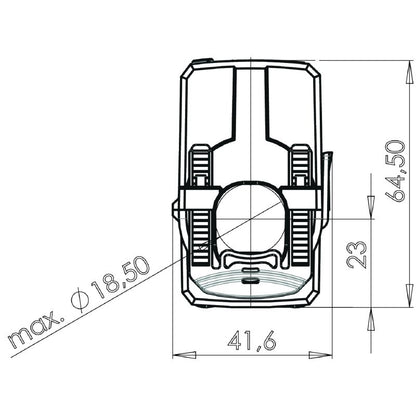

| Depth (mm) | 68 |
| Height (mm) | 64.5 |
| Width (mm) | 41.6 |
| Cable length | 2.5 m |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Operating temperature | -5 °C...50 °C |
| Storage temperature | -25 °C...70 °C |
| Primary current | 250 A |
| Secondary current | 0...1 A |
| Load | 1.5 VA |
| Tolerance class | 1 |
| Insulation coordination | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| ETIM Classification | EC002048 |
| ECLASS Classification | 27-21-09-02 |
