1482020000 - Compact Split-Core Transformer, 50A, 1VA for Indoor Use
1482020000 - Compact Split-Core Transformer, 50A, 1VA for Indoor Use
SKU: SKU: 1482020000 Download PDF
- 1482020000 - Compact Split-Core Transformer, 50A, 1VA for Indoor Use
- 1482020000 - Compact Split-Core Transformer, 50A, 1VA for Indoor Use
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the KCMA-18-50-1A-1VA-3 split-core current transformer, perfect for indoor use It effectively supports a primary current capacity of up to 50 A and a maximum secondary output of 1 A, making it reliable for various applications This transformer has a load capacity of 1 VA and adheres to a tolerance class of 3, ensuring precision in your electrical measurements Constructed in compliance with RoHS standards, it boasts an insulation class of E.

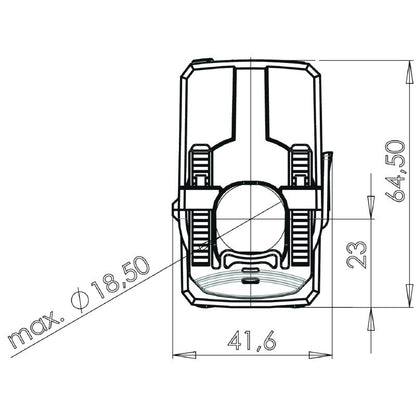

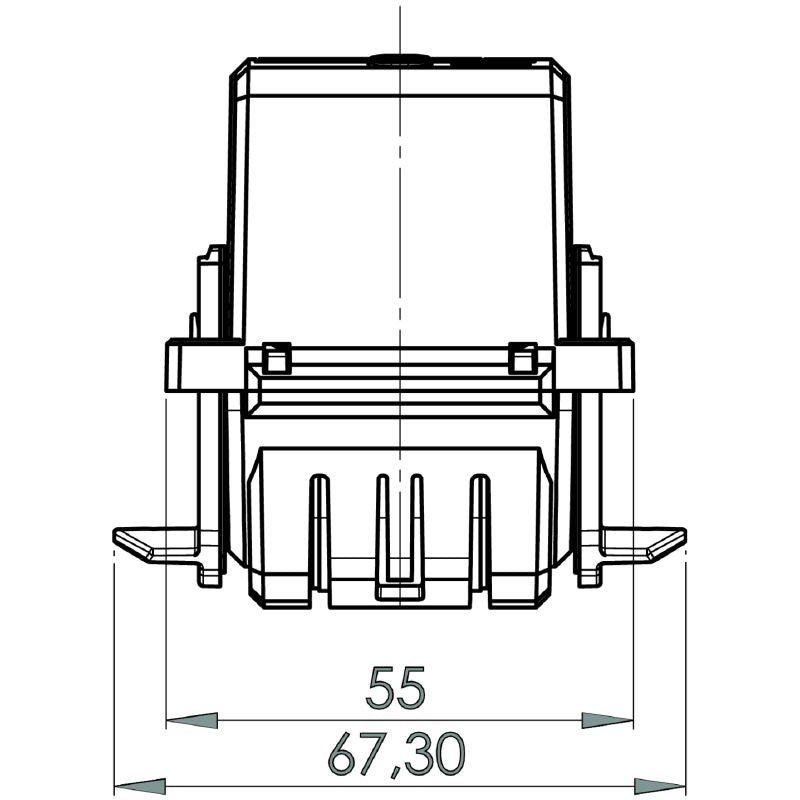

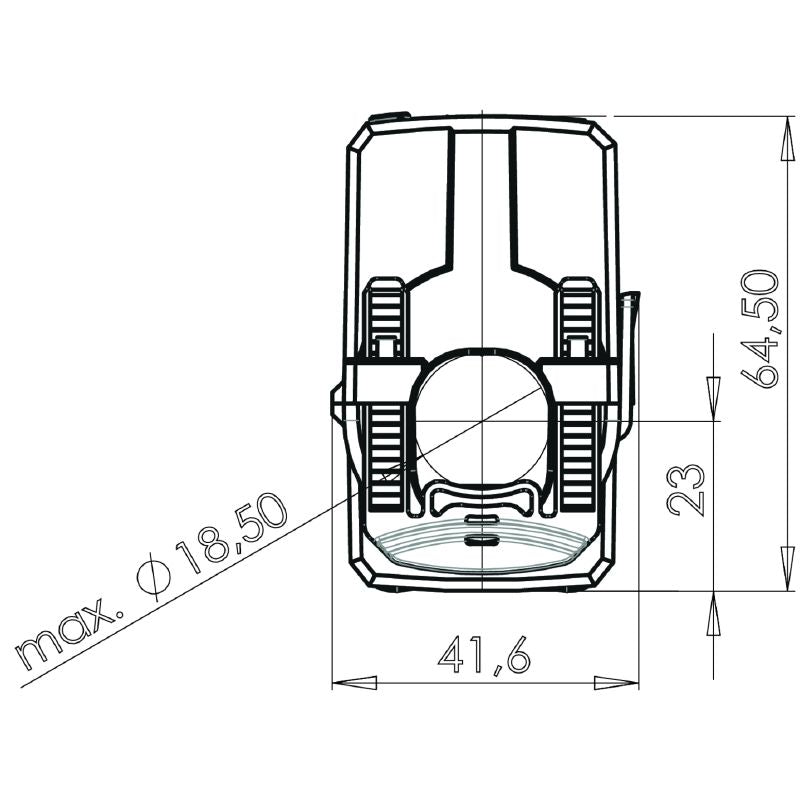

With an operational temperature range of -5 °C to 50 °C, you can trust its performance in diverse conditions Compactly designed, its dimensions are 68 mm in depth, 645 mm in height, and 416 mm in width, allowing for easy installation in limited spaces.
Features and Benefits:
•RoHS compliant without exemption.
•Designed for indoor use.
•Compact dimensions for easier installation.
Specifications:
| Primary current | 50 A |
| Secondary current | 0...1 A |
| Load | 1 VA |
| Tolerance class | 3 |
| Cable length | 2.5 m |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Storage temperature | -25 °C to 70 °C |
| Operating temperature | -5 °C to 50 °C |
| Type of conductor | Insulated conductor only |
| Round conductor | 18.5 mm |
| Insulation coordination standard | IEC 61869-1: 2007, IEC 61869-2: 2012 |
