Description:

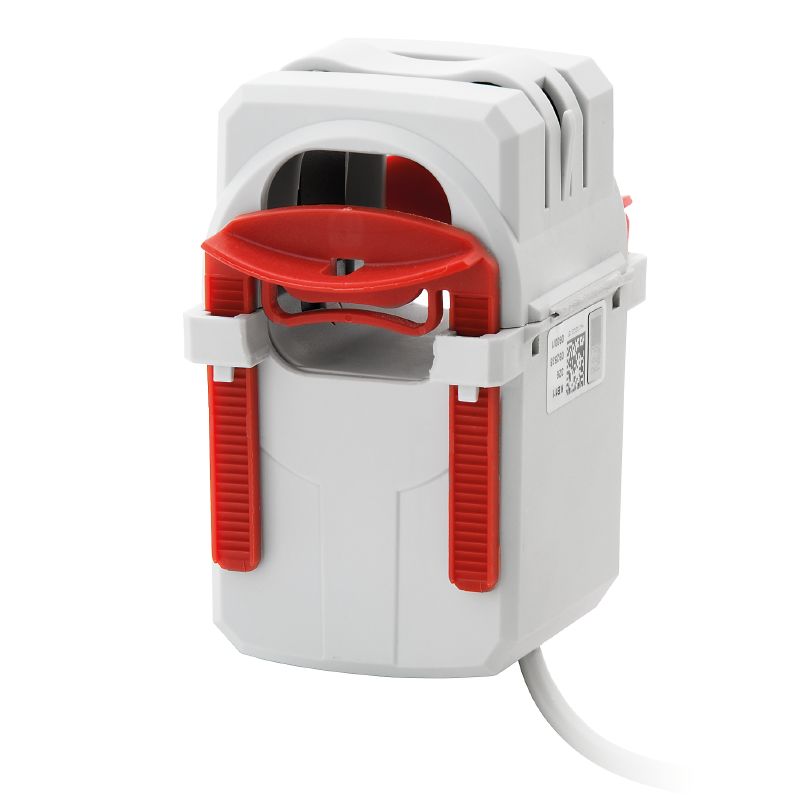

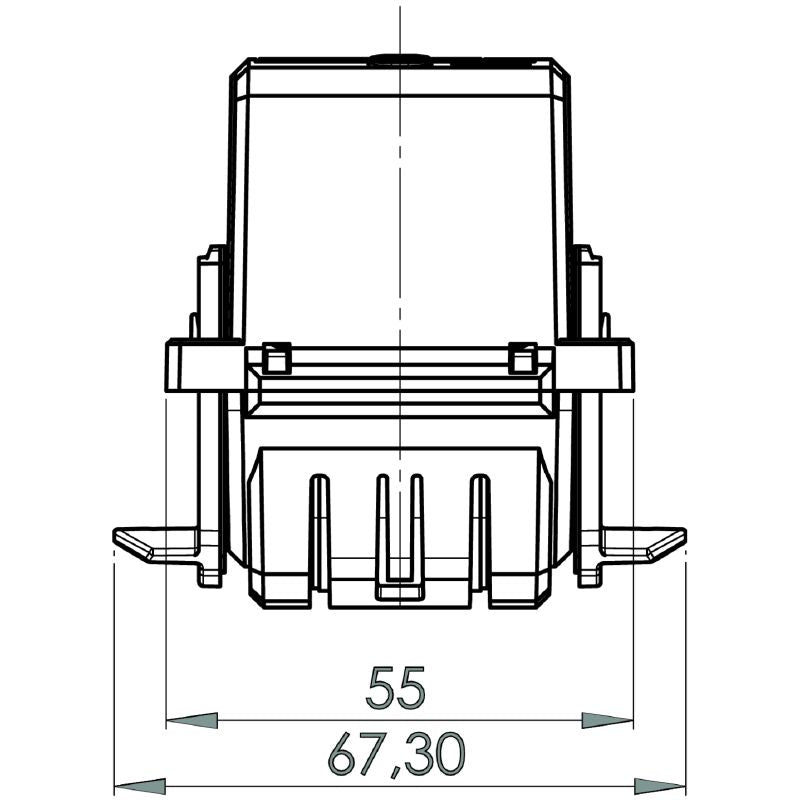

Introducing the KCMA-18-150-1A-2VA-3, an innovative split-core current transformer optimized for indoor applications Capable of handling a primary current of 150 A and a maximum secondary current of 1 A, this transformer boasts a load rating of 2 VA and features a tolerance class of 3, ensuring reliable performance Compliant with RoHS standards, it measures 68 mm deep, 645 mm tall, and 416 mm wide, with a lightweight design at just 1 g.
This device operates efficiently in temperatures ranging from -5 °C to 50 °C and can be stored safely between -25 °C and 70 °C, making it a versatile choice for various environments.
Features and Benefits:
•Compliant with RoHS without exemption.
•Designed for indoor use.
•Insulation class E.
•Protection degree IP20.
Specifications:
| Primary current: | 150 A |
| Secondary current max.: | 1 A |
| Load: | 2 VA |
| Tolerance class: | 3 |
| Cable length: | 2.5 m |

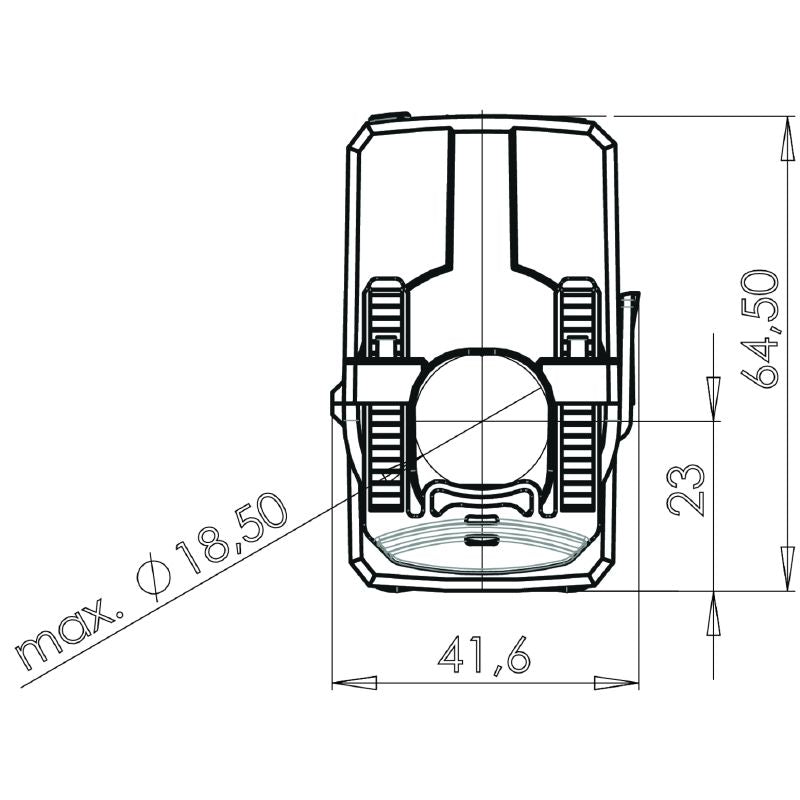

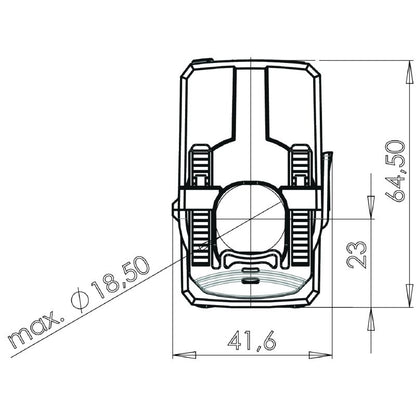

| Round conductor diameter: | 18.5 mm |
| Nominal frequency: | 50 Hz |
| Thermal rated continuous current I thermal: | 1.2 x I rated |
| Insulation coordination standard: | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| Storage temperature: | -25 °C to 70 °C |
| Operating temperature: | -5 °C to 50 °C |
