2603440000 - 60mm Closed-Type Residual Current Transformer, 25A Capacity
2603440000 - 60mm Closed-Type Residual Current Transformer, 25A Capacity
SKU: SKU: 2603440000 Download PDF
- 2603440000 - 60mm Closed-Type Residual Current Transformer, 25A Capacity
- 2603440000 - 60mm Closed-Type Residual Current Transformer, 25A Capacity
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

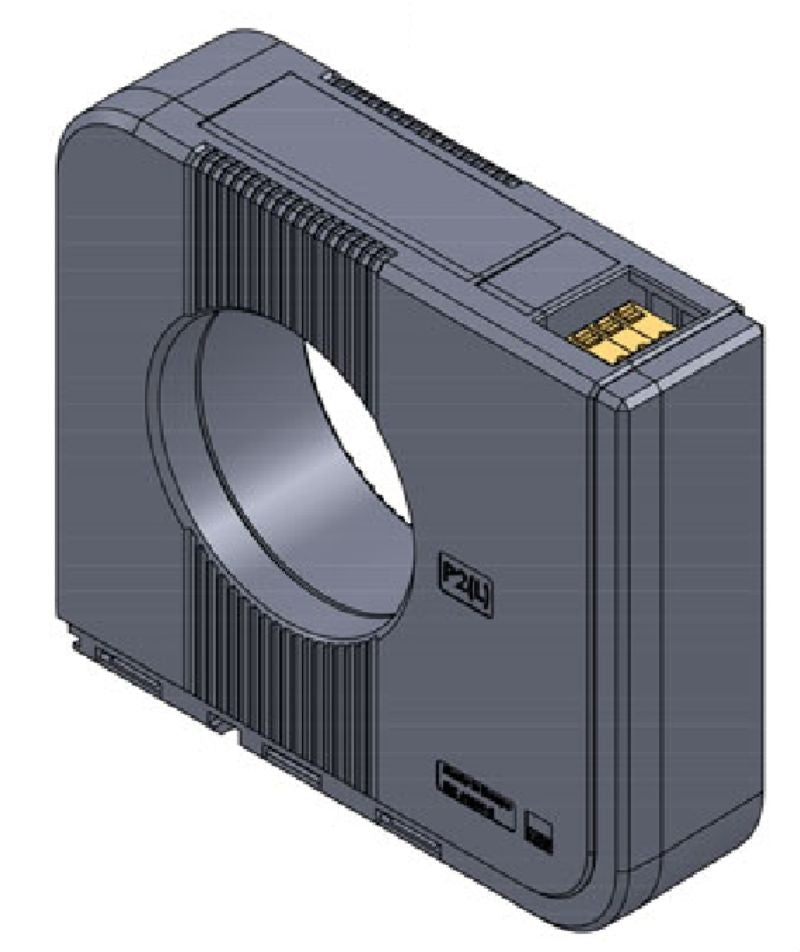

Introducing the CMA-RCM-DACT-60 residual current transformer, expertly designed for measuring primary currents up to 25 A This closed type transformer boasts a round conductor with a diameter of 6000 mm Built for reliability, it adheres to RoHS standards, making it an excellent choice for indoor applications The transformer is also engineered to operate effectively across a range of temperatures and environmental conditions.
Features and Benefits:
•Indoor use only.
•Residual current measuring capability.
•IP40 protection degree.
Specifications:

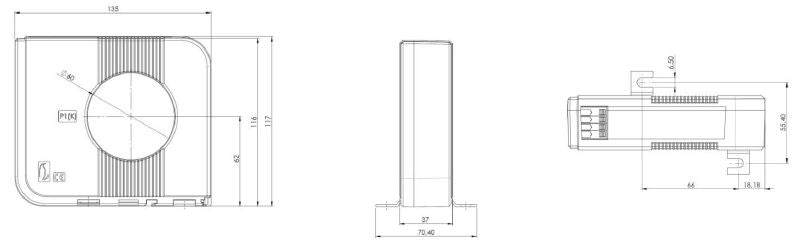

| Depth | 37 mm |
| Height | 117 mm |
| Width | 135 mm |
| Storage temperature | -25 °C to 70 °C |
| Operating temperature | -10 °C to 70 °C |
| Frequency band | 30 Hz to 3 kHz |
| Primary current | 25 A |
| Secondary current | 0 to 0.04 A |
| Load | 0 VA |
| Transmission ratio | 1:600 |
| Input measurement range | 0.02 to 2 A / 0.25 to 25 A depending on terminal assignment |
| Insulation coordination | Galvanic isolation: yes |
| Impulse withstand voltage | 8 kV |
| Pollution severity | 3 |
| Rated voltage | 800 V |
| Coil resistance | 8 Ω |
| Measurement accuracy | Class 1 (IEC 6206-21) |
