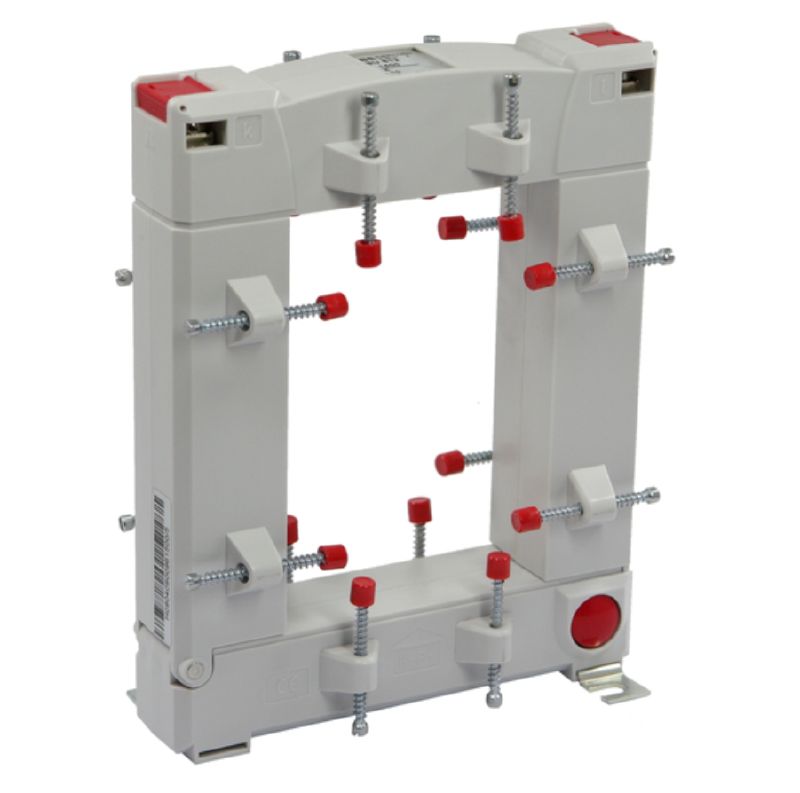

2438480000 - Indoor Split-Core Current Transformer 1500A, 5A, 7.5VA
2438480000 - Indoor Split-Core Current Transformer 1500A, 5A, 7.5VA
SKU: SKU: 2438480000 Download PDF
- 2438480000 - Indoor Split-Core Current Transformer 1500A, 5A, 7.5VA
- 2438480000 - Indoor Split-Core Current Transformer 1500A, 5A, 7.5VA
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience reliable current monitoring with the CMA-812-15-5A-75VA-05 split-core current transformer Featuring a robust primary current rating of 1500 A and a maximum secondary current of 5 A, this transformer boasts a load capacity of 75 VA With a precision tolerance class of 05, it's expertly crafted for indoor applications and fully compliant with RoHS standards Optimize your electrical setup with this efficient and dependable device.
Features and Benefits:
•RoHS compliant.
•Indoor installation.
•Split-core design.
Specifications:
| Primary current | 1,500 A |
| Secondary current | 0...5 A |
| Load | 7.5 VA |
| Tolerance class | 0.5 |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Storage temperature | -25 °C...40 °C |
| Operating temperature | -5 °C...40 °C |

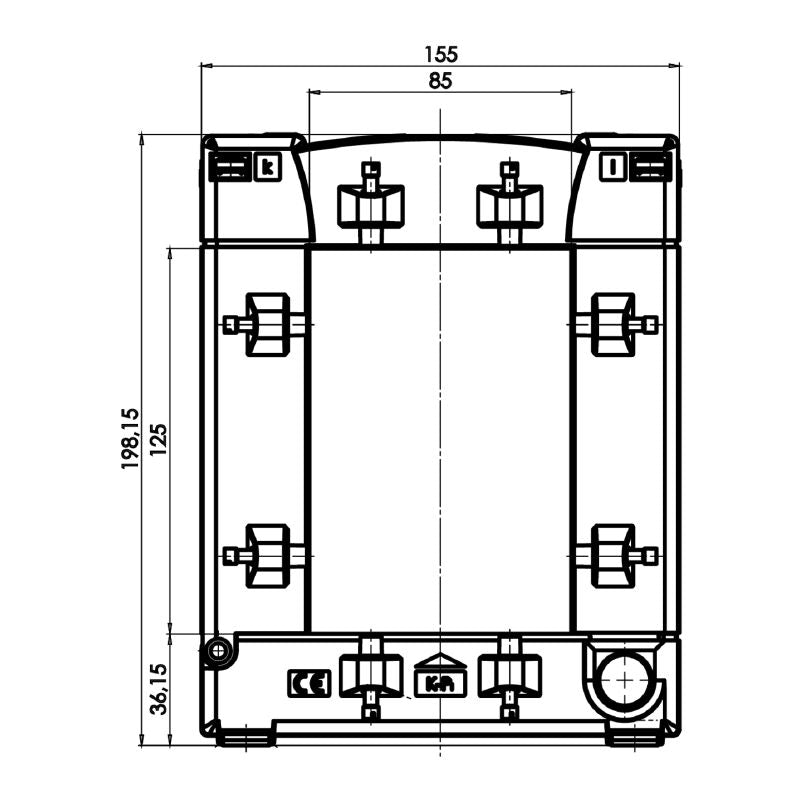

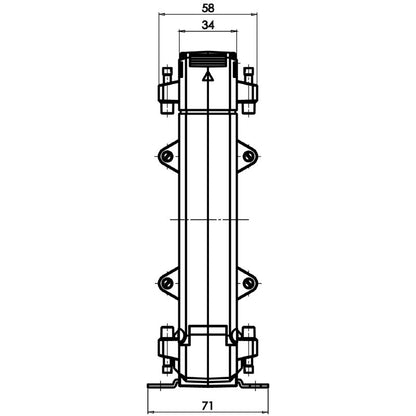

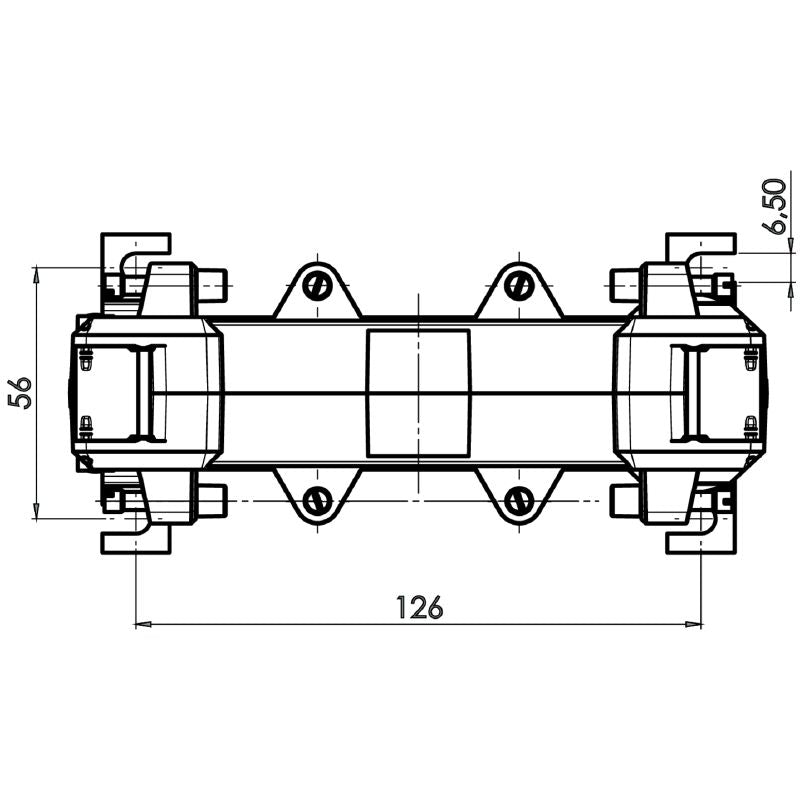

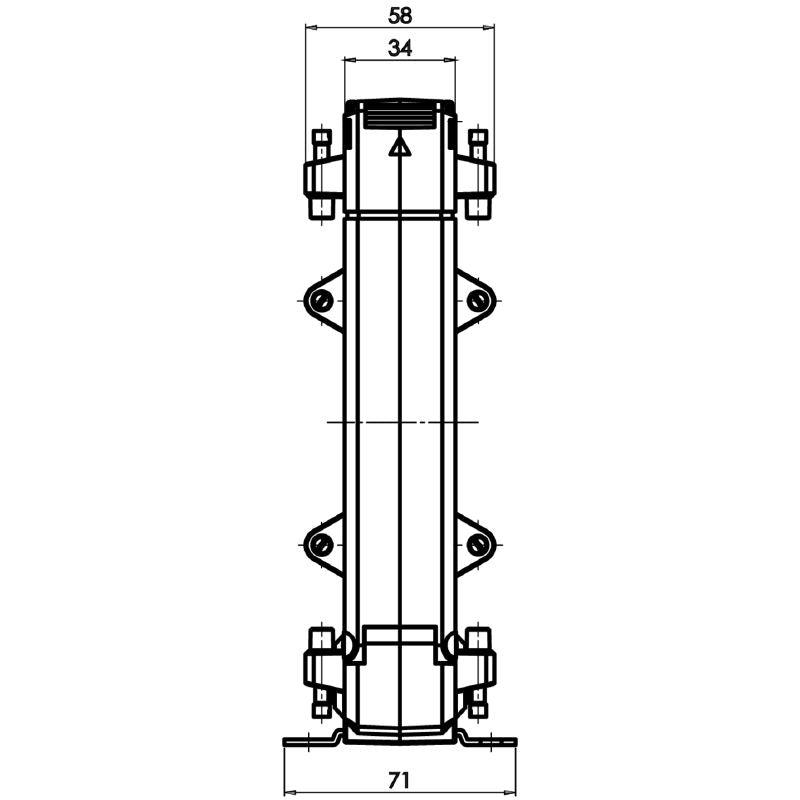

| Depth | 58 mm |
| Height | 198 mm |
| Width | 155 mm |
| Net weight | 998 g |
| Insulation coordination | IEC 61869-1: 2007, IEC 61869-2: 2012 |
