Description:

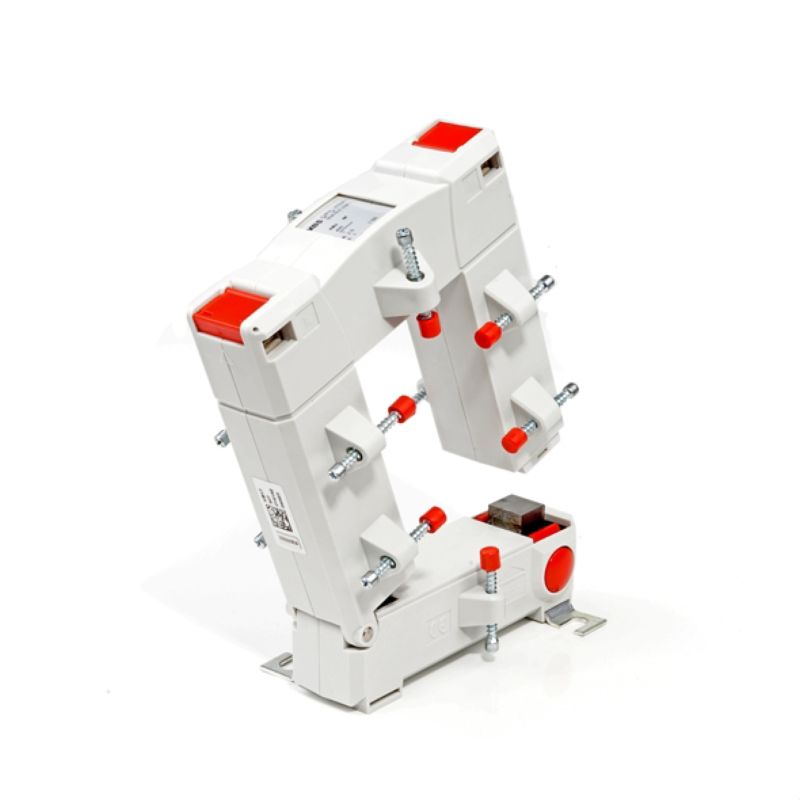

The KCMA 5-250-5A-15VA-1 is a reliable split-core current transformer crafted for electrical current measurements With a primary current capability of 250 A and a secondary current output of up to 5 A, this device operates with a power load of 15 VA Fully compliant with RoHS standards, it is free from any exemptions Designed for indoor applications, it boasts an IP20 protection rating and functions effectively in temperatures ranging from -5 °C to 40 °C, making it versatile for various settings.
Features and Benefits:
•RoHS compliant without exemptions.
•Suitable for indoor installation.
•Operates within a temperature range of -5 °C to 40 °C.
•Protection degree rating of IP20.
Specifications:
| Primary current | 250 A |
| Secondary current | 0...5 A |
| Load | 1.5 VA |
| Tolerance class | 1 |
| Nominal frequency | 50 Hz |
| Insulation coordination | Standard IEC 61869-2: 2012 |

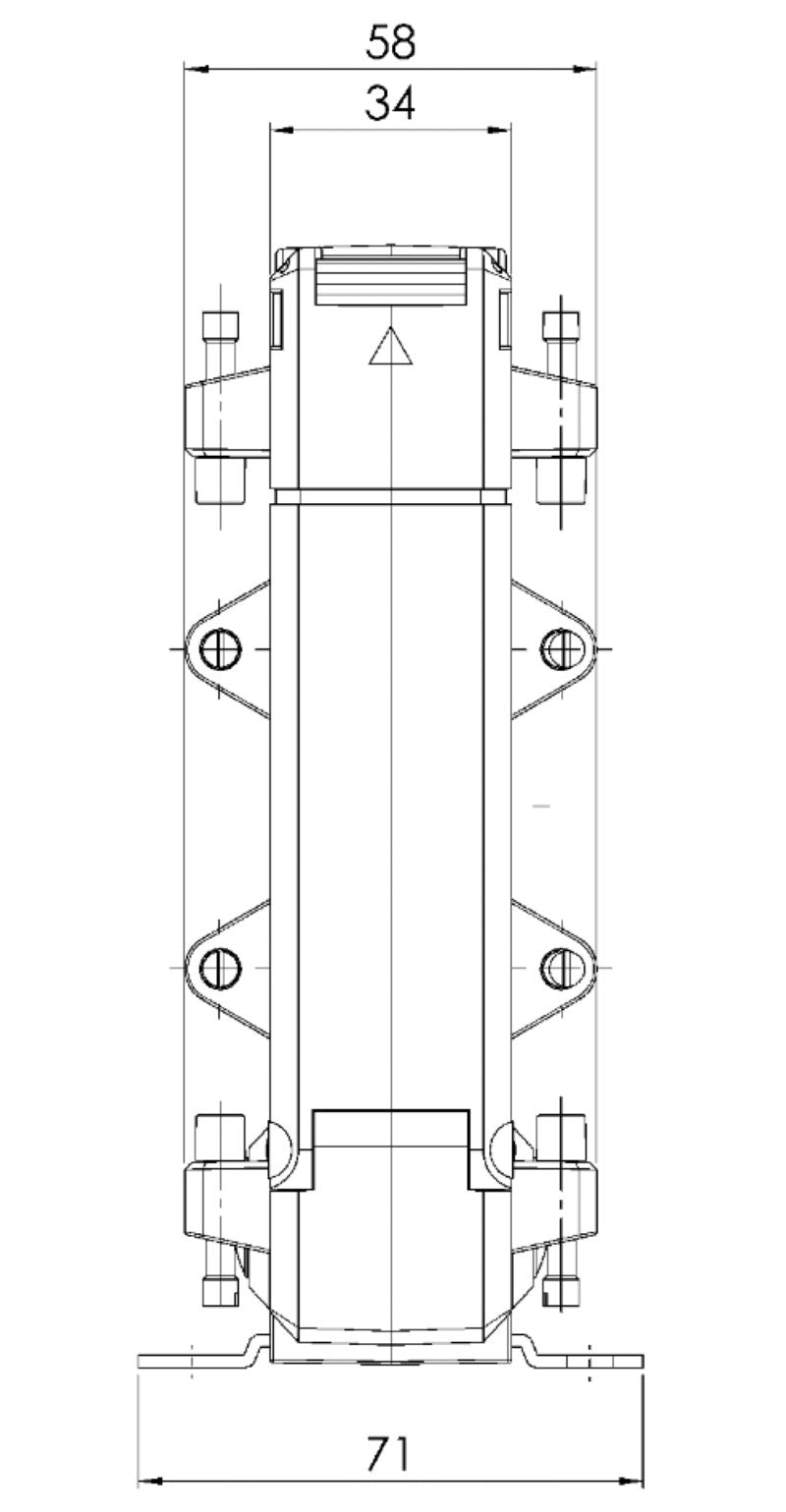

| Depth | 58 mm |

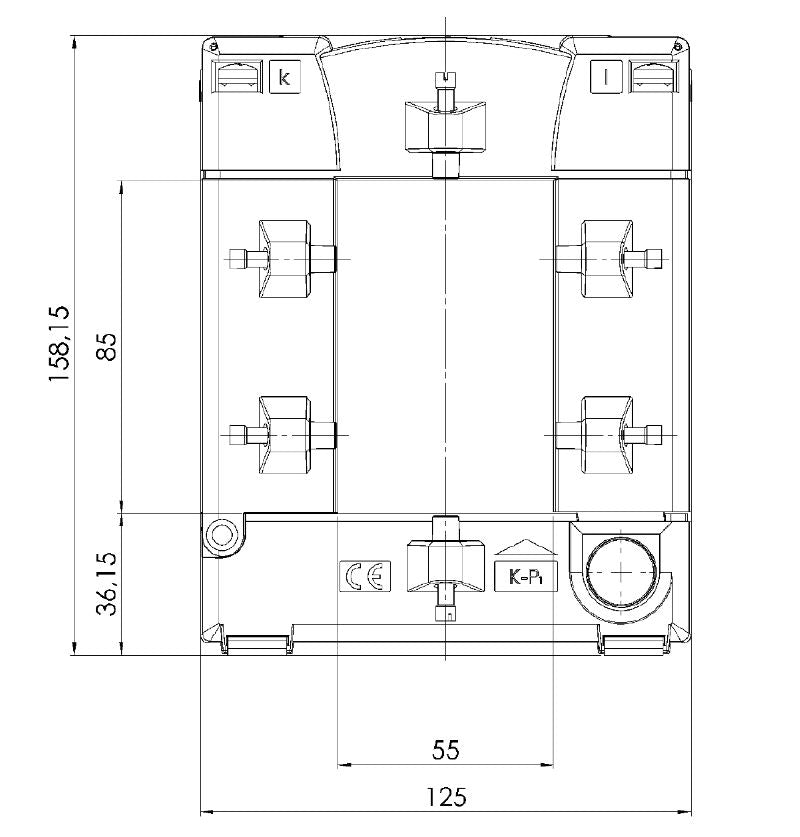

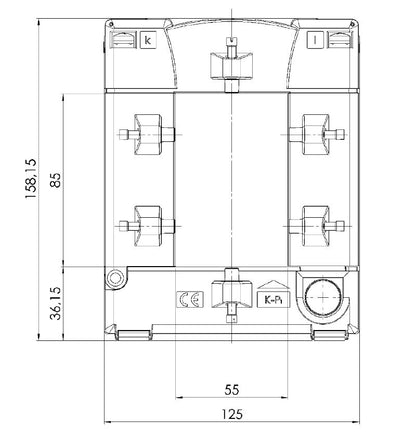

| Height | 158 mm |
| Width | 125 mm |
