Description:
Introducing the KCMA-42-500-5A-5VA-1 split-core current transformer, engineered for efficiency with a primary current rating of 500 A and a maximum secondary current output of 5 A, supporting a 5 VA load Its compact design—measuring 69 mm in depth, 96 mm in height, and 67 mm in width—makes it ideal for various indoor applications This transformer operates effectively within a temperature range of -5 °C to 50 °C and complies with RoHS standards, ensuring safety and reliability without any exemptions.
Additionally, its insulated conductor type enhances operational safety, making it a perfect choice for your electrical needs.
Features and Benefits:
•RoHS compliant without exemption.
•Suitable for indoor use.
•Compact design with a depth of 69 mm, height of 96 mm, and width of 67 mm.
•Rated for a primary current of 500 A and secondary current up to 5 A.
Specifications:
| Primary current | 500 A |
| Secondary current | 0...5 A |
| Load | 5 VA |
| Tolerance class | 1 |
| Cable length | 0.5 m |
| Protection degree | IP20 |
| Operating temperature | -5 °C...50 °C |

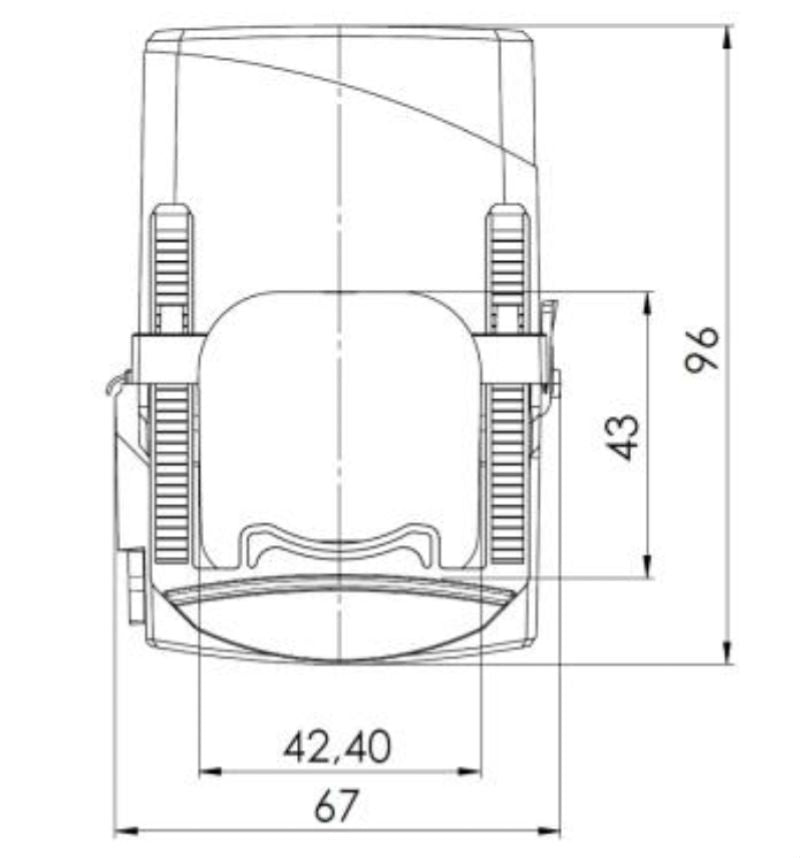

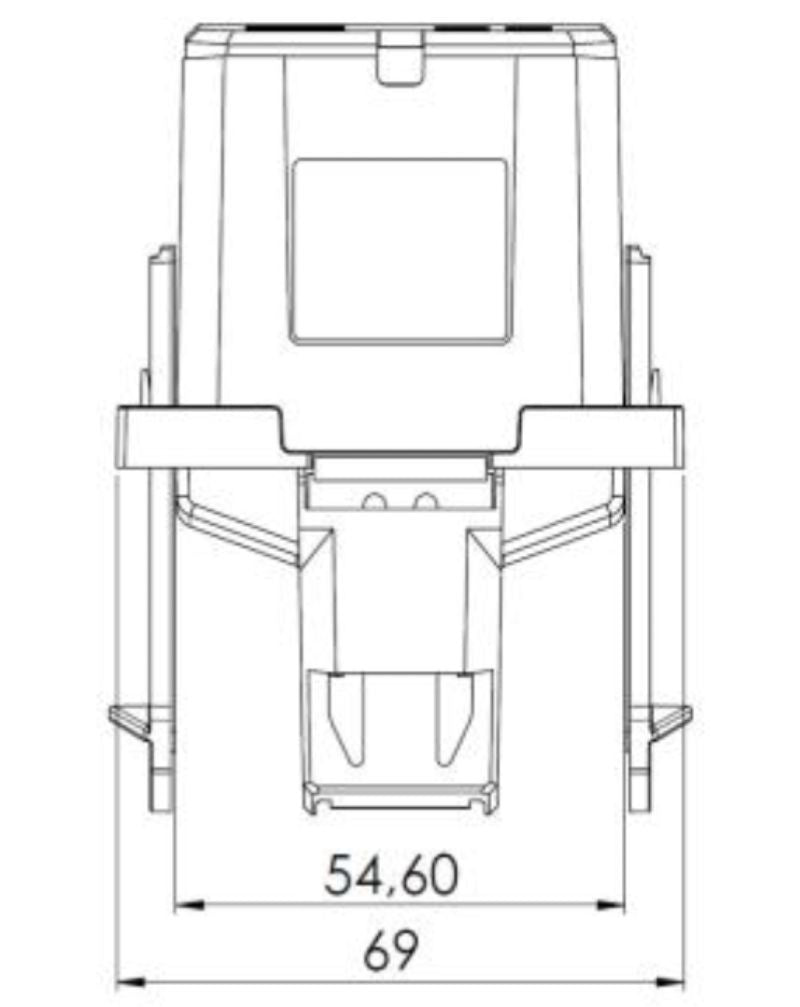

| Dimensions | {'Depth': '69 mm', 'Height': '96 mm', 'Width': '67 mm'} |
