Description:
Introducing the CMA-31-300-5A-5VA-05, a reliable closed current transformer that accommodates a primary current of 300 A with a corresponding maximum secondary current of 5 A, tailored for a load capacity of 5 VA This transformer boasts a tolerance class of 05 and is compliant with ROHS standards, ensuring it meets essential industry guidelines for safety and performance.
Features and Benefits:
•Closed current transformer.
•ROHS compliant.
•Insulated conductor only type.
•Suitable for indoor use.
Specifications:

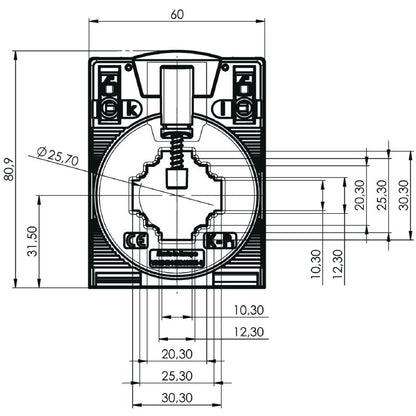

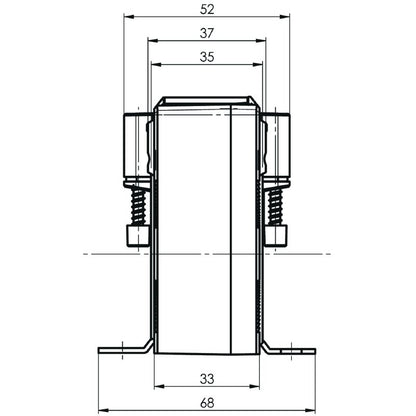

| Depth | 52 mm |
| Height | 80.9 mm |
| Width | 60 mm |
| Storage temperature | -25 °C...70 °C |
| Operating temperature | -5 °C...50 °C |
| Load | 5 VA |
| Primary current | 300 A |
| Secondary current | 0...5 A |
| Tolerance class | 0.5 |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Thermal rated continuous current I thermal | 1.2 x I rated |
| Insulation coordination Standard | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| Round conductor | 25.7 mm |
| Rail | 20 x 20 mm, 25 x 12 mm, 30 x 10 mm |
