Description:

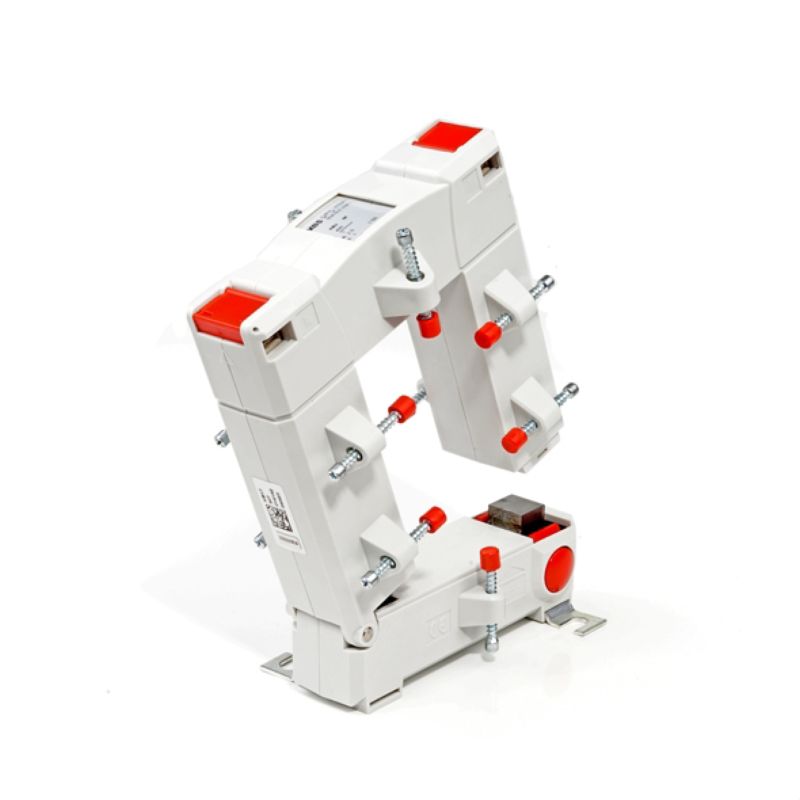

The KCMA 5-600-5A-25VA-05 is a split-core current transformer engineered for accurate measurements With a primary current rating of 600 A and a secondary current maximum of 5 A, it boasts a load capacity of 25 VA Compliant with RoHS regulations, this device is certified for general applications It operates efficiently within a temperature range of -5 °C to 40 °C, making it ideal for indoor use.
Features and Benefits:
•Compliant with RoHS without exemptions.
•Insulated conductor only type supported.
•Designed for indoor installation.
Specifications:
| Primary current | 600 A |
| Secondary current | 0...5 A |
| Load | 2.5 VA |
| Tolerance class | 0.5 |

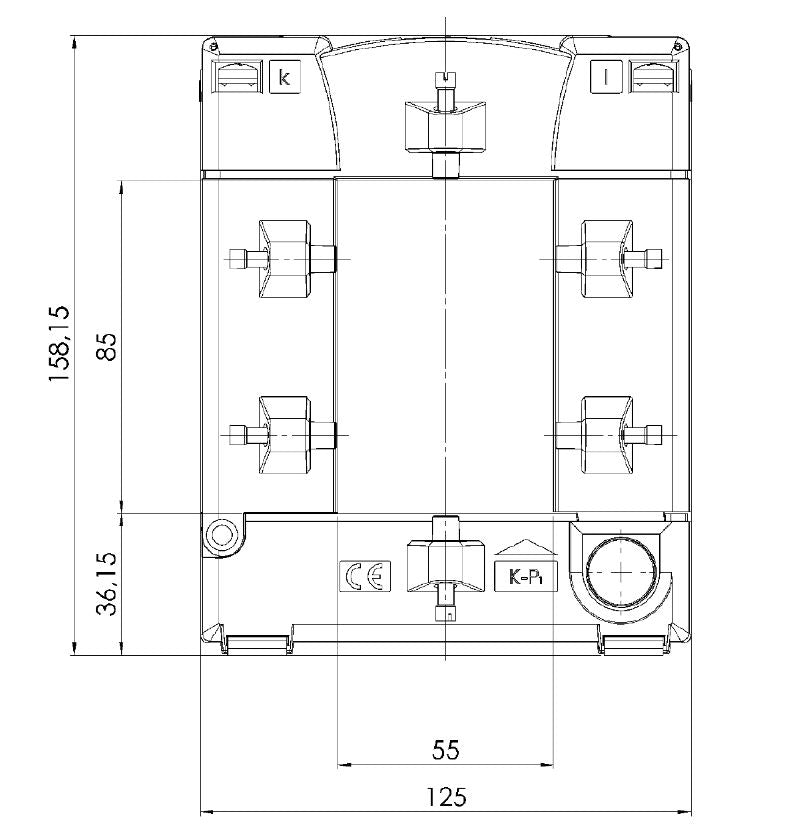

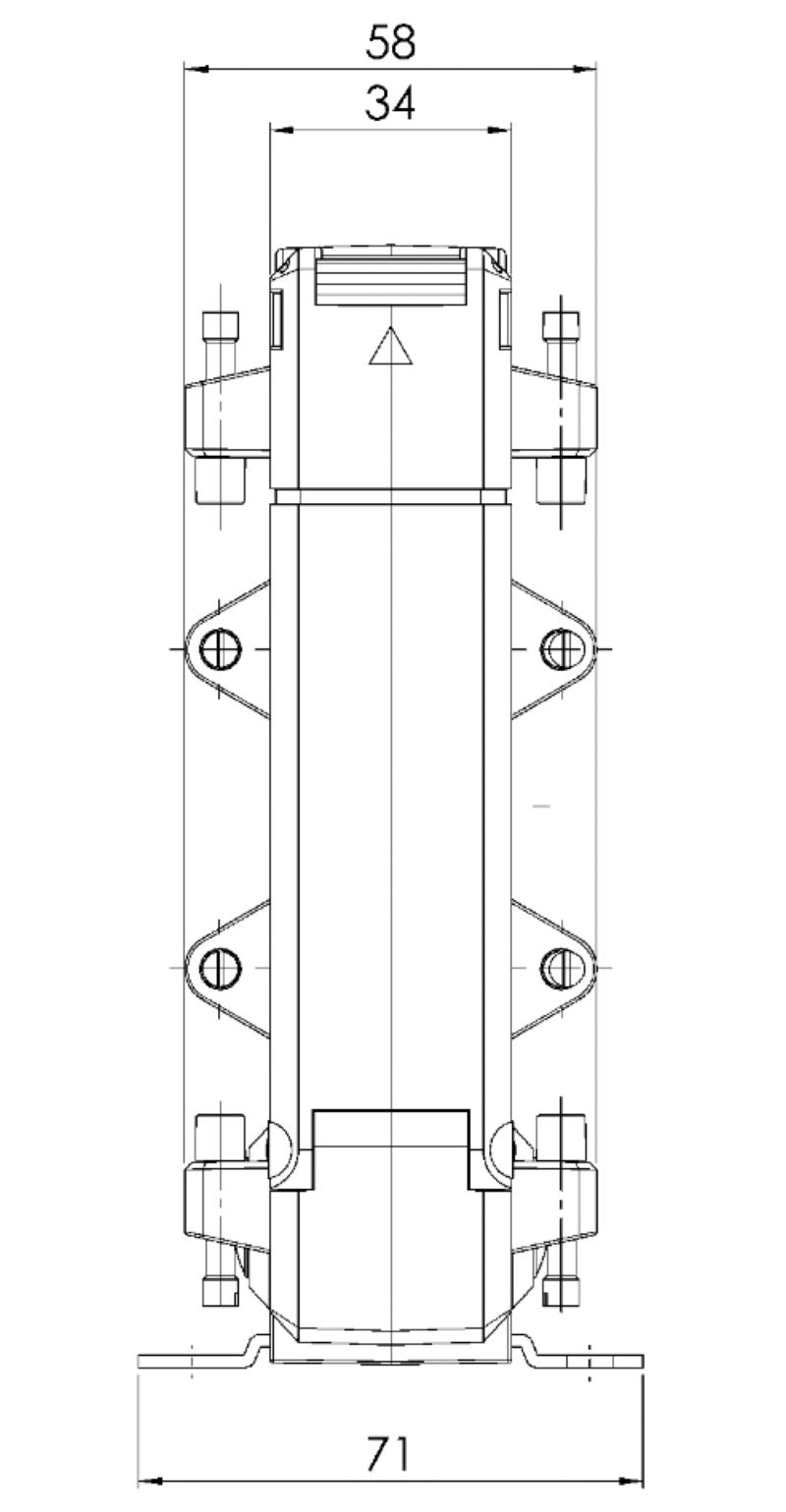

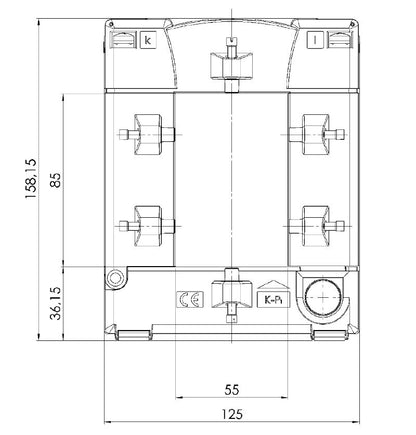

| Dimensions (Depth) | 58 mm |
| Dimensions (Height) | 158 mm |
| Dimensions (Width) | 125 mm |
| Cable length | 0.5 m |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Insulation coordination | IEC 61869-2: 2012 |
| Operating temperature | -5 °C...40 °C |
