Description:

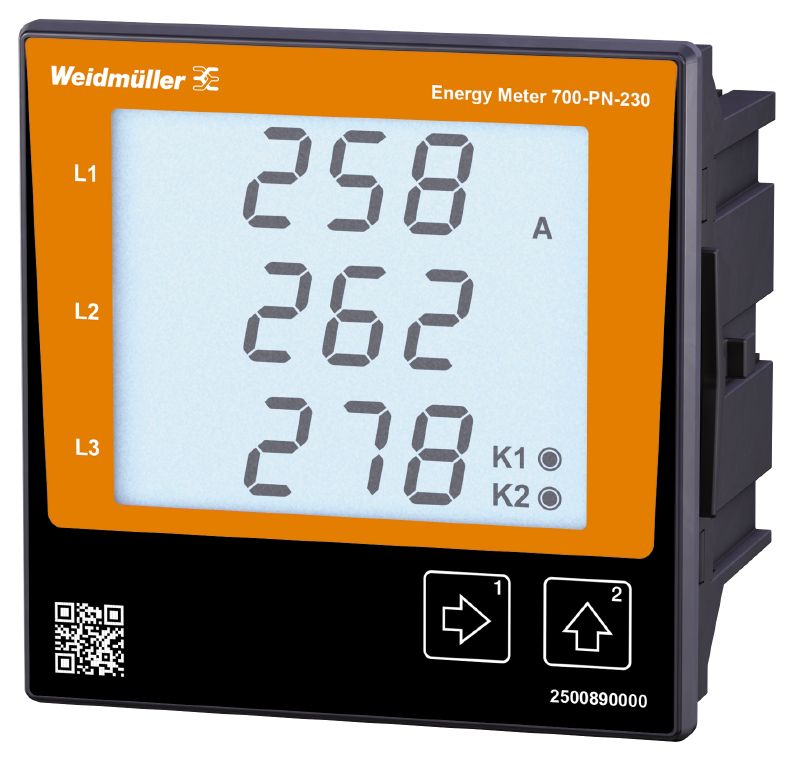

Elevate your energy management with this advanced energy meter, crafted for measuring and displaying power in both single-phase and three-phase electrical systems This device enhances your energy monitoring capabilities and comes with multiple certifications, including CE, RoHS compliance, and UL approval It features several current-measuring channels and offers precise voltage and current measurements.
Easy to read, the user-friendly LCD display allows for straightforward operation, while its design facilitates front panel mounting Built to operate effectively in diverse conditions, this energy meter functions seamlessly in temperatures ranging from -10 °C to 55 °C.
Features and Benefits:
•Compliant without exemptions to RoHS standards.
•Three-wire and four-wire system compatibility.
•Supports measurements of up to 5000 A.
•Can measure voltage in both L-L and L-N configurations (480 V and 277 V respectively).
•Integrated logic for advanced functionality.
•User-programmable update intervals.
•Power measurement and display for 1- and 3-phase mains.
Specifications:
| Operating temperature | -10 °C to 55 °C |
| Storage temperature | -25 °C to 70 °C |
| Rated current | 1 / 5 A |
| Max. current | 5000 A |
| Supply voltage | 90 - 277 V AC (50/60 Hz) and 90 - 250 V DC |
| Protection degree | IP20 and IP40 |
| Input frequency | <20 Hz |
| Number of digital inputs | 3 |
| Number of digital outputs | 5 |
| Analogue inputs | 2 |
| Display monitoring | LCD |
| Memory | Yes, for minimum and maximum values |

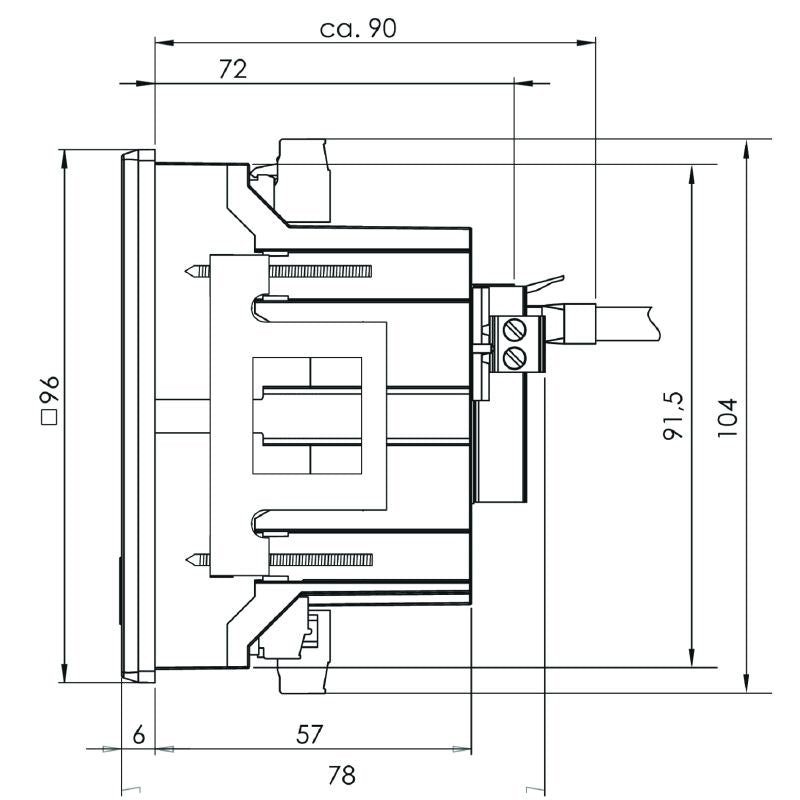

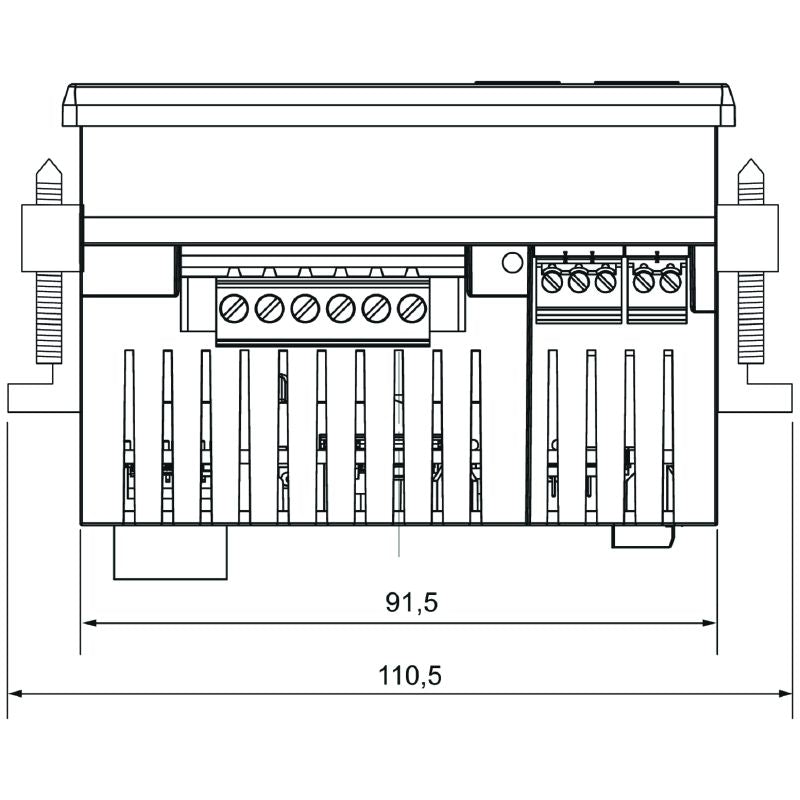

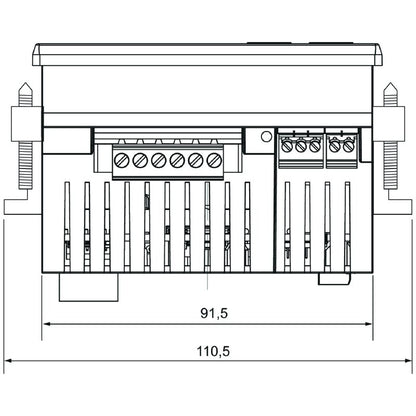

| Dimensions | 96 mm x 96 mm x 72 mm |
| Net weight | 265 g |
