2753240000 - 42mm Split-Core Current Transformer, 400A Primary, 5A Secondary
2753240000 - 42mm Split-Core Current Transformer, 400A Primary, 5A Secondary
SKU: SKU: 2753240000 Download PDF
- 2753240000 - 42mm Split-Core Current Transformer, 400A Primary, 5A Secondary
- 2753240000 - 42mm Split-Core Current Transformer, 400A Primary, 5A Secondary
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

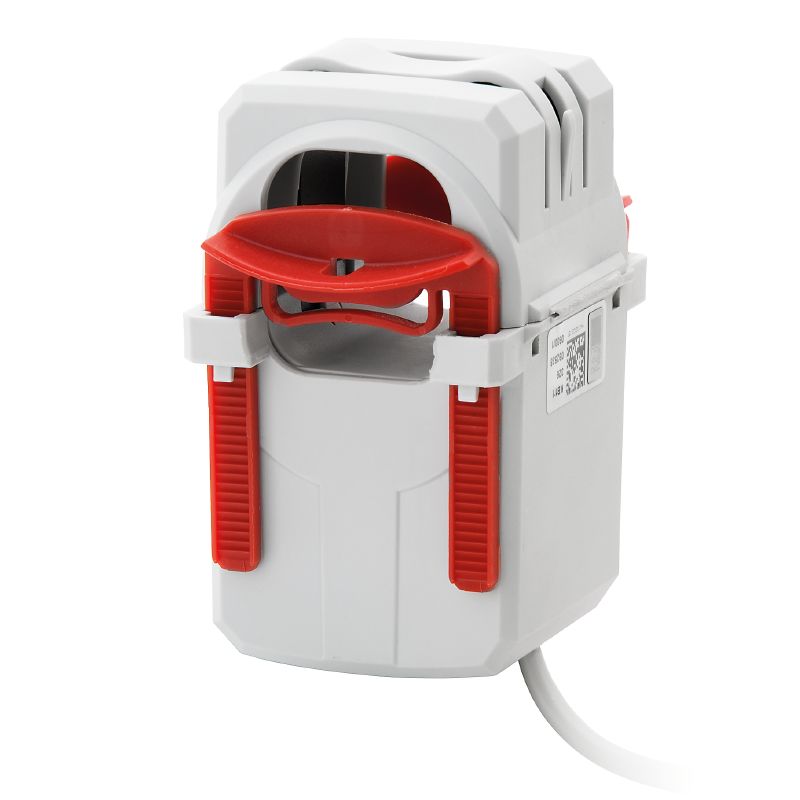

Experience reliable performance with the KCMA-42-400-5A-5VA-1 split-core current transformer Capable of accommodating a primary current of up to 400 A and a secondary current of 5 A, this transformer also has a load capacity of 5 VA It meets RoHS standards, ensuring safety and compliance Designed for indoor applications, it features insulated conductors and is compatible with round conductors up to 42 mm in diameter, making it a practical choice for various installations.
Features and Benefits:
•RoHS compliant without exemption.
•Designed for indoor use.
•Working temperature range from -5 °C to 50 °C.
Specifications:

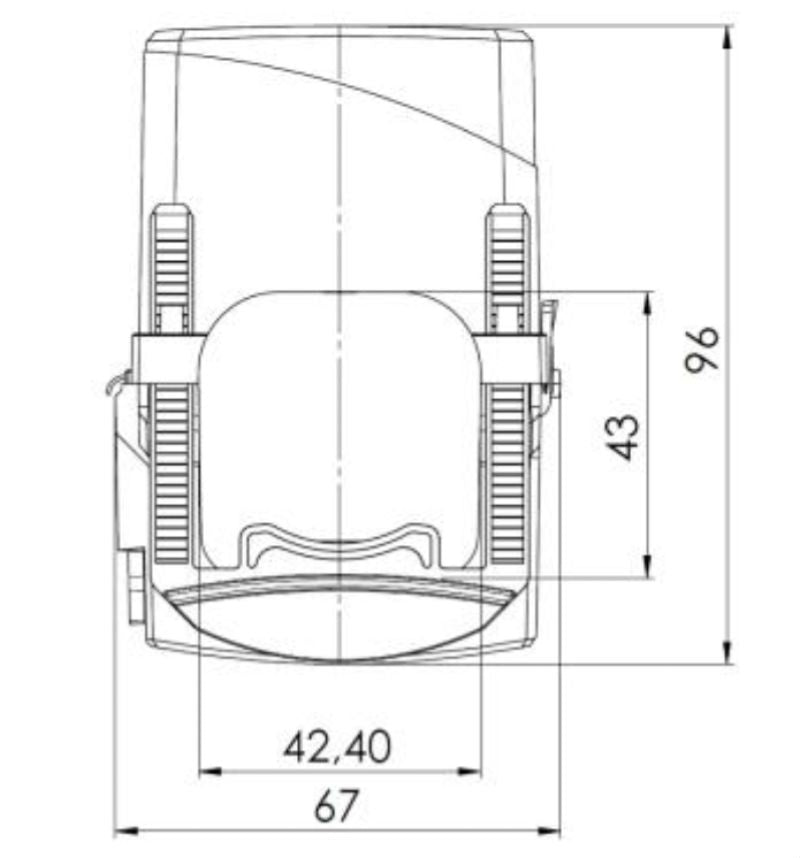

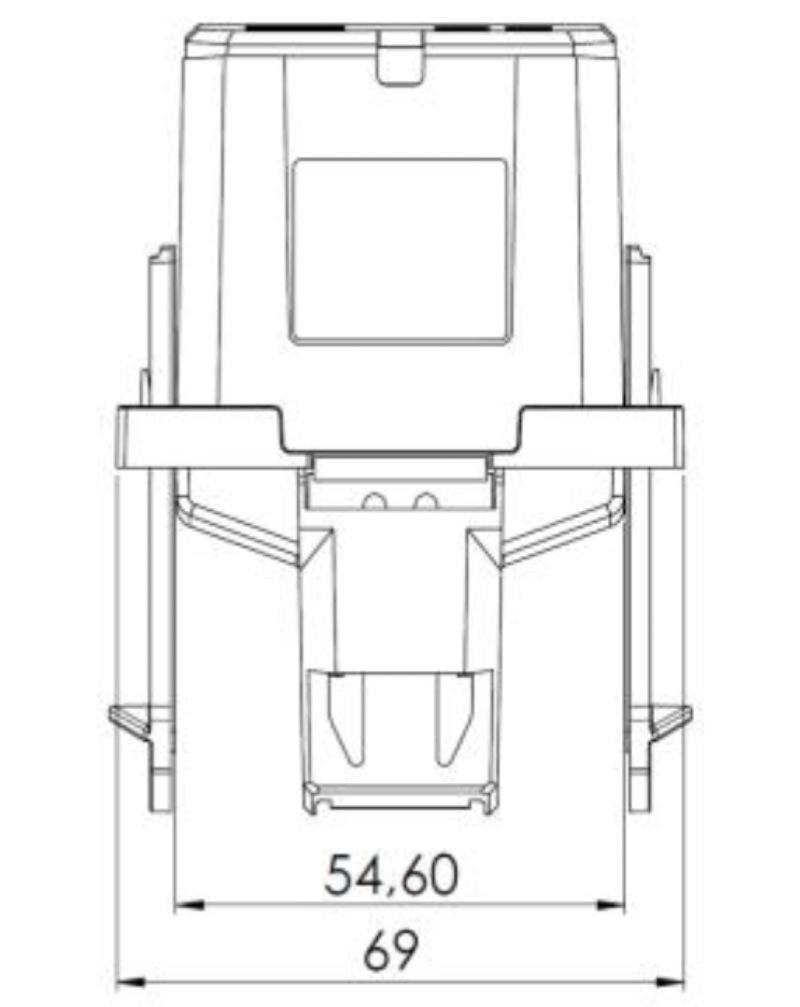

| Depth | 69 mm |
| Height | 96 mm |
| Width | 67 mm |
| Cable length | 0.5 m |
| Protection degree | IP20 |
| Primary current | 400 A |
| Secondary current | 0...5 A |
| Load | 5 VA |
| Tolerance class | 1 |
