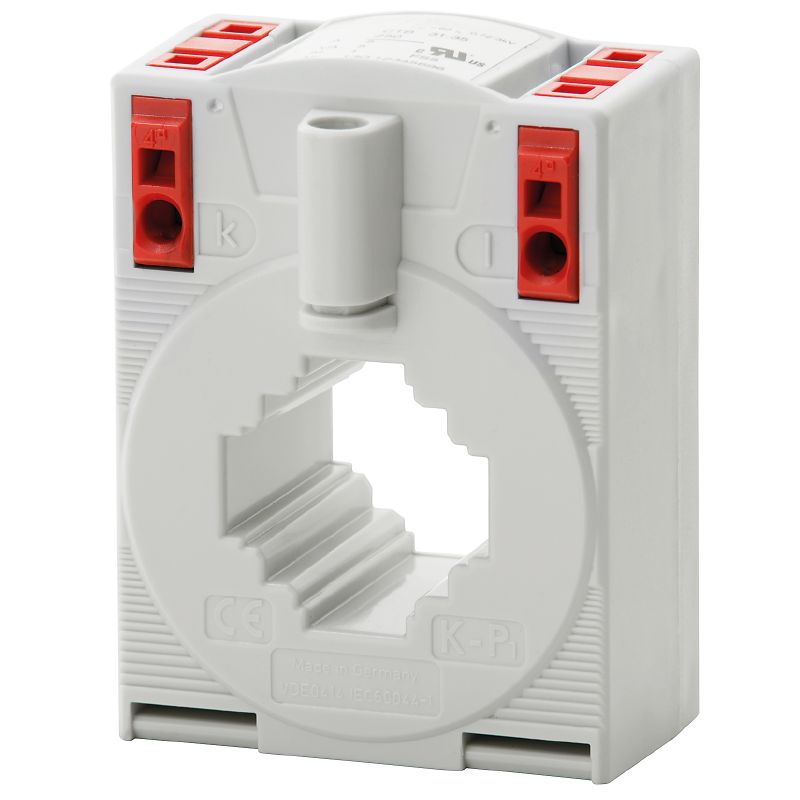

CMA-31-250-5A-5VA-0,5 - 250A Closed Current Transformer, RoHS Compliant
CMA-31-250-5A-5VA-0,5 - 250A Closed Current Transformer, RoHS Compliant
SKU: SKU: 1482050000 Download PDF
- CMA-31-250-5A-5VA-0,5 - 250A Closed Current Transformer, RoHS Compliant
- CMA-31-250-5A-5VA-0,5 - 250A Closed Current Transformer, RoHS Compliant
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the CMA-31-250-5A-5VA-05, a robust closed current transformer designed for efficient performance It boasts a primary current rating of 250 A and supports a secondary current of up to 5 A, with a maximum load capability of 5 VA With a tolerance class of 05, this transformer is compliant with RoHS regulations, making it a responsible choice for your energy needs Ideal for indoor use, it is specifically crafted to accommodate insulated conductors, ensuring safety and reliability in your applications.
Features and Benefits:
•Compliant with RoHS without exemption.
•Indoor use only.
Specifications:
| Primary current | 250 A |
| Secondary current | 0...5 A |
| Load | 5 VA |
| Tolerance class | 0.5 |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Thermal rated continuous current I thermal | 1.2 x I rated |
| Storage temperature | -25 °C...70 °C |
| Operating temperature | -5 °C...50 °C |

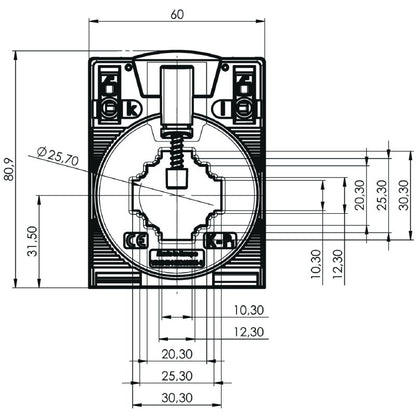

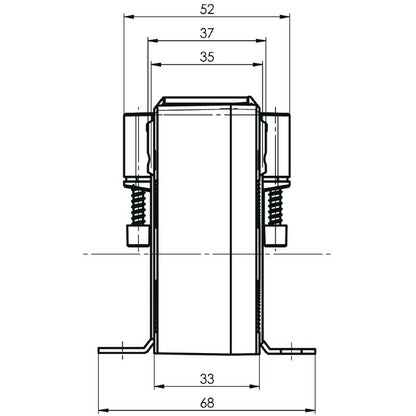

| Dimensions | {'Depth': '52 mm', 'Height': '80.9 mm', 'Width': '60 mm'} |
| Installation location | Indoor use |
| Insulation coordination | Standard IEC 61869-1: 2007, IEC 61869-2: 2012 |
| Live conductor type | Insulated conductor only |
| Round conductor | 25.7 mm |
| Rail dimensions | 20 x 20 mm, 25 x 12 mm, 30 x 10 mm |
| ETIM classification | EC002048 |
| ECLASS classification | 27-21-09-02 |
