Description:

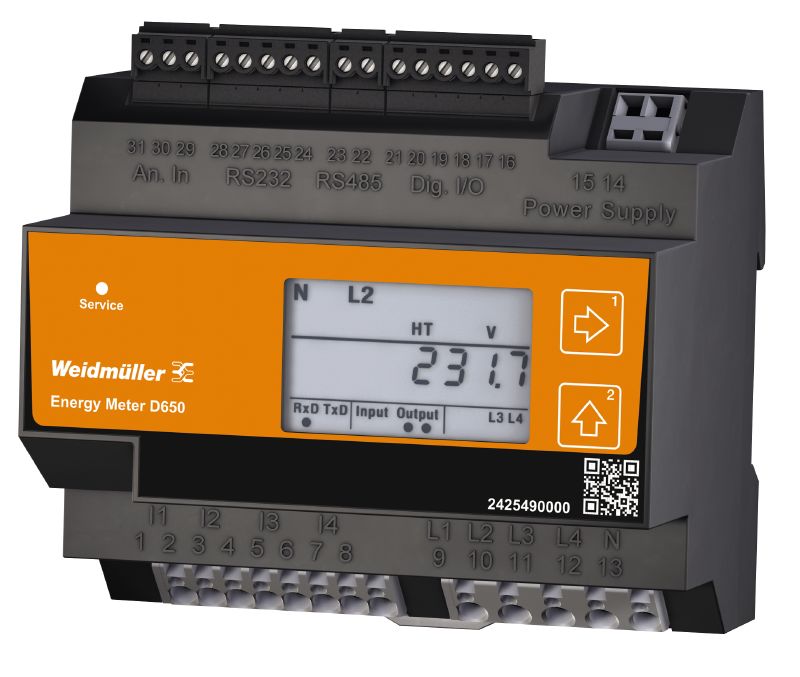

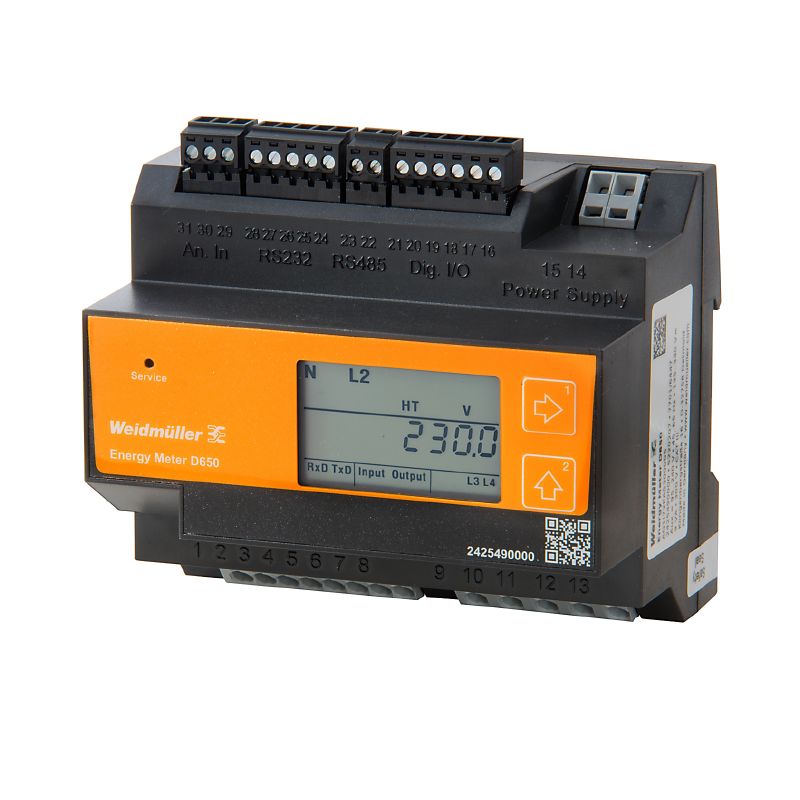

Monitor your energy consumption effortlessly with the ENERGY METER D650 This device efficiently measures and displays power levels for both single-phase and three-phase mains Its versatile specifications guarantee adherence to a wide range of standards, making it a reliable choice for various applications.
Features and Benefits:
•RoHS compliant without exemptions.
•Memorizes minimum and maximum values with a memory size of 4MB.
•Supports RS232 and RS485 communication interfaces.
•Integrated logic functionality.
•Continuous measurement capability.
Specifications:
| Operating temperature: | -10 °C to 55 °C |
| Storage temperature: | -20 °C to 70 °C |
| Protection degree: | IP20 |
| Max. current: | 5000 A |
| Rated current: | 1 / 5 A |
| Measuring accuracy for current: | 0.25 % |
| Measuring accuracy for voltage: | 0.2 % |
| Supply voltage: | 95 - 240 V AC, 135 - 340 V DC |
| Measurement range, voltage L-L, AC: | 480 V |
| Measurement range, voltage L-N, AC: | 277 V |
| Display monitoring: | LCD |
| Input frequency: | <20 Hz |
| Number of digital inputs: | 2 |
| Number of digital outputs: | 2 |
| Sampling frequency 50/60 Hz: | 20 kHz |
| Quadrants: | 4 |
| Type of mounting: | DIN rail |
