2680150000 - 1000A Closed Current Transformer for Indoor Use
2680150000 - 1000A Closed Current Transformer for Indoor Use
SKU: SKU: 2680150000 Download PDF
- 2680150000 - 1000A Closed Current Transformer for Indoor Use
- 2680150000 - 1000A Closed Current Transformer for Indoor Use
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience reliable performance with the CMA-41-1000-5A-5VA-1 closed current transformer With a primary current rating of 1000 A and a maximum secondary output of 5 A, this device is engineered for precision It adheres to RoHS standards, assuring environmental compliance and safety Specifically designed for indoor applications, its dimensions accommodate insulated conductors and various rail sizes, making it a versatile choice for your electrical needs.
Features and Benefits:
•RoHS compliant.
•Indoor use.
•Closed current transformer.
Specifications:
| Primary current | 1,000 A |
| Secondary current | 0...5 A |

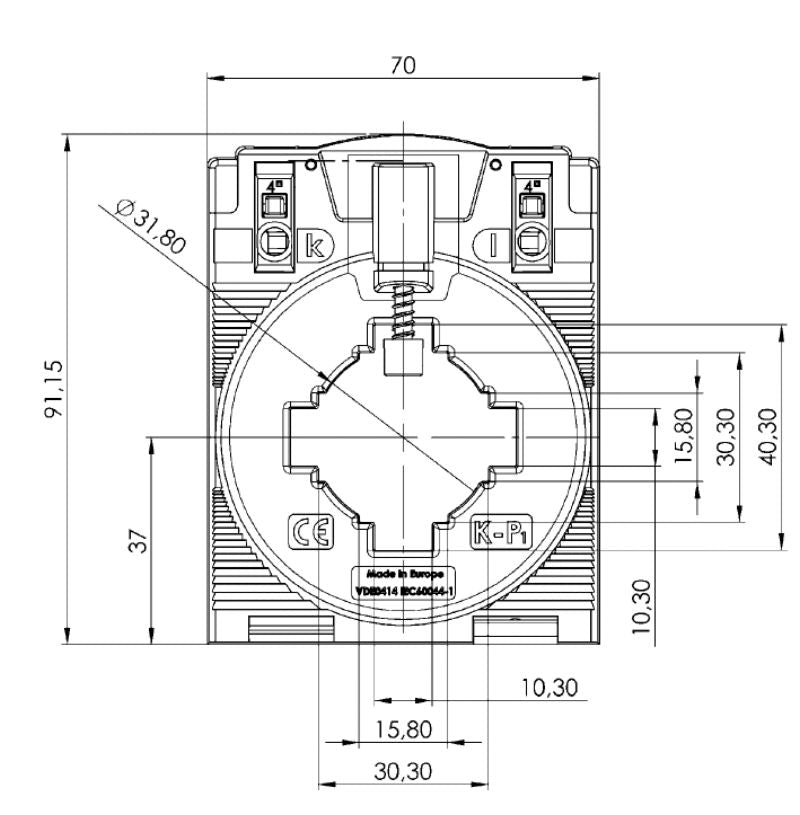

| Dimensions of live conductors | Round conductor 31 mm, Rail 30 x 15 mm, 40 x 10 mm |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Thermal rated continuous current | 1.2 x I rated |
