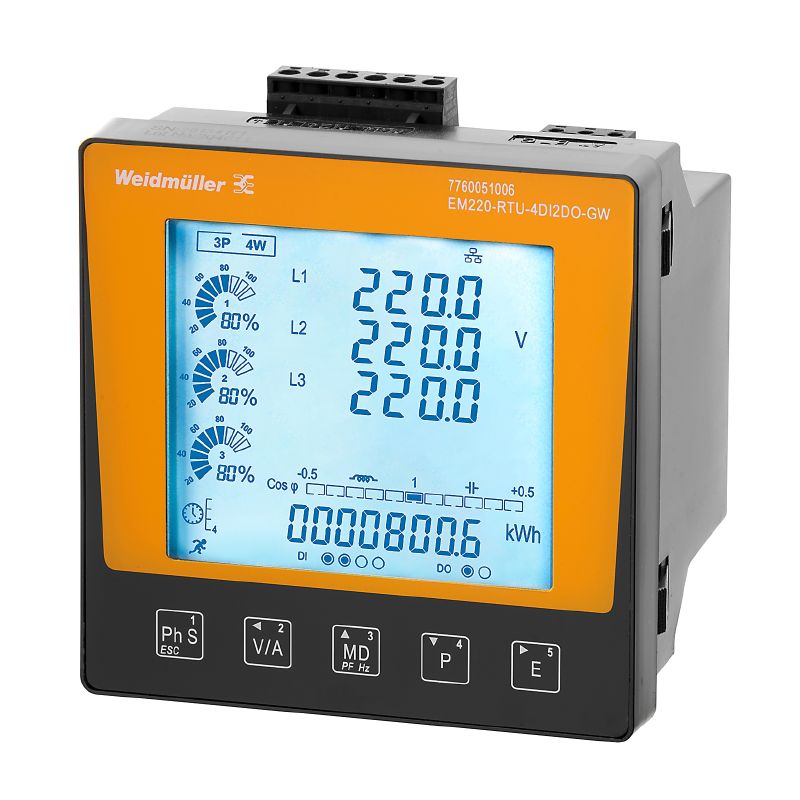

7760051006 - Modbus Gateway for 1-Phase & 3-Phase Power Measurement
7760051006 - Modbus Gateway for 1-Phase & 3-Phase Power Measurement
SKU: SKU: 7760051006 Download PDF
- 7760051006 - Modbus Gateway for 1-Phase & 3-Phase Power Measurement
- 7760051006 - Modbus Gateway for 1-Phase & 3-Phase Power Measurement
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

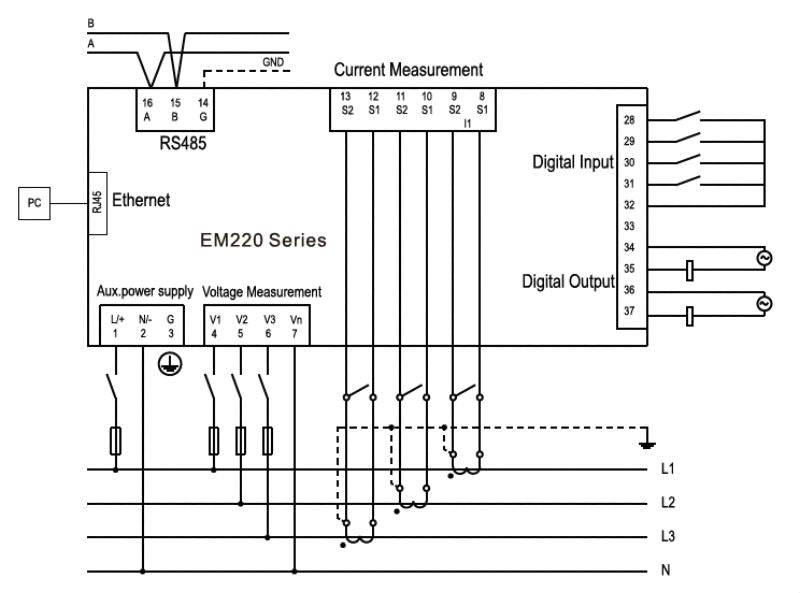

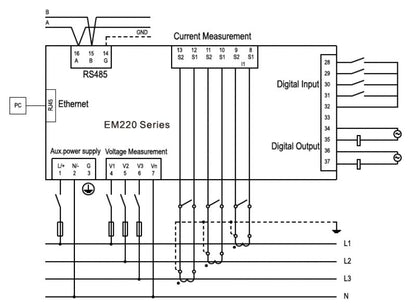

This advanced device offers accurate power measurement and display capabilities for both 1-phase and 3-phase electrical systems It leverages current transformers along with pulse output and digital input/output features Designed as a gateway, it seamlessly integrates with Modbus RTU and Modbus TCP/IP protocols, enhancing your monitoring and control systems.
Features and Benefits:
•RoHS compliant.
•Plastic housing material.

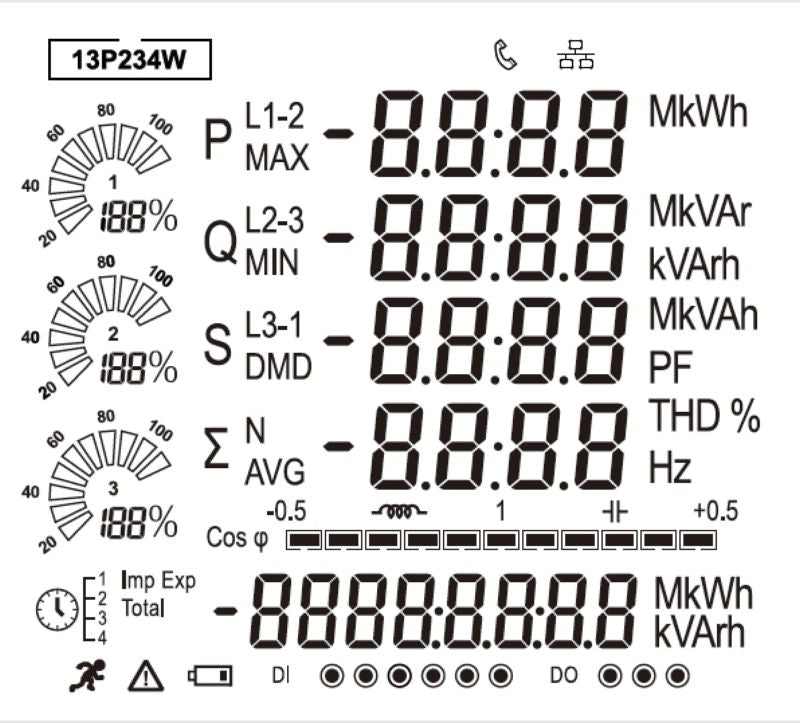

•LCD display for monitoring.
•Configurable digital output.
•Supports measurement notation for voltage, current, power factor, and frequency.
•Allows for various network configurations including single-phase and three-phase systems.
Specifications:

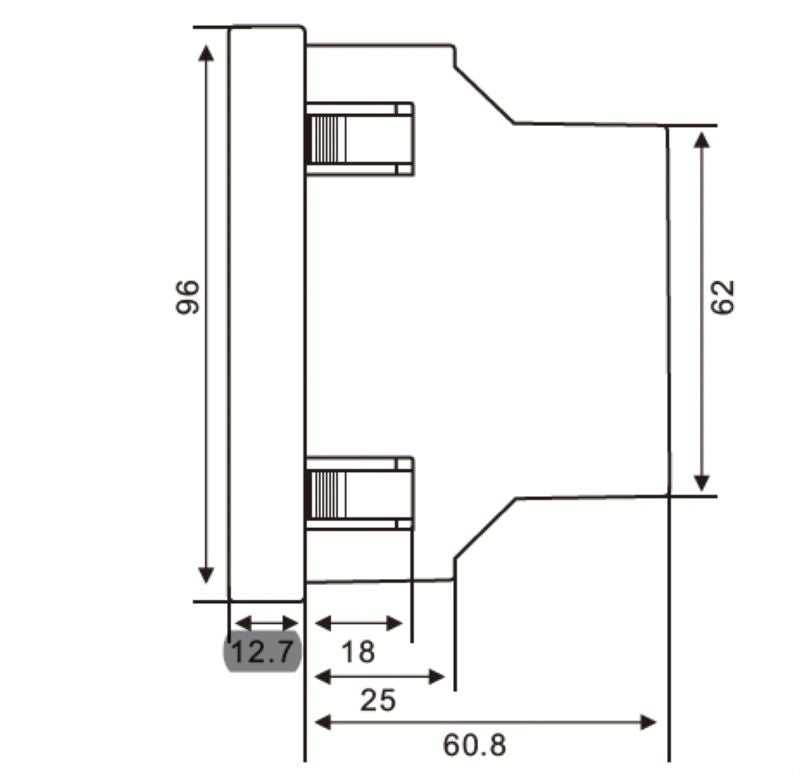

| Dimensions | 96 mm x 96 mm x 74 mm |
| Net weight | 380 g |
| Storage temperature | -40 °C to 70 °C |
| Operating temperature | -25 °C to 55 °C |
| Humidity | 0 to 90% (non-condensing) |
| Max current | 5000 A |
| Measuring accuracy for current | 0.5% |
| Measuring accuracy for voltage | 0.5% |
| Measurement range voltage L-L, AC | 50 to 600 V |
| Measurement range voltage L-N, AC | 50 to 345 V |
| Supply voltage | 75 to 270 V AC, 100 to 380 V DC |
| Sampling frequency | 50/60 Hz |
| Current-measuring channels | 3 |
