Description:

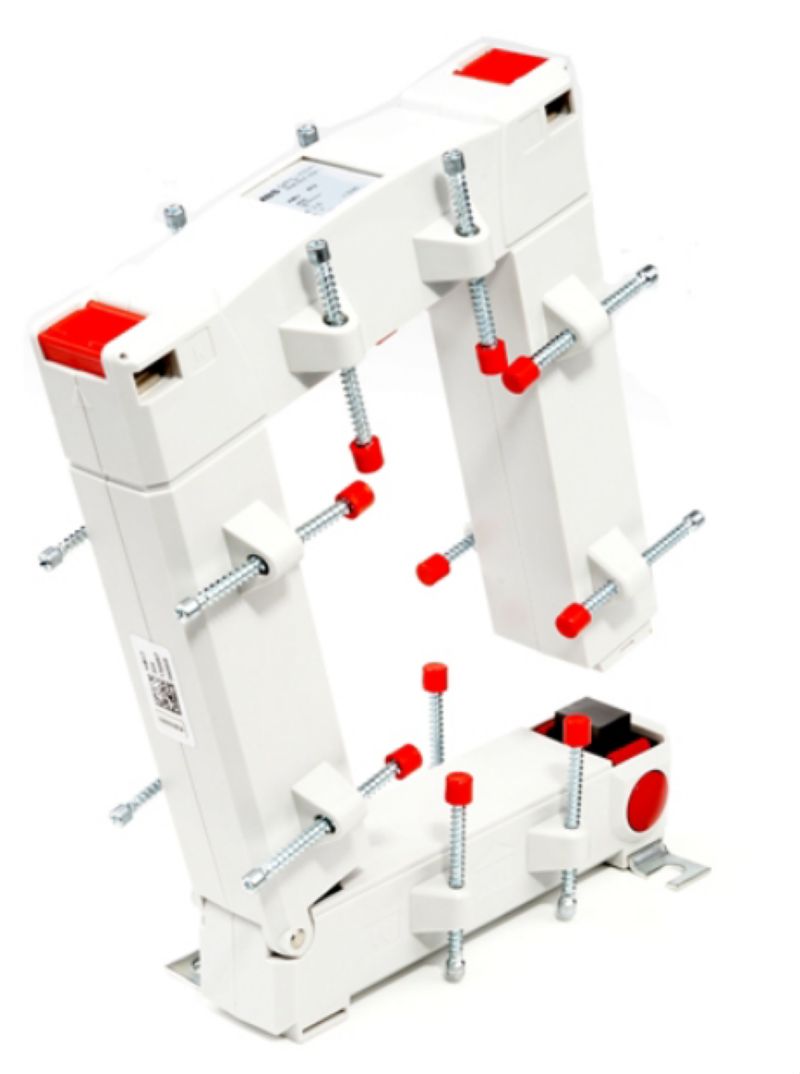

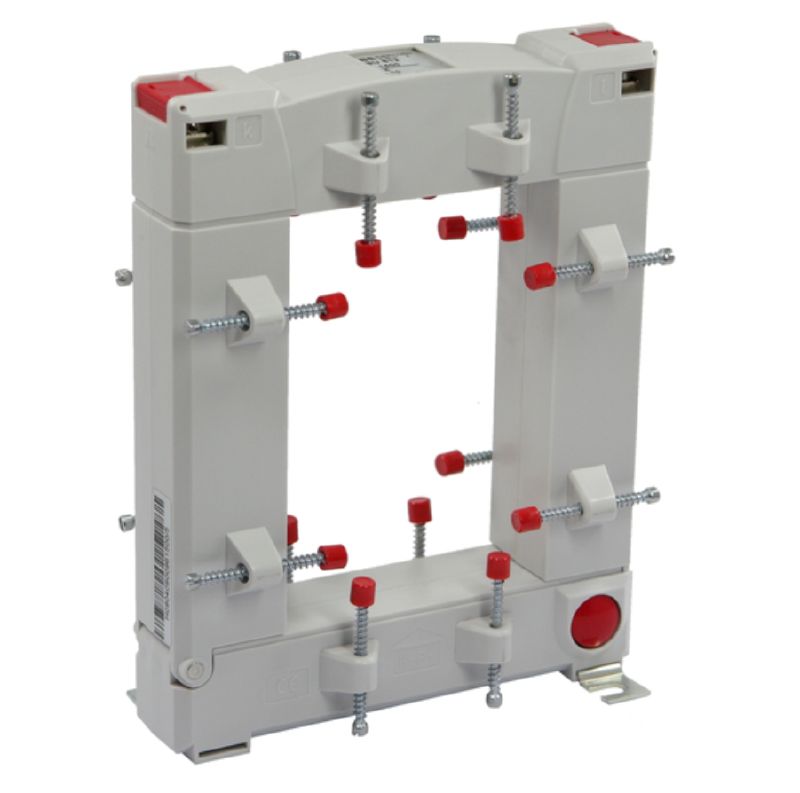

Introducing the KCMA-8-1500-5A-15VA1, a precision-engineered split-core current transformer that excels in accuracy Capable of handling a primary current of up to 1500 A, it delivers a maximum secondary current of 5 A while functioning effectively under a load of 15 VA With a tolerance class rating of 1, this transformer adheres to RoHS standards with no exemptions Its design is optimized for indoor settings, making it an excellent choice for various applications.
Features and Benefits:
•Split-core design for easy installation.
•ROHS compliant.
•Suitable for indoor usage.
Specifications:
| Primary current | 1500 A |
| Secondary current | 0...5 A |
| Load | 15 VA |
| Tolerance class | 1 |

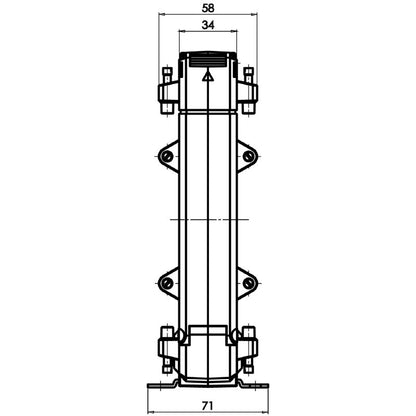

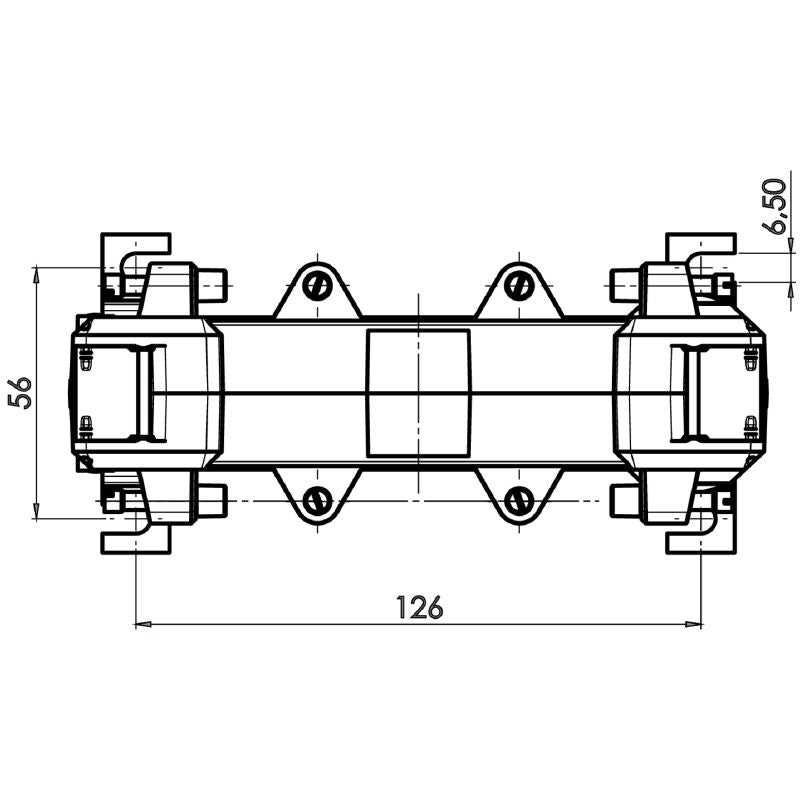

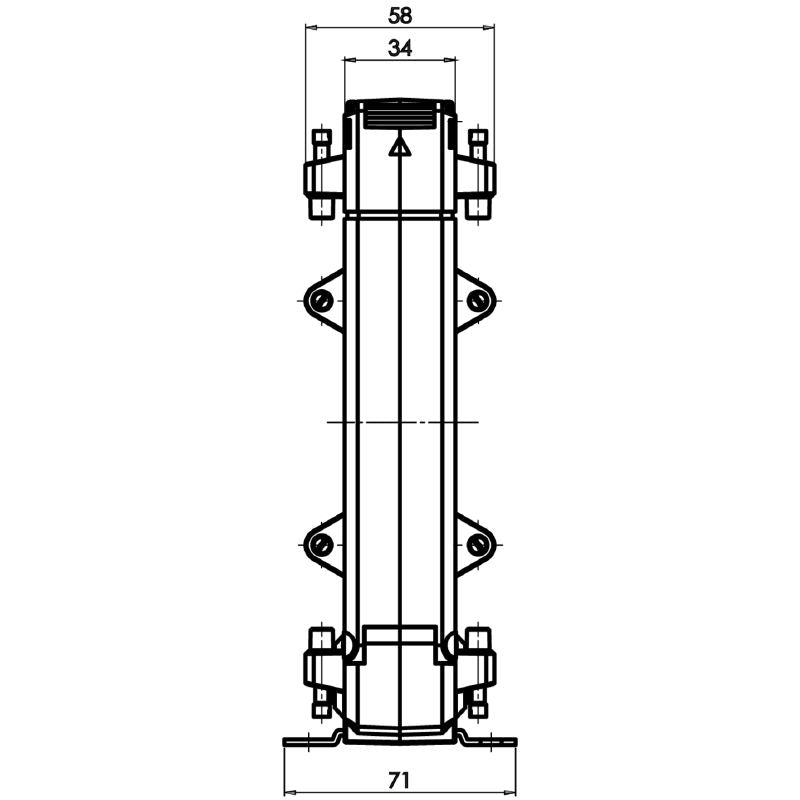

| Depth | 58 mm |

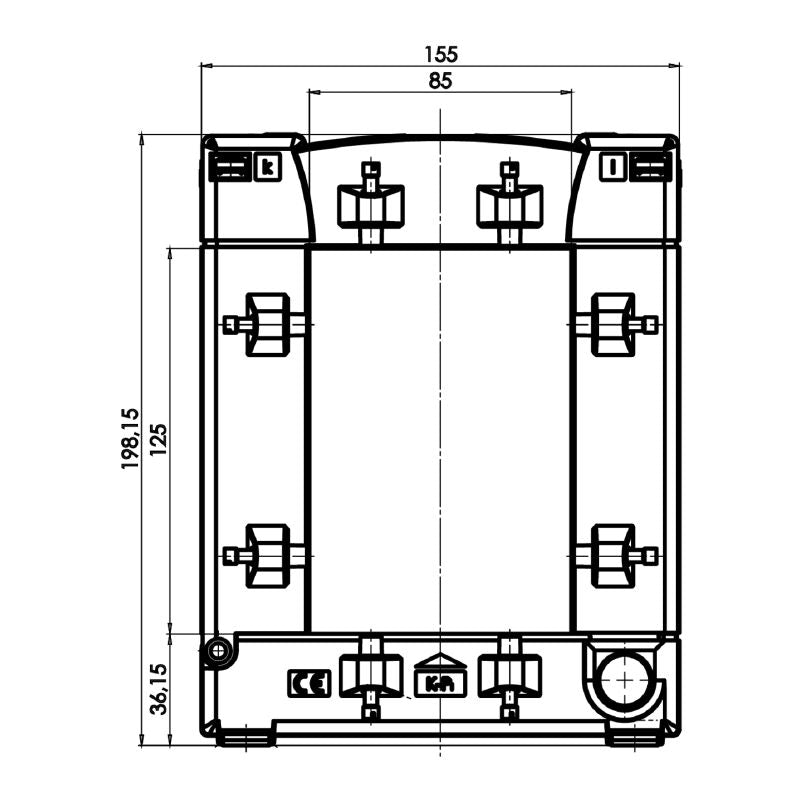

| Height | 198 mm |
| Width | 155 mm |
| Net weight | 1500 g |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Thermal rated continuous current I thermal | 1.2 x I rated |
| Insulation coordination | Standard EN 60044/1 |
