Description:
Introducing the CMA-31-600-5A-5VA-1, a reliable closed current transformer engineered for precision With a primary current capacity of 600 A and a secondary current limit of 5 A, this transformer supports a load of 5 VA It meets tolerance class 1 standards and is compliant with RoHS regulations, ensuring it aligns with safety and environmental guidelines Perfect for various applications, this transformer is a sturdy choice for your electrical needs.
Features and Benefits:
•Indoor use.
•Compliant with RoHS.
•Type of conductor: Insulated conductor only.
Specifications:
| Primary current | 600 A |
| Secondary current | 0...5 A |
| Load | 5 VA |
| Tolerance class | 1 |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Storage temperature | -25 °C...70 °C |
| Operating temperature | -5 °C...50 °C |

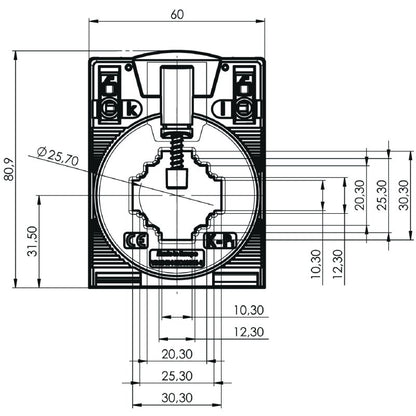

| Depth | 52 mm |
| Height | 80.9 mm |
| Width | 60 mm |
| Net weight | 230 g |
| Rail | 20 x 20 mm, 25 x 12 mm, 30 x 10 mm |
| Insulation coordination Standard | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| ETIM 6.0 | EC002048 |
| ETIM 7.0 | EC002048 |
| ETIM 8.0 | EC002048 |
| ETIM 9.0 | EC002048 |
| ETIM 10.0 | EC002048 |
| ECLASS 9.0 | 27-21-09-02 |
| ECLASS 9.1 | 27-21-09-02 |
| ECLASS 10.0 | 27-21-09-02 |
| ECLASS 11.0 | 27-21-09-02 |
| ECLASS 12.0 | 27-21-09-02 |
| ECLASS 13.0 | 27-21-09-02 |
| ECLASS 14.0 | 27-21-09-02 |
| ECLASS 15.0 | 27-21-09-02 |
