Description:

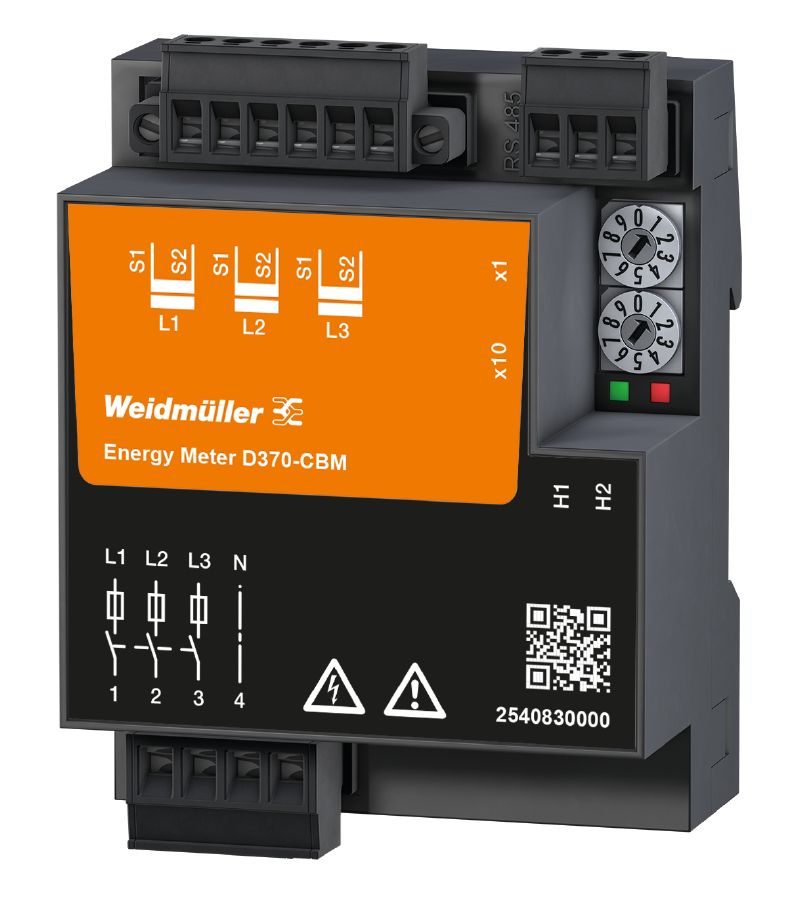

Introducing the ENERGY METER D370-CBM, a versatile solution for accurately measuring and displaying electrical power in both single-phase and three-phase systems With essential certifications including CE, RoHS, and cULus (certificate no E469563), this meter ensures reliability and safety It features three channels for current measurement, accommodating up to 5000 A and boasting an impressive measurement accuracy of 0.
2% for both current and voltage readings Designed for a four-wire configuration, it allows for comprehensive monitoring of harmonic distortion in current and voltage Additionally, the device operates efficiently within a temperature range of -25 °C to 60 °C, making it suitable for various environments.
Features and Benefits:
•Complies with RoHS without exemptions.
•Records measurement data with a memory size of 4 MB for up to 160,000 values.
•Noise immunity standards according to DIN EN 61000.
•DIN rail mounting for easy installation.
Specifications:

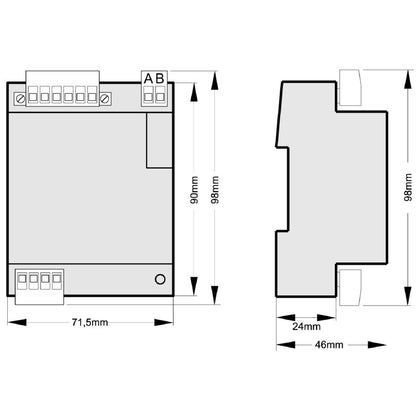

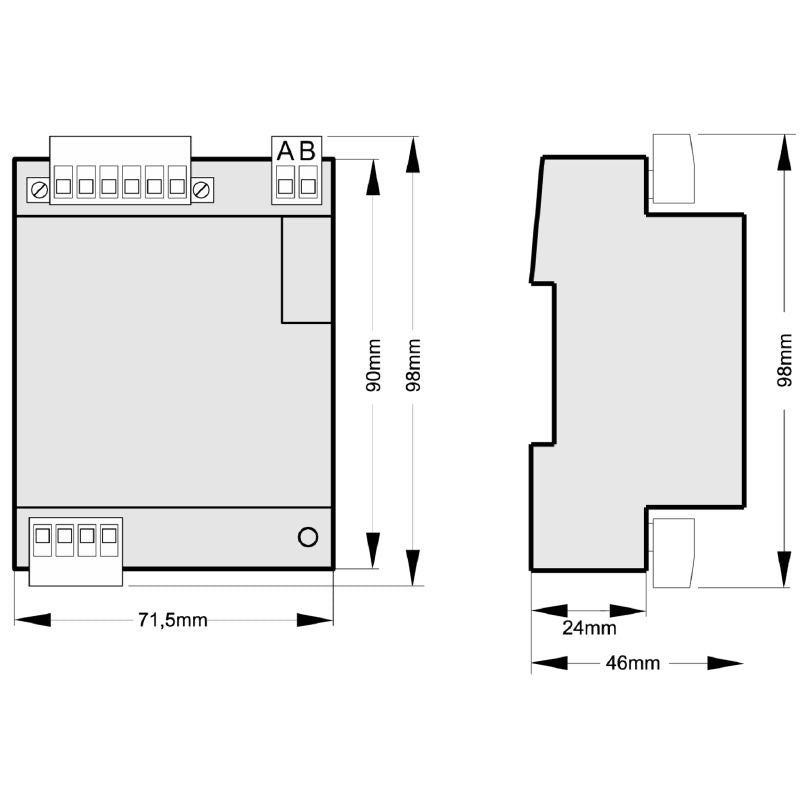

| Dimensions (Depth x Height x Width) | 71.6 mm x 98 mm x 46 mm |
| Storage temperature | -20 °C to 70 °C |
| Operating temperature | -25 °C to 60 °C |
| Humidity at operating temperature | 5% to 95% RH |
| Max. current | 5000 A |
| Rated current | 1 / 5 A |
| Protection degree | IP20 |
| Sampling frequency | 5.4 kHz |
| Harmonics (current) | 1-25 odd |
| Harmonics (voltage) | 1-25 odd |
| Surge voltage category | 300 V CAT III |
| Measuring current input | 3 channels |
| Measuring accuracy for current | 0.2% |
| Measuring accuracy for voltage | 0.2% |
| Communication interface | RS485: 9.6 – 115.2 kbps |
| Protocol | Modbus RTU |
