Description:

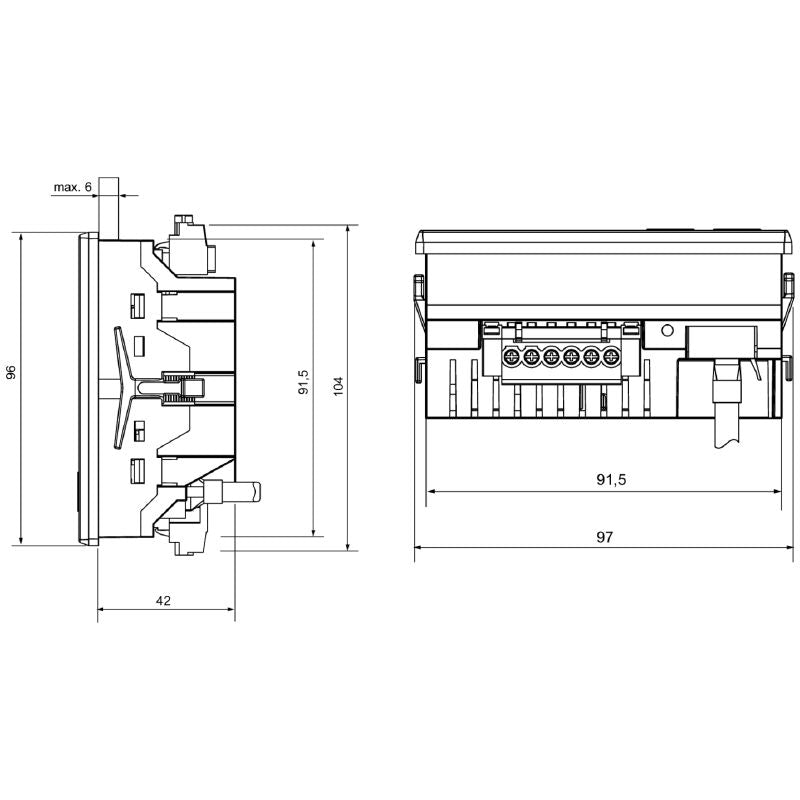

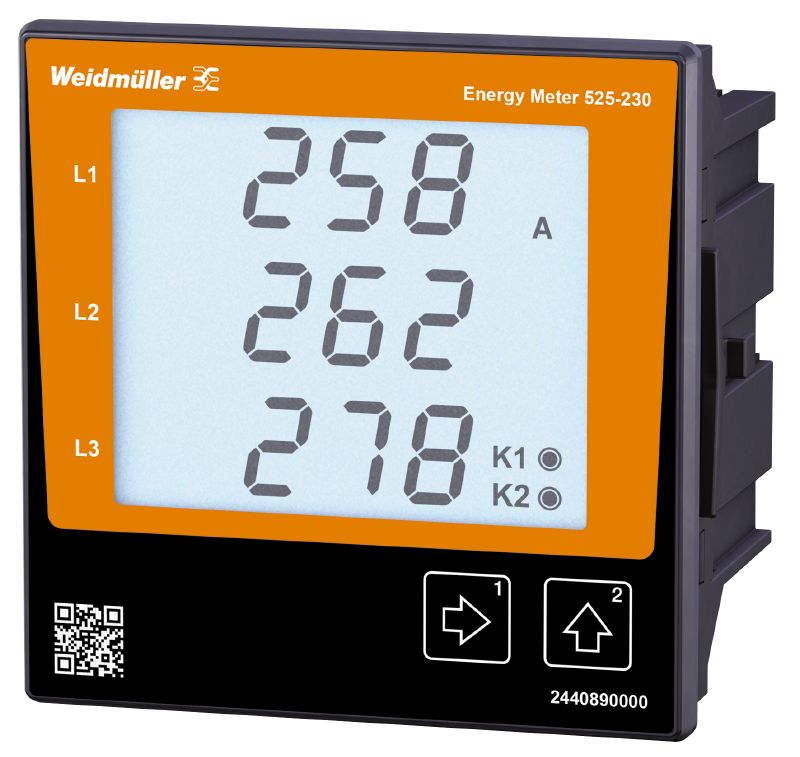

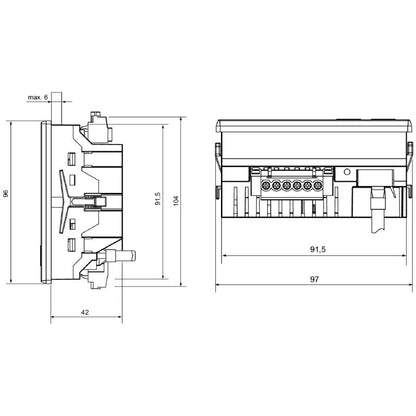

Monitor your energy consumption effortlessly with the ENERGY METER 525-230, engineered for both single-phase and three-phase power measurement This device adheres to CE and RoHS regulations and proudly holds a UL certification (cULus) number E469563 Its sleek design allows for front panel installation, featuring a compact build with dimensions of 48 mm (depth), 96 mm (height), and 96 mm (width) The ENERGY METER is designed to function optimally in various environments, offering a storage temperature range of -25 °C to 70 °C, while operating effectively between -10 °C and 55 °C.
Features and Benefits:
•Compliant with RoHS and has a cULus certification.
•Power measurement display for single and three-phase systems.

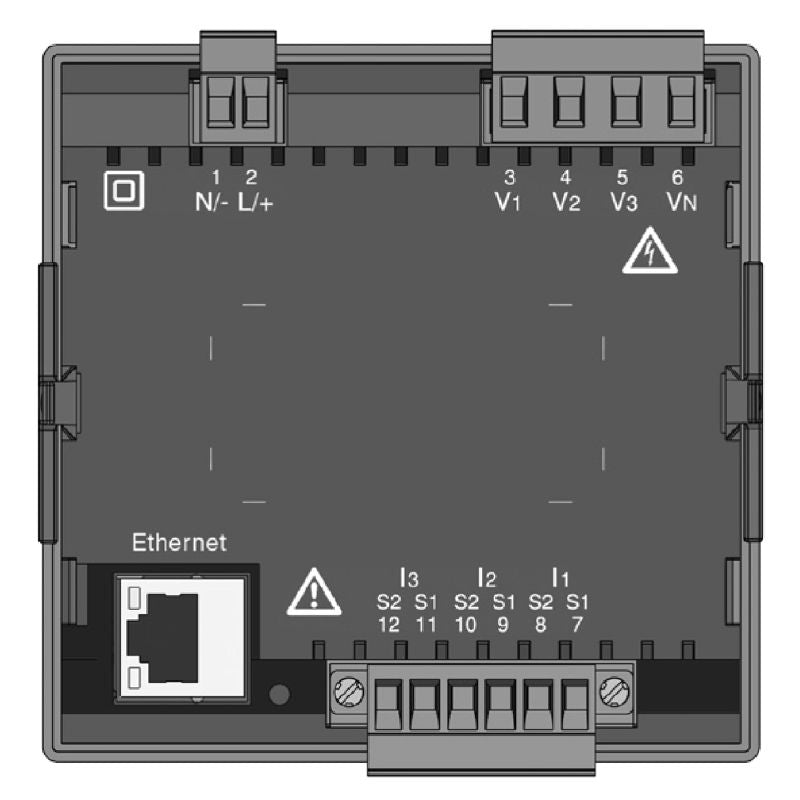

•Supports communication via Ethernet and Modbus protocols.
•Display monitoring through an LCD interface.
•Can handle a maximum current of 5000 A.
Specifications:
| Depth | 48 mm |
| Height | 96 mm |
| Width | 96 mm |
| Net weight | 250 g |
| Storage temperature | -25 °C...70 °C |
| Operating temperature | -10 °C...55 °C |
| Max. current | 5000 A |
| Rated current | 1 / 5 A |
| Harmonics, per order / current | 1.-40. |
| Harmonics, per order / voltage | 1.-40. |
| Supply voltage | 90 - 277 V AC (50/60 Hz) / 230 V / 90 - 250 V DC |
| Measurement range, voltage L-L, AC | 480 V |
| Measurement range, voltage L-N, AC | 277 V |
| Measuring accuracy for current | 0.2 % |
| Measuring accuracy for voltage | 0.2 % |
| Measurement accuracy for active energy (kWh, .../5 A) | Class 0.5S |
| Protection degree | IP40 |
| Interface | Ethernet |
| Protocol | Modbus/TCP, Modbus RTU over Ethernet |
| Quadrants | 4 |
| Continuous measurements | Yes |
| Measurement result per second | 5 ms |
