2680240000 - RoHS Compliant 2000A Closed Current Transformer, Indoor Use
2680240000 - RoHS Compliant 2000A Closed Current Transformer, Indoor Use
SKU: SKU: 2680240000 Download PDF
- 2680240000 - RoHS Compliant 2000A Closed Current Transformer, Indoor Use
- 2680240000 - RoHS Compliant 2000A Closed Current Transformer, Indoor Use
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

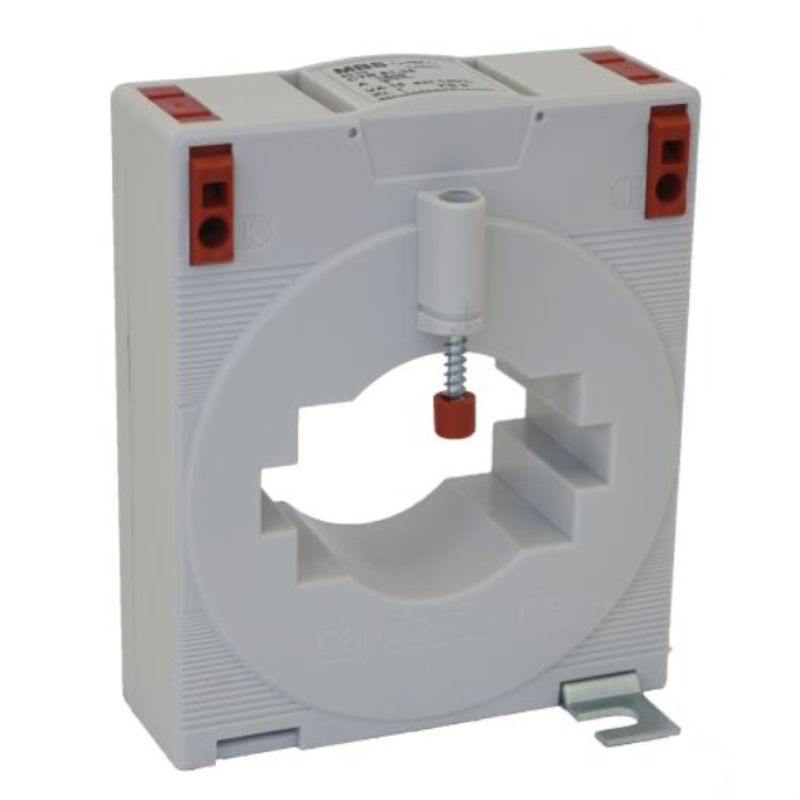

Introducing the CMA-81-2000-5A-10VA-05, a robust closed current transformer with an impressive primary current capacity of 2000 A and a secondary current limit of 5 A This device is ideal for indoor applications and adheres to RoHS regulations, guaranteeing it contains no hazardous substances Additionally, it is designed with insulation to protect live conductors, enhancing safety in your electrical setups.
Features and Benefits:
•RoHS compliant.
•Designed for indoor installation.
•Insulated conductor type only.
Specifications:
| Primary current | 2000 A |
| Secondary current | 0...5 A |

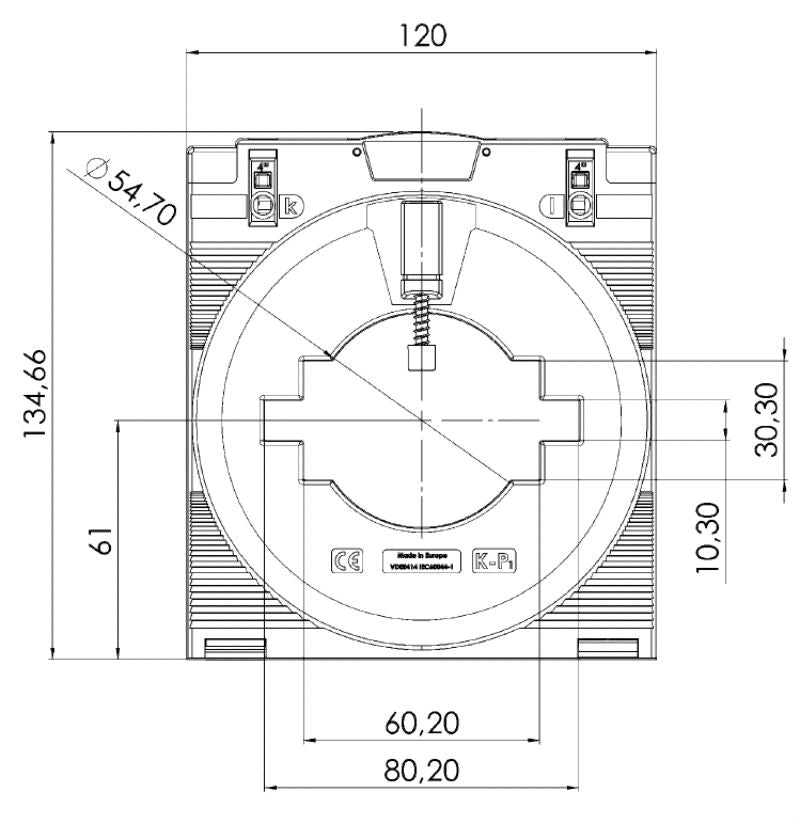

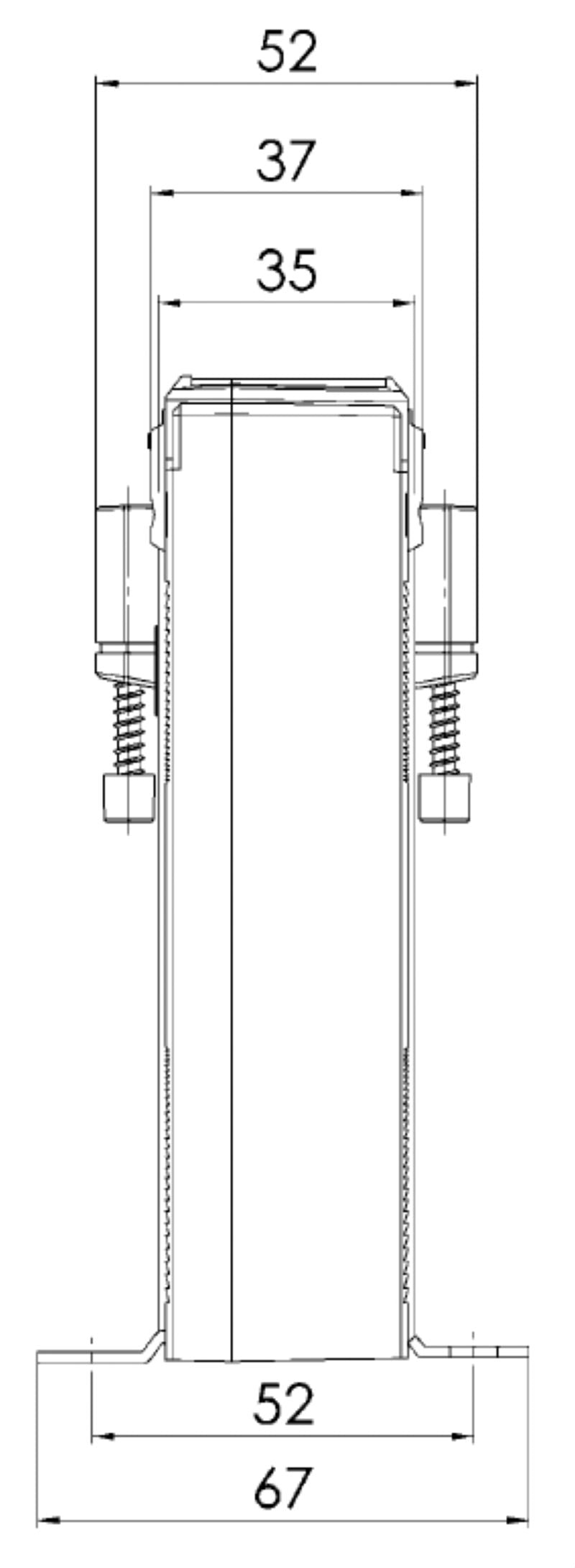

| Dimensions (Length) | 134 mm |
| Length (inches) | 5.276 inch |
| Protection degree | IP20 |
| Nominal frequency | 50 Hz |
