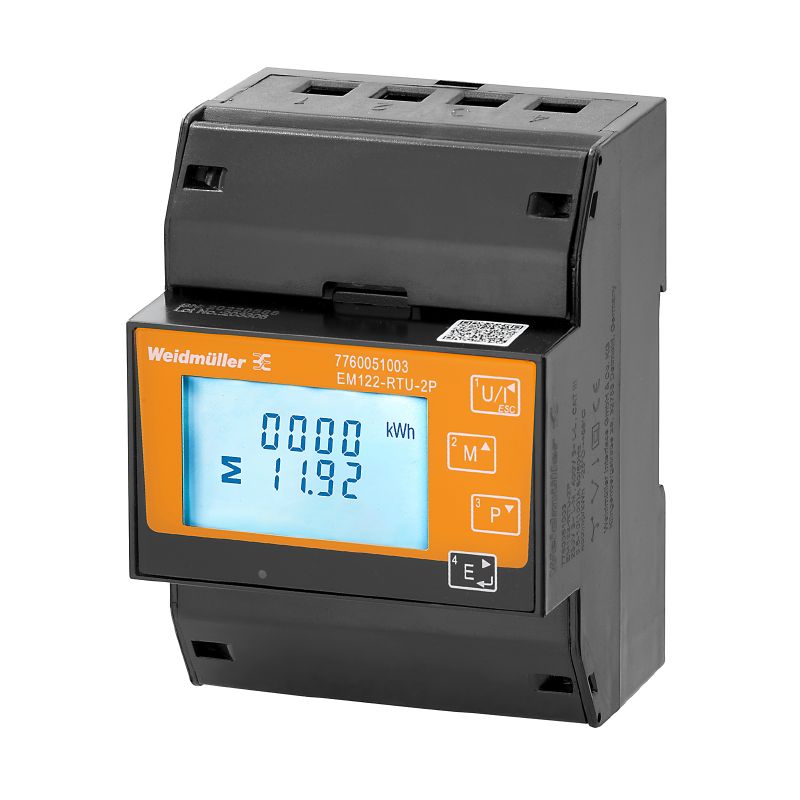

Description:

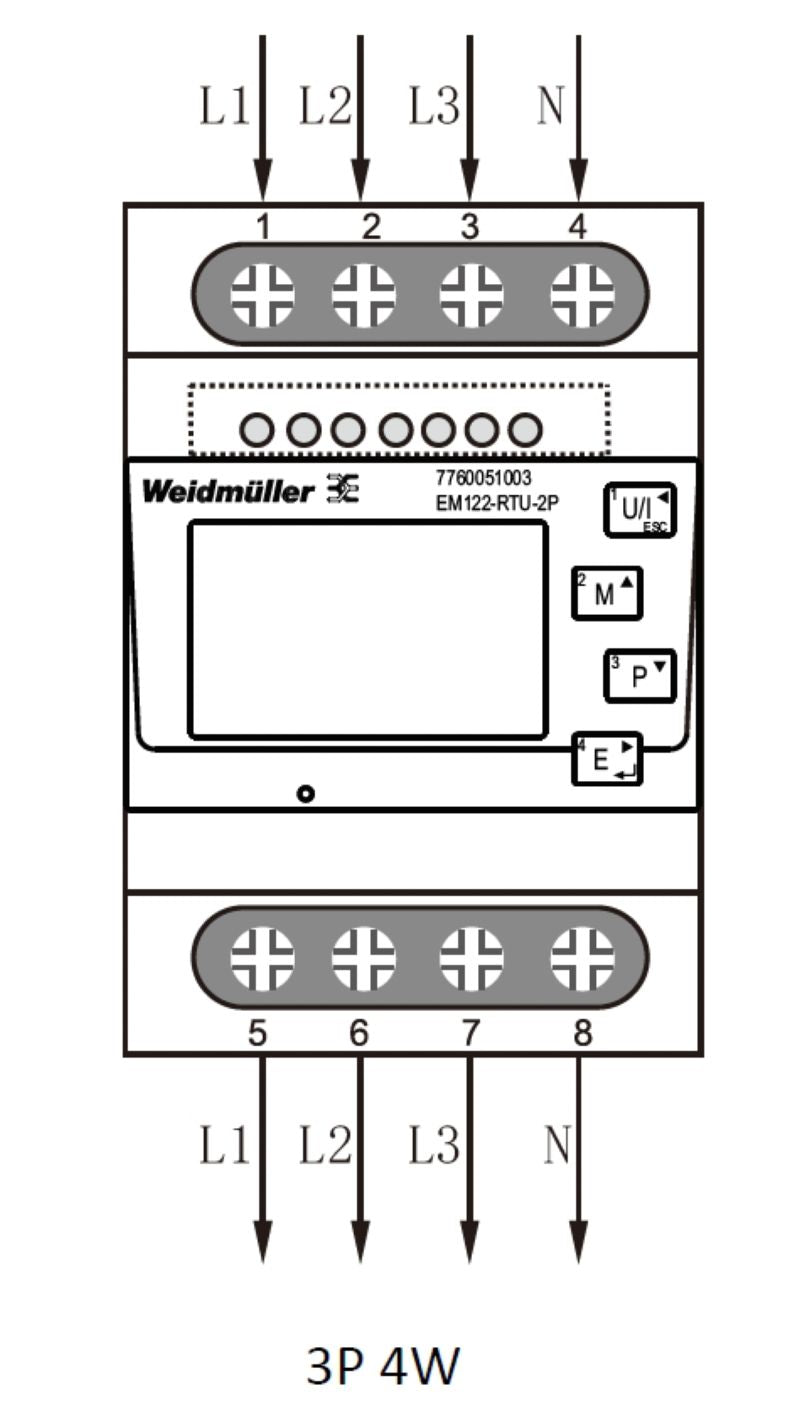

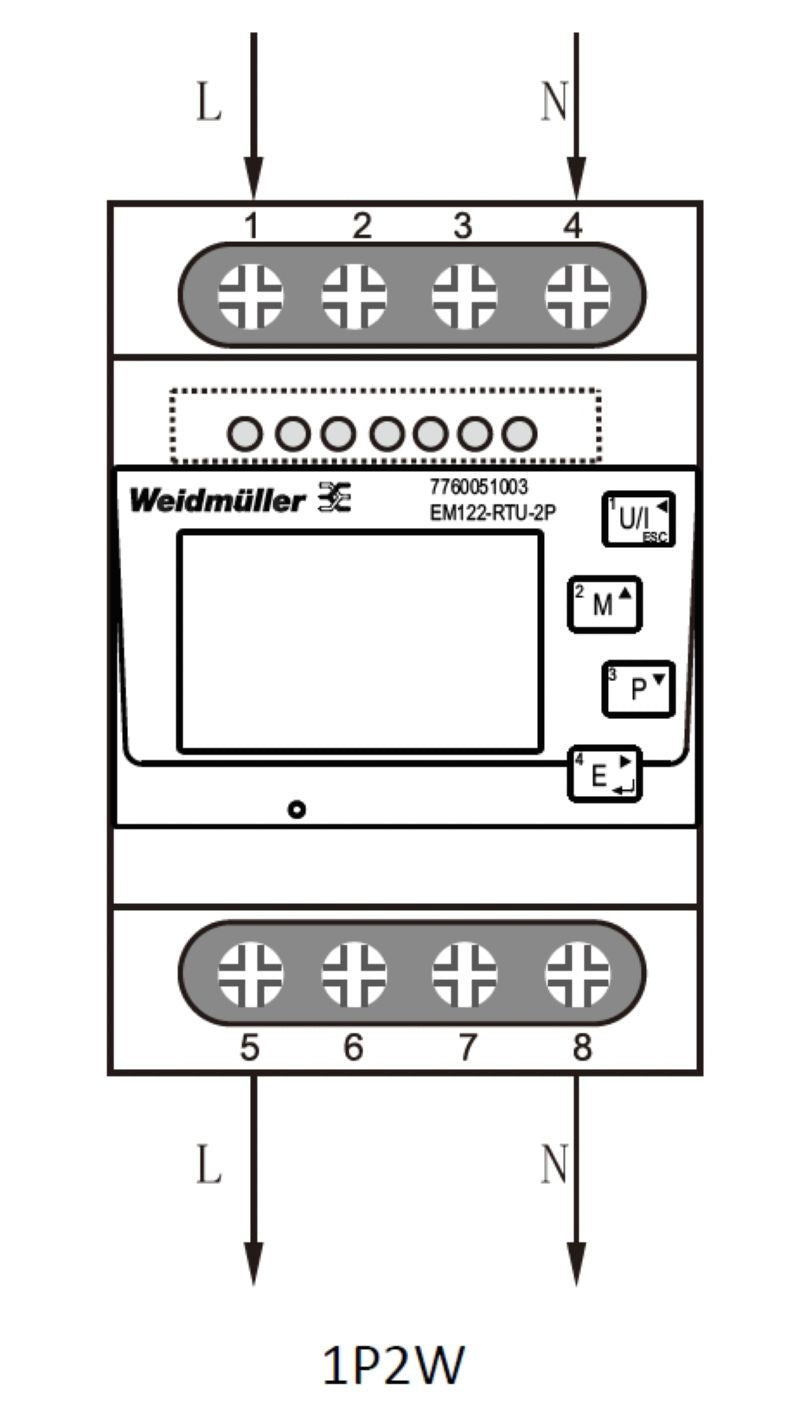

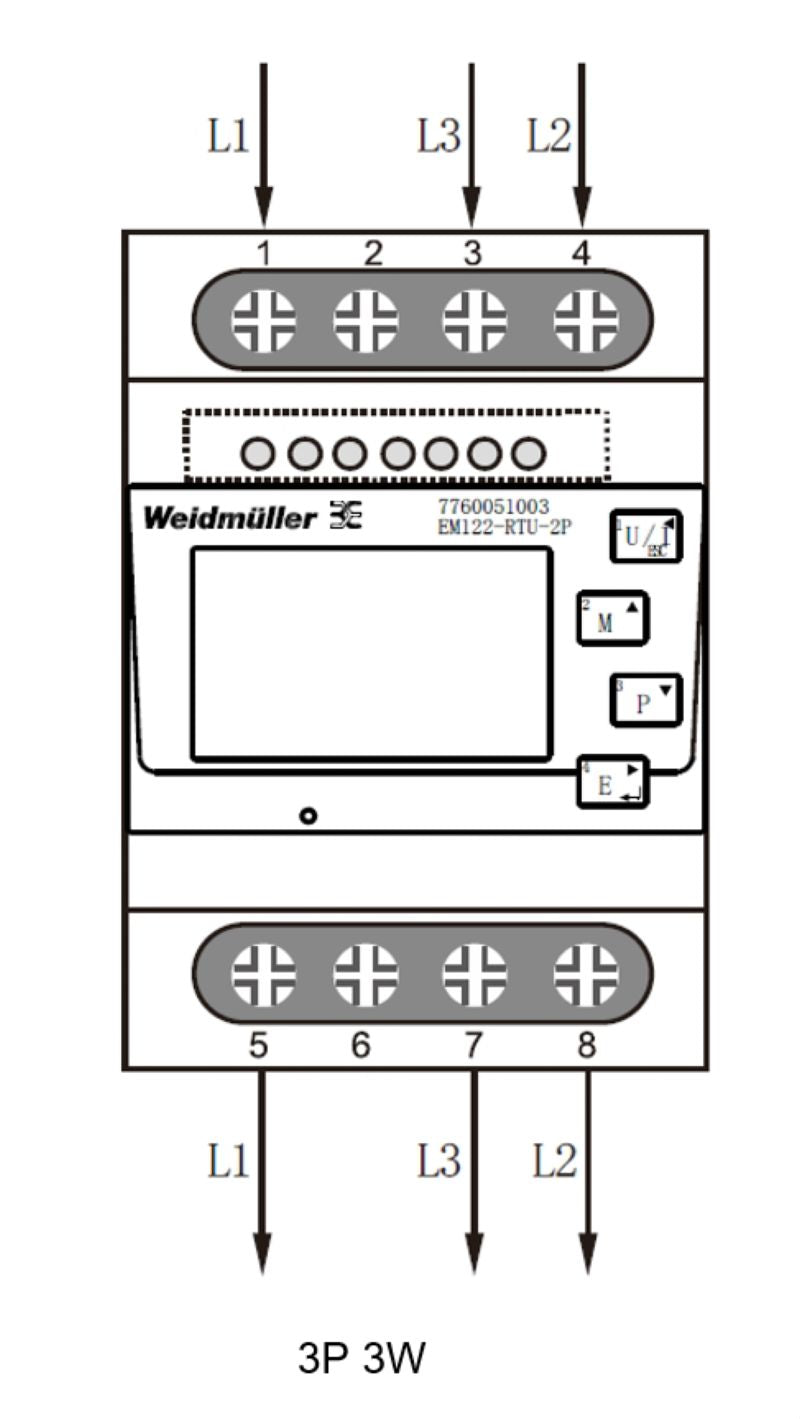

Introducing a versatile power measurement and display device, ideal for both single-phase and three-phase mains This device accurately measures current up to 100 A and features pulse output signals alongside Modbus RTU communication capabilities With its compliance with RoHS standards, this unit is designed to operate effectively across a wide temperature range, making it a reliable choice for various applications.
Features and Benefits:
•Three current measuring channels.
•Configuration for digital outputs.
•Bi-directional communication.

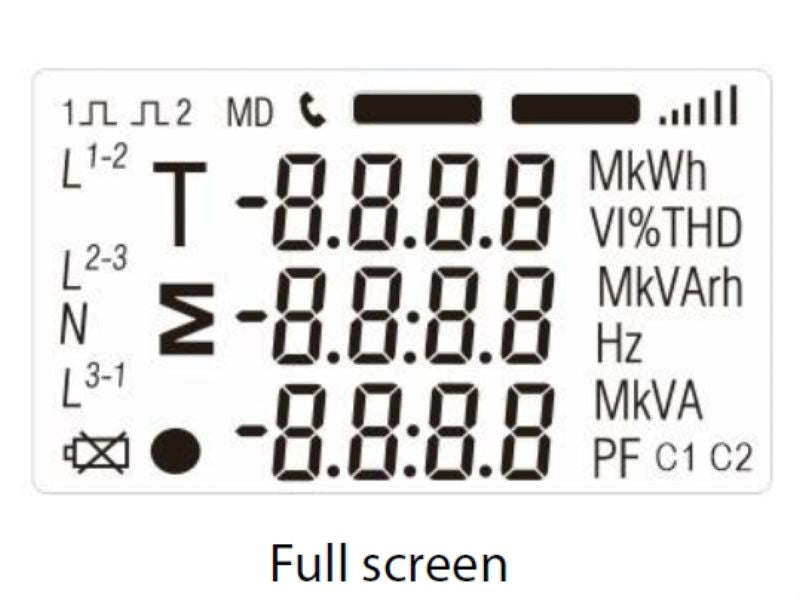

•LCD display for monitoring voltage and current values.
•Class 0.5 measurement accuracy for active energy.
Specifications:

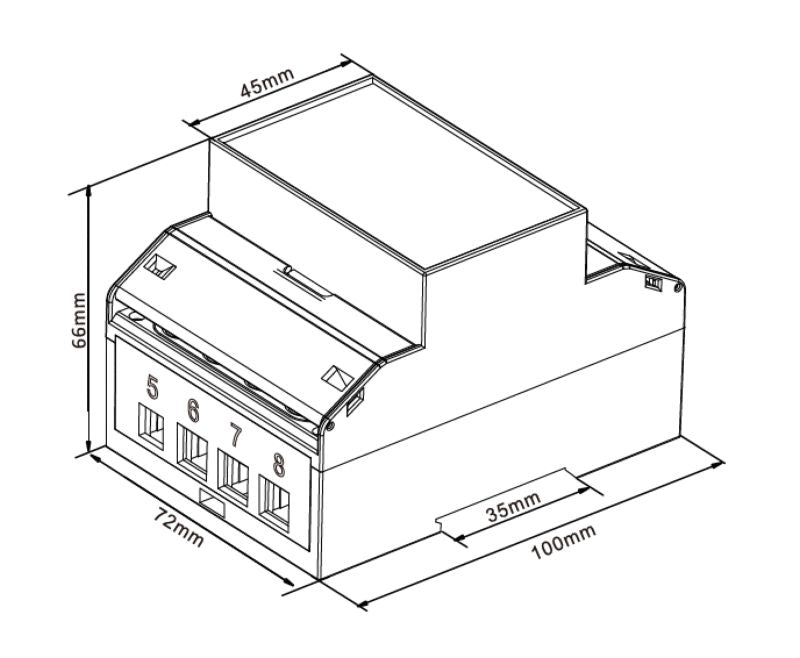

| Depth | 66 mm |
| Height | 100 mm |
| Width | 72 mm |
| Net weight | 350 g |
| Storage temperature | -40 °C...80 °C |
| Operating temperature | -25 °C...55 °C |
| Humidity | 0...90 % (no condensation) |
| Max. current | 100 A |
| Rated current | 10 A |
| Display | LCD |
| Sampling frequency 50/60 Hz | 4.1 kHz |
| Measurement range, voltage L-L, AC | 240…480 V |
| Measurement range, voltage L-N, AC | 176…276 V |
| Measuring accuracy for voltage | 0.5 % |
| Measuring accuracy for current | 0.5 % |
| Power factor input | 1 % |
| Protection degree | IP51 |
| Type of mounting | DIN rail |
| Connection data | Screw connection |
