1482080000 - Indoor Closed Current Transformer, 750A, 5A, RoHS Compliant
1482080000 - Indoor Closed Current Transformer, 750A, 5A, RoHS Compliant
SKU: SKU: 1482080000 Download PDF
- 1482080000 - Indoor Closed Current Transformer, 750A, 5A, RoHS Compliant
- 1482080000 - Indoor Closed Current Transformer, 750A, 5A, RoHS Compliant
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

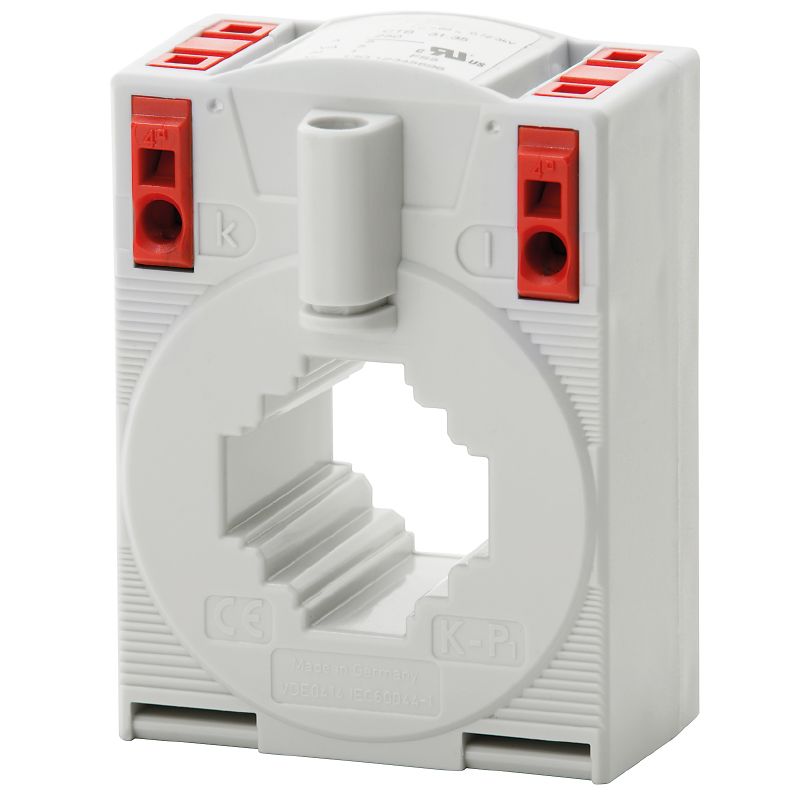

Discover the CMA-31-750-5A-5VA-05, a versatile closed current transformer perfect for indoor applications It supports a primary current of 750 A and a secondary maximum of 5 A, with a load capacity of 5 VA This model boasts a tolerance class of 05, ensuring reliable performance Designed with compliance to RoHS standards, it contains no substances of very high concern (SVHC) above 01 wt% It operates efficiently in temperatures ranging from -5 °C to 50 °C and can be safely stored between -25 °C and 70 °C.
Features and Benefits:
•Indoor use.
•Compliant with RoHS without exemption.
•Insulation class E.
Specifications:

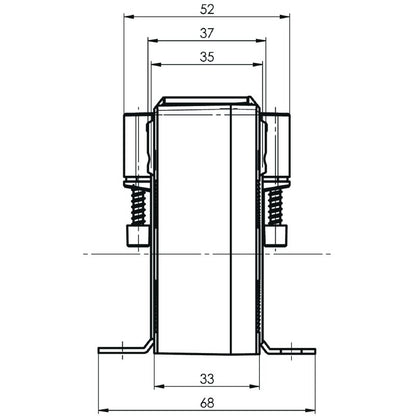

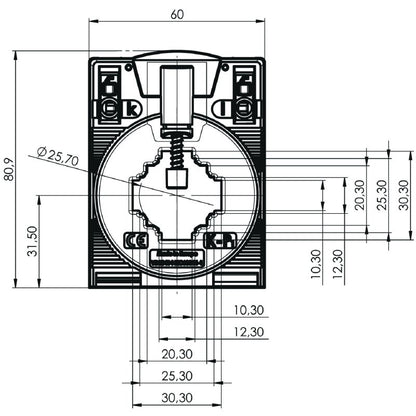

| Depth | 52 mm |
| Height | 80.9 mm |
| Width | 60 mm |
| Primary current | 750 A |
| Secondary current | 0...5 A |
| Load | 5 VA |
| Tolerance class | 0.5 |
| Nominal frequency | 50 Hz |
| Insulation coordination | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| Thermal rated continuous current I thermal | 1.2 x I rated |
| Round conductor | 25.7 mm |
| Installation location | Indoor use |
