2420980000 - 400A Closed Current Transformer, RoHS Compliant, 5VA Load
2420980000 - 400A Closed Current Transformer, RoHS Compliant, 5VA Load
SKU: SKU: 2420980000 Download PDF
- 2420980000 - 400A Closed Current Transformer, RoHS Compliant, 5VA Load
- 2420980000 - 400A Closed Current Transformer, RoHS Compliant, 5VA Load
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the CMA-31-400-5A-5VA-05, a reliable closed current transformer tailored for diverse electrical applications With a primary current capacity of 400 A, it efficiently supports a maximum secondary current of 5 A This transformer also boasts a load capability of 5 VA and adheres to a tolerance class of 05 Fully compliant with RoHS regulations, it’s a practical choice for your electrical needs.
Features and Benefits:
•Compliant with RoHS standards.
•Suitable for indoor use.
•Designed for insulated conductors only.
Specifications:

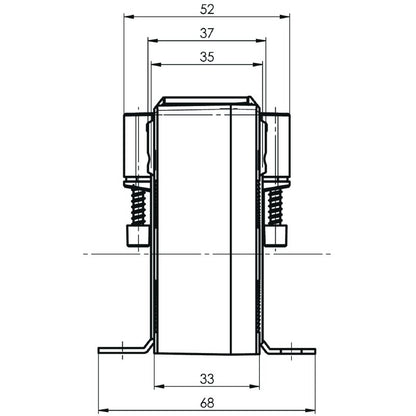

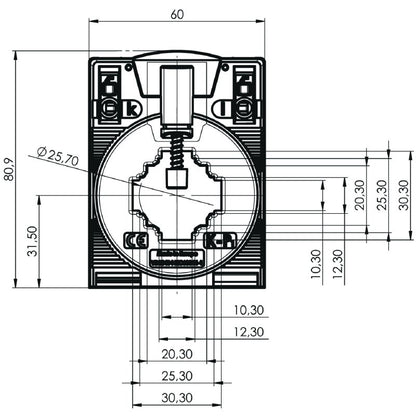

| Depth | 52 mm |
| Height | 80.9 mm |
| Width | 60 mm |
| Storage temperature | -25 °C...70 °C |
| Operating temperature | -5 °C...50 °C |
| Load | 5 VA |
| Primary current | 400 A |
| Secondary current | 0...5 A |
| Tolerance class | 0,5 |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Thermal rated continuous current I thermal | 1.2 x I rated |
| Insulation coordination Standard | IEC 61869-1: 2007, IEC 61869-2: 2012 |
